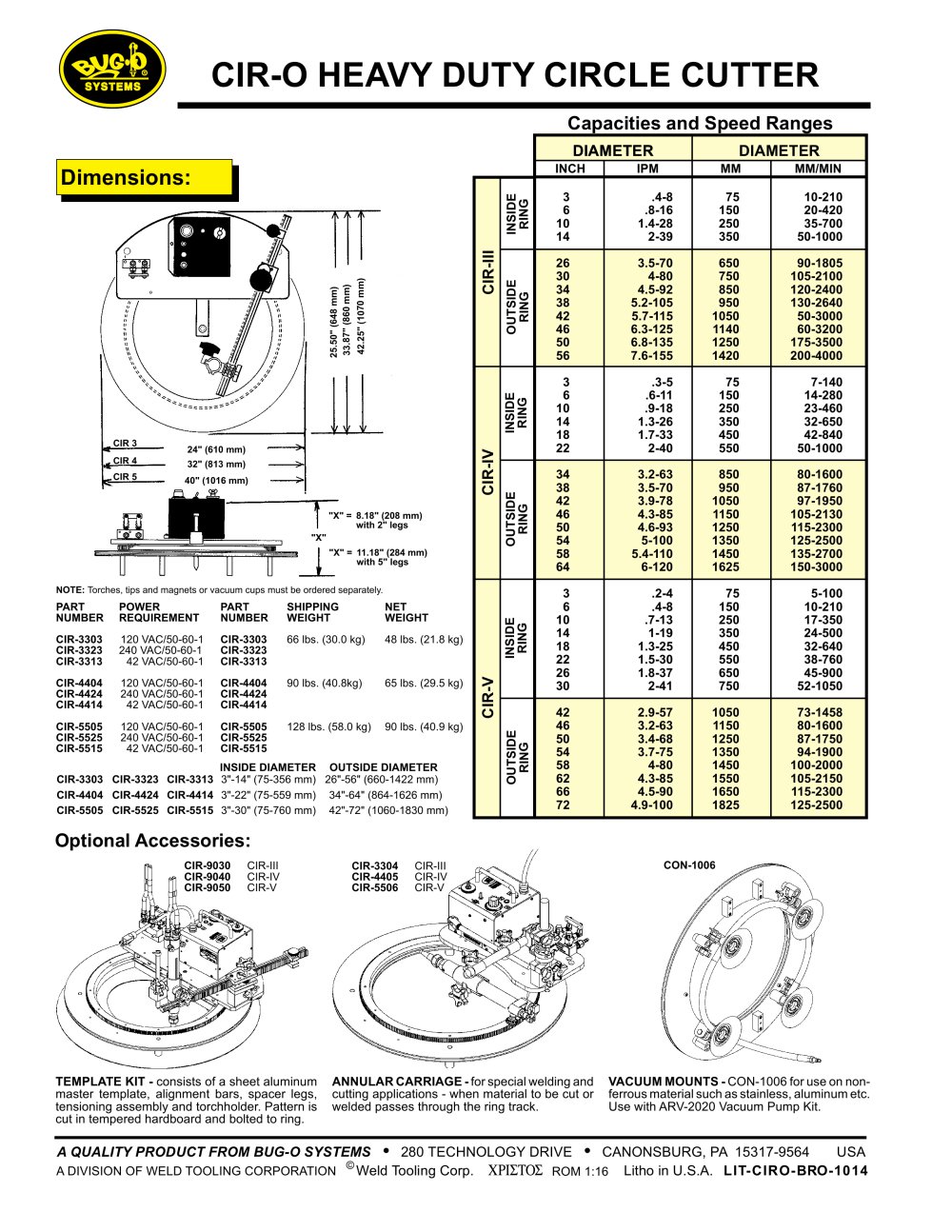

CIR-O HEAVY DUTY CIRCLE CUTTER Dimensions: TEMPLATE KIT - consists of a sheet aluminum master template, alignment bars, spacer legs, tensioning assembly and torchholder. Pattern is cut in tempered hardboard and bolted to ring. ANNULAR CARRIAGE - for special welding and cutting applications - when material to be cut or welded passes through the ring track. CIR 3 CIR 4 CIR 5 24" (610 mm) 32" (813 mm) 40" (1016 mm) 25.50" (648 mm) 33.87" (860 mm) 42.25" (1070 mm) "X" "X" = 8.18" (208 mm) with 2" legs "X" = 11.18" (284 mm) with 5" legs NOTE: Torches, tips and magnets or vacuum cups must be ordered separately. PART POWER PART SHIPPING NET NUMBER REQUIREMENT NUMBER WEIGHT WEIGHT CIR-3303 120 VAC/50-60-1 CIR-3303 66 lbs. (30.0 kg) 48 lbs. (21.8 kg) CIR-3323 240 VAC/50-60-1 CIR-3323 CIR-3313 42 VAC/50-60-1 CIR-3313 CIR-4404 120 VAC/50-60-1 CIR-4404 90 lbs. (40.8kg) 65 lbs. (29.5 kg) CIR-4424 240 VAC/50-60-1 CIR-4424 CIR-4414 42 VAC/50-60-1 CIR-4414 CIR-5505 120 VAC/50-60-1 CIR-5505 128 lbs. (58.0 kg) 90 lbs. (40.9 kg) CIR-5525 240 VAC/50-60-1 CIR-5525 CIR-5515 42 VAC/50-60-1 CIR-5515 INSIDE DIAMETER OUTSIDE DIAMETER CIR-3303 CIR-3323 CIR-3313 3"-14" (75-356 mm) 26"-56" (660-1422 mm) CIR-4404 CIR-4424 CIR-4414 3"-22" (75-559 mm) 34"-64" (864-1626 mm) CIR-5505 CIR-5525 CIR-5515 3"-30" (75-760 mm) 42"-72" (1060-1830 mm) Optional Accessories: 3 .4-8 75 10-210 6 .8-16 150 20-420 10 1.4-28 250 35-700 14 2-39 350 50-1000 26 3.5-70 650 90-1805 30 4-80 750 105-2100 34 4.5-92 850 120-2400 38 5.2-105 950 130-2640 42 5.7-115 1050 50-3000 46 6.3-125 1140 60-3200 50 6.8-135 1250 175-3500 56 7.6-155 1420 200-4000 3 .3-5 75 7-140 6 .6-11 150 14-280 10 .9-18 250 23-460 14 1.3-26 350 32-650 18 1.7-33 450 42-840 22 2-40 550 50-1000 34 3.2-63 850 80-1600 38 3.5-70 950 87-1760 42 3.9-78 1050 97-1950 46 4.3-85 1150 105-2130 50 4.6-93 1250 115-2300 54 5-100 1350 125-2500 58 5.4-110 1450 135-2700 64 6-120 1625 150-3000 3 .2-4 75 5-100 6 .4-8 150 10-210 10 .7-13 250 17-350 14 1-19 350 24-500 18 1.3-25 450 32-640 22 1.5-30 550 38-760 26 1.8-37 650 45-900 30 2-41 750 52-1050 42 2.9-57 1050 73-1458 46 3.2-63 1150 80-1600 50 3.4-68 1250 87-1750 54 3.7-75 1350 94-1900 58 4-80 1450 100-2000 62 4.3-85 1550 105-2150 66 4.5-90 1650 115-2300 72 4.9-100 1825 125-2500 DIAMETER DIAMETER INCH IPM MM MM/MIN Capacities and Speed Ranges INSIDE RING OUTSIDE RING INSIDE RING OUTSIDE RING INSIDE RING OUTSIDE RING CIR-III CIR-IV CIR-V VACUUM MOUNTS - CON-1006 for use on nonferrous material such as stainless, aluminum etc. Use with ARV-2020 Vacuum Pump Kit. A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT-CIRO-BRO-0309 CIR-9030 CIR-III CIR-9040 CIR-IV CIR-9050 CIR-V CIR-3304 CIR-III CIR-4405 CIR-IV CIR-5506 CIR-V CON-1006
