Flexible, Modular Motion Control.

Custom Configurations From Standard Components.

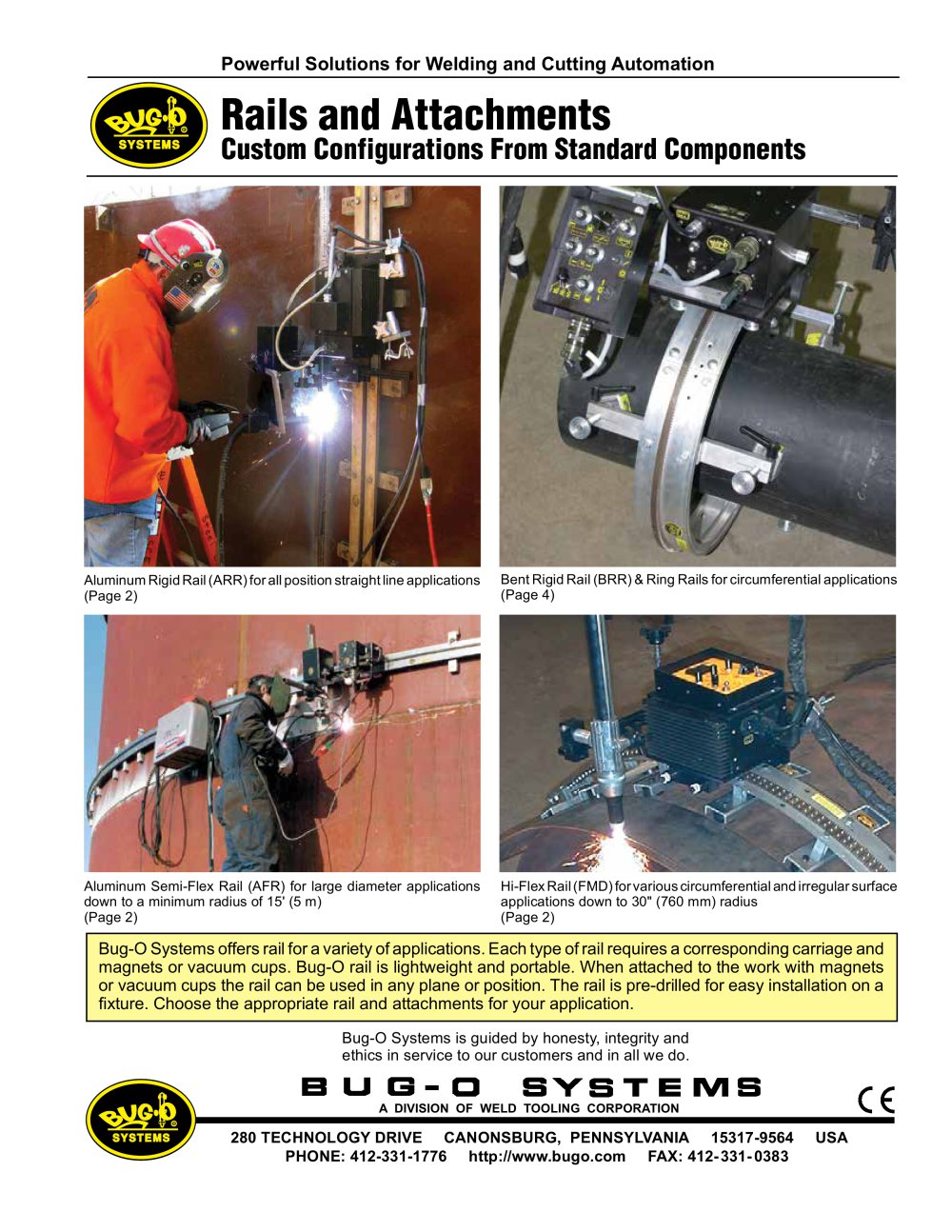

Carriages Rails & Attachments - 11660 Rails and Attachments

Aluminum Rigid Rail (ARR) for all position straight line applications. (Page 2)Bent Rigid Rail (BRR) & Ring Rails for circumferential applications. (Page 3) Aluminum Semi-Flex Rail (AFR) for large diameter applications down to a minimum radius of 15' (5 m). (Page 4)Hi-Flex Rail (FMD) for various circumferential and irregular surface applications down to 30" (760 mm) radius. (Page 5)

Bug-O Systems offers rail for a variety of applications. Each type of rail requires a corresponding carriage and magnets or vacuum cups. Bug-O rail is lightweight and portable. When attached to the work with magnets or vacuum cups the rail can be used in any plane or position. The rail is pre-drilled for easy installation on a fixture. Choose the appropriate rail and attachments for your application.

A DIVISION OF WELD TOOLING CORPORATION 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 USA PHONE: 1-412-331-1776 http://www.bugo.com FAX: 1-412-331-0383
