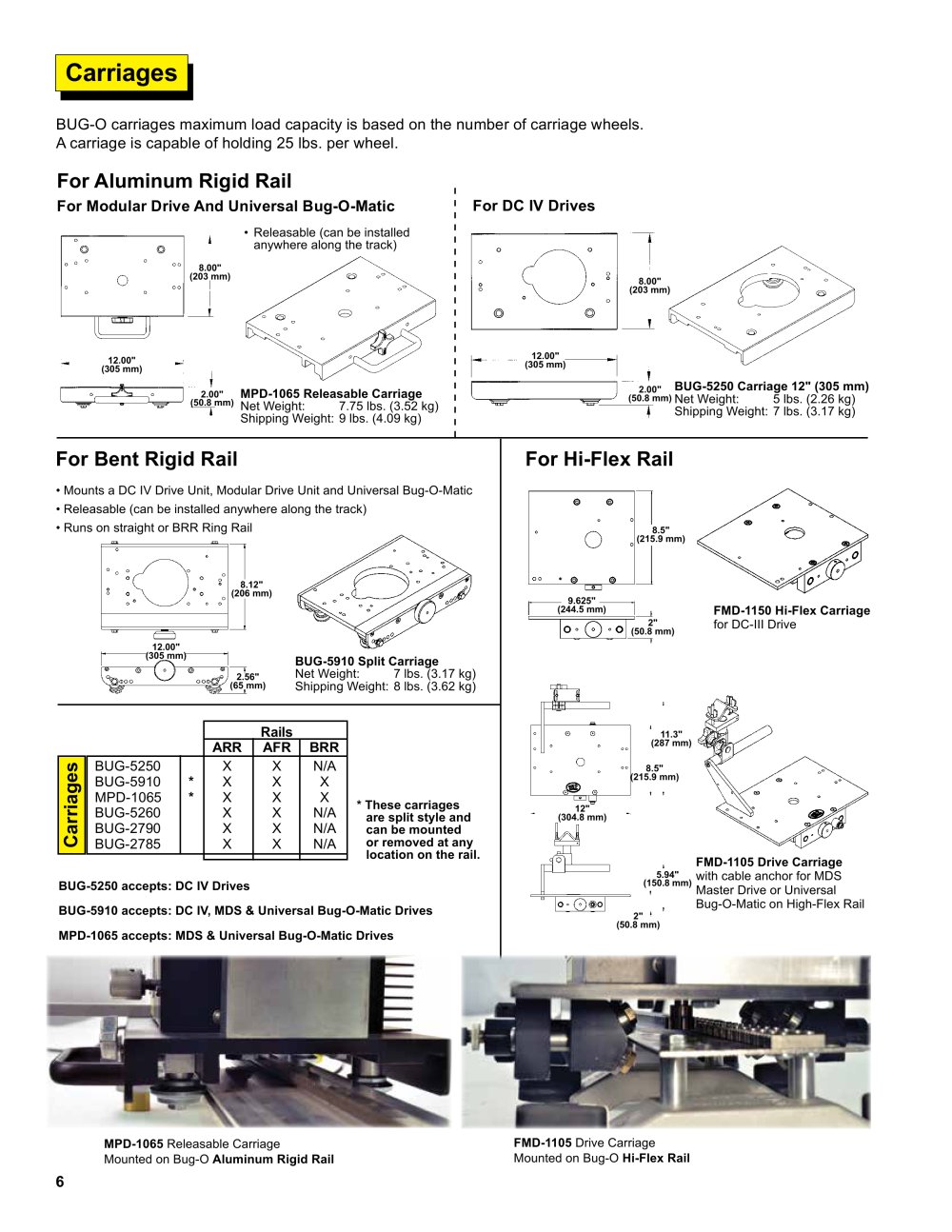

Carriages & Fixture Building

Specialty Carriages For ARR Rail.

BUG-1040-1

Cross Beam Assemblies

4' (1.18 m) long
8.00"(203 mm) BUG-1040-2 Longitudinal rail sections are fabricated from rectangular steel tubing with ARR-1080 or ARR-1085 HD Rigid Rail mounted on each side. Two (2) standard lengths are available and these sections can be joined together to provide the length required. 8' (2.37 m) longSpecial lengths are available on request, contact sales office.
18.00"(457 mm) 2.00"(50 mm) Net Weight: 6 lbs. (2.72 kg) Shipping Weight: 8 lbs. (3.62 kg)• Mounts a DC IV Drive Unit.• Longer deck to mount accessories, wire feeder, etc. BUG-5260 Carriage 18" (457 mm) 8.00"(203 mm) 24.00"(609 mm) 2.00"(50 mm) BUG-2790 Carriage 24" (609 mm) Net Weight: 11 lbs. (5 kg) Shipping Weight: 15 lbs. (6.80 kg)• Mounts a DC IV Drive Unit.• Longer deck to mount accessories, wire feeder, etc. 8.00"(203 mm)

Splicing Plates

36.00"(914 mm) BUG-1053 Splicing Plates are used with the BUG-1040-1 and BUG-1040-2 longitudinal rail sections. Order one splice plate per joint.
2.00"(50 mm) • Mounts a DC IV Drive Unit.• Longer deck to mount accessories, wire feeder, etc. BUG-2785 Carriage 36" (914 mm) Net Weight: 16.5 lbs. (7.50 kg) Shipping Weight: 23.0 lbs. (10.44 kg) BUG-1053 Splice Plate BUG-1045-1 Vertical Column 20" (500 mm)
BUG-1040-1 Rail

Optional Carriages for ARR.

BUG-1045-2
20"(500 mm) Vertical Column 40" (1000 mm) BUG-1045-3 Vertical Column 60" (1500 mm) Vertical columns for BUG-1040-1 or BUG-1040-2 longitudinal rail sections are available in three lengths.
BUG-1045-1 Column 8.00"(203 mm) 12.00"(305 mm) 2.00"(50 mm)

BUG-1096 Yoke Carriage Fixture Building

BUG-2205 Carriage Trailer w/Hitch Net Weight: 6 lbs. (2.72 kg) Shipping Weight: 8 lbs. (3.62 kg)• Used to carry accessories, wire feeder, etc. 8.00"(203 mm) 6.18"(157 mm) 2.00"(50 mm) 12.00"(305 mm) MUG-1140 Spotting Car Net Weight: 6 lbs. (2.72 kg) Shipping Weight: 8 lbs. (3.62 kg)• Knob is used manually to move the carriage along the track.• Bottom knob locks carriage to a fixed rail position.

For use on BUG-1040_ Cross Beams.
