Beam Bug III
4Pages

{{requestButtons}}

Catalog excerpts

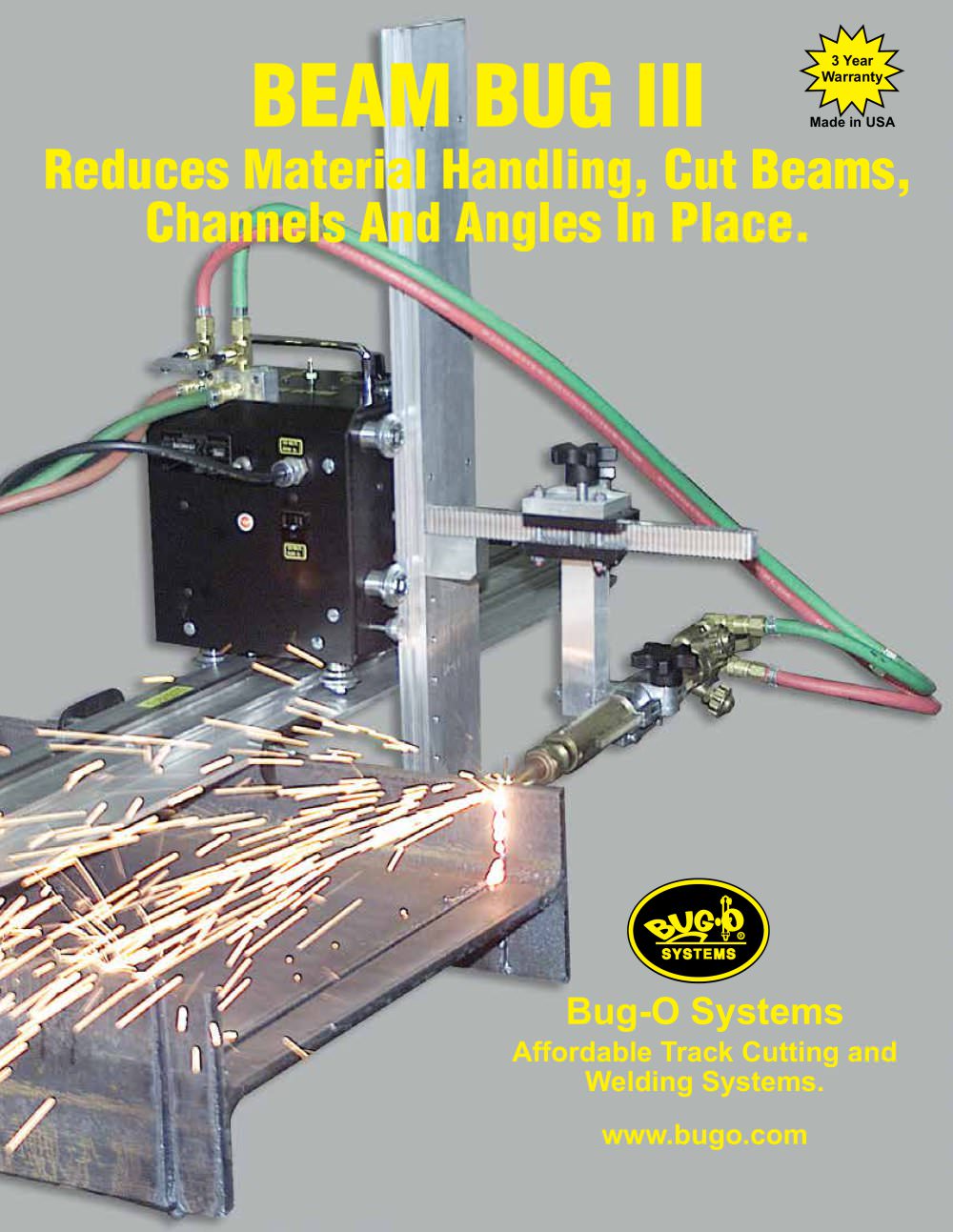

Beam Bug III - 1

BEAM BUG III ARR-9114 BEAM RAIL for square cutting beams ONLY. Capacity: Cuts 2"-18" (50-450 mm) flanges and 14" (350 mm) webs Length: 46 1/2" (1180 mm) Net Weight: 18 lbs (8 Kg) Shipping Weight: 28 lbs (13 kg) 3 Year Warranty Made in USA Reduces Material Handling, Cut Beams, Channels And Angles In Place. ARR-9214 SWIVEL MOUNTED BEAM RAIL for straight, bevel, coping and miter cuts on the web – may also be used for miter cuts on the flanges by rotating the beam. Capacity: Cuts 2"-18" (50-450 mm) flanges and 36" (900 mm) webs Miter Cuts On: 14" (350 webs) Length: 72" (1830 mm) Net Weight: 28 lbs (13 kg) Shipping Weight: 41 lbs (18 kg) ARR-9236 SWIVEL MOUNTED BEAM RAIL same as above but, with greater capacity. Capacity: Cuts 2"-18" (50-450 mm) flanges and 66" (1675 mm) webs Miter Cuts On: 36" (900 mm) webs Length: 102" (2590 mm) Net Weight: 36 lbs (16 kg) Shipping Weight: 51 lbs (23 kg) ARR-9120 SWIVEL MOUNTED BEAM RAIL same as above but, with greater capacity. Capacity: Cuts 2"-18" (50-450 mm) flanges and 120" (3050 mm) webs Miter Cuts On: 72" webs (1830 mm) Length 150" (3810 mmm) Net Weight: 62 lbs (28 kg) Shipping Weight: 94 lbs (43 kg) ARR-9045 ADJUSTABLE BEAM RAIL includes two squaring bars and adjustable locks for miter cuts on webs and flanges36" (915 mm) of travel. Miter Cuts Flanges: 00-450 to 14" (350 mm) wide Miter Cuts Webs: 00-340 to 36" (915 mm) wide 00-450 to 24" (610 mm) wide Length: 65" (1651 mm) Net Weight: 50 lbs (23 kg) Shipping Weight: 75 lbs (34 kg) ARR-9046 ADJUSTABLE BEAM RAIL includes two squaring bars and adjustable locks for miter cuts on webs and flanges -72" (1830 mm) of travel. Miter Cuts Flanges: 00-450 to 14" (350 mm) wide Miter Cuts Webs: 00-450 to 50" (1270 mm) wide 00-340 to 60" (1524 mm) wide Length: 102" (2590 mm) Net Weight: 90 lbs (41 kg) A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT- BBIII-BRO-1014 A DIVISION OF WELD TOOLING CORPORATION Bug-O Systems Affordable Track Cutting and Welding Systems. www.bugo.com

Open the catalog to page 1
Beam Bug III - 2

The BEAM BUG III is a lightweight, easy to carry machine designed to cut beams, channels and angles from one rail setting. It produces smooth, square, accurate cuts and virtually eliminates grinding and touch-up. Now, you can take the machine to the work and greatly reduce material handling costs. The BEAM BUG III is positioned on the workpeice by placing the beam rail on top of the beam. This rail is held in position by powerful permanent magnets and beam clamps. The beam rails enable miter cuts on webs, and when the work can be positioned, on the flanges too. The BEAM BUG III carriage has...

Open the catalog to page 2
Beam Bug III - 3

The BEAM BUG III is a lightweight, easy to carry machine designed to cut beams, channels and angles from one rail setting. It produces smooth, square, accurate cuts and virtually eliminates grinding and touch-up. Now, you can take the machine to the work and greatly reduce material handling costs. The BEAM BUG III is positioned on the workpeice by placing the beam rail on top of the beam. This rail is held in position by powerful permanent magnets and beam clamps. The beam rails enable miter cuts on webs, and when the work can be positioned, on the flanges too. The BEAM BUG III carriage has...

Open the catalog to page 3
Beam Bug III - 4

BEAM BUG III ARR-9114 BEAM RAIL for square cutting beams ONLY. Capacity: Cuts 2"-18" (50-450 mm) flanges and 14" (350 mm) webs Length: 46 1/2" (1180 mm) Net Weight: 18 lbs (8 Kg) Shipping Weight: 28 lbs (13 kg) 3 Year Warranty Made in USA Reduces Material Handling, Cut Beams, Channels And Angles In Place. ARR-9214 SWIVEL MOUNTED BEAM RAIL for straight, bevel, coping and miter cuts on the web – may also be used for miter cuts on the flanges by rotating the beam. Capacity: Cuts 2"-18" (50-450 mm) flanges and 36" (900 mm) webs Miter Cuts On: 14" (350 webs) Length: 72" (1830 mm) Net Weight: 28...

Open the catalog to page 4
