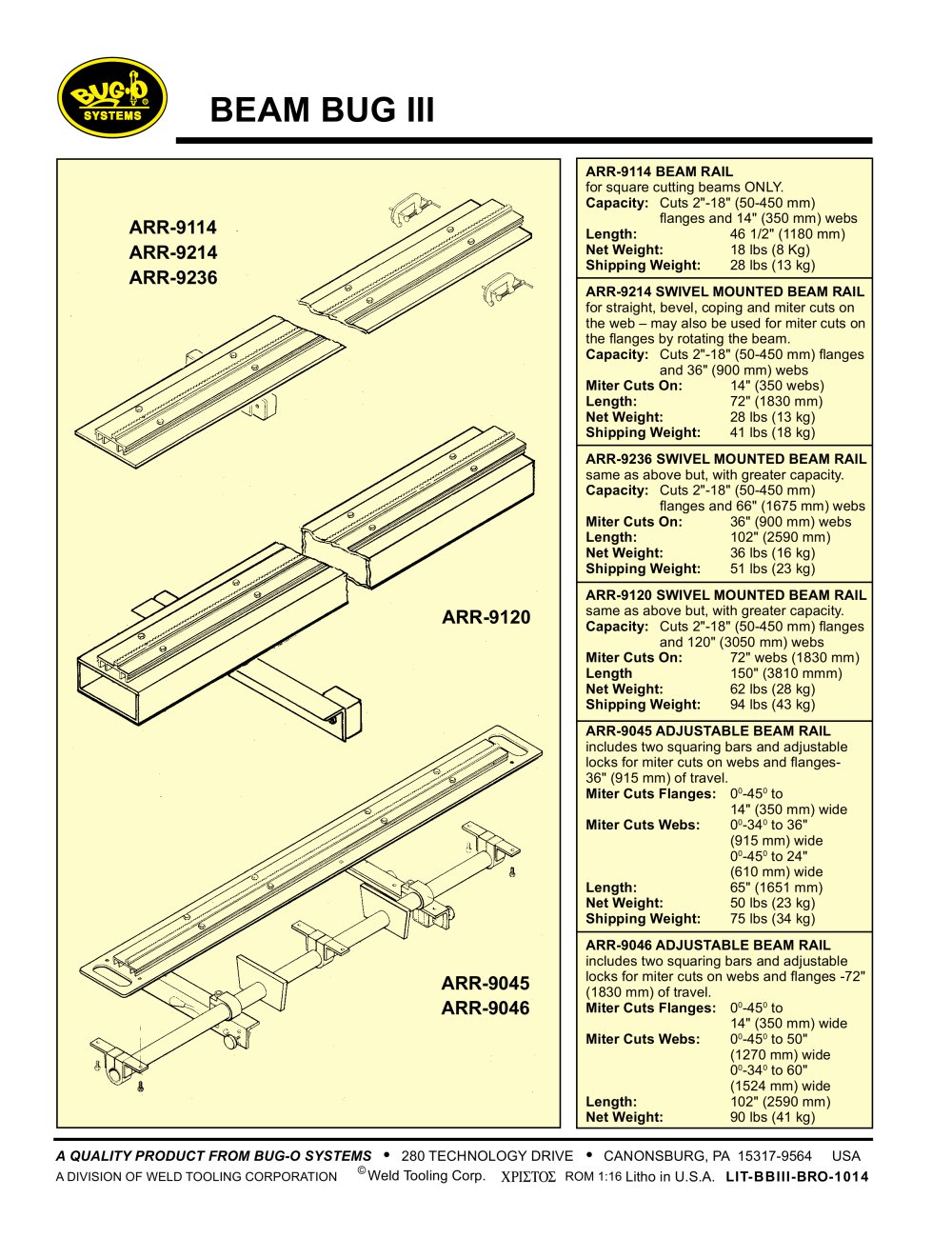

| BEAM BUG III | ||||||||||||||||||||||||
| ARR-9114 BEAM RAIL for square cutting beams ONLY. Capacity: Cuts 2"-18" (50-450 mm) flanges and 14" (350 mm webs Length: 46 1/2" (1180 mm) Net Weight: 18 lbs (8 Kg) Shipping Weight: 28 lbs (13 kg) | ||||||||||||||||||||||||
| ARR-9114 ARR-9214 ARR-9236 | ||||||||||||||||||||||||
| ARR-9214 SWIVEL MOUNTED BEAM RAIL for straight, bevel, coping and miter cuts on the web - may also be used for miter cuts on the flanges by rotating the beam. Capacity: Cuts 2"-18" (50-450 mm) flanges and 36" (900 mm) webs Miter Cuts On: 14" (350 webs) Length: 72" (1830 mm) Net Weight: 28 lbs (13 kg) Shipping Weight: 41 lbs (18 kg) | ||||||||||||||||||||||||
| ARR-9236 SWIVEL MOUNTED BEAM RAIL same as above but, with greater capacity. Capacity: Cuts 2"-18" (50-450 mm) flanges and 66" (1675 mm) webs Miter Cuts On: 36" (900 mm) webs Length: 102" (2590 mm) Net Weight: 36 lbs (16 kg) Shipping Weight: 51 lbs (23 kg) | ||||||||||||||||||||||||
| ARR-9120 SWIVEL MOUNTED BEAM RAIL same as above but, with greater capacity. Capacity: Cuts 2"-18" (50-450 mm) flanges and 120" (3050 mm) webs Miter Cuts On: 72" webs (1830 mm) Length 150" (3810 mmm) Net Weight: 62 lbs (28 kg) Shipping Weight: 94 lbs (43 kg) | ||||||||||||||||||||||||
| ARR-9045 ADJUSTABLE BEAM RAIL includes two squaring bars and adjustable locks for miter cuts on webs and flanges-36" (915 mm) of travel. | ||||||||||||||||||||||||
| 00-450 to 14" (350 mm) wide 00-130 to 36" (915 mm) wide 00-450 to 24" (610 mm) wide 65" (1651 mm) 50 lbs (23 kg) 75 lbs (34 kg) | ||||||||||||||||||||||||
| Miter Cuts Flanges: | ||||||||||||||||||||||||
| Miter Cuts Webs: | ||||||||||||||||||||||||
| Length: Net Weight: Shipping Weight: | ||||||||||||||||||||||||
| ARR-9046 ADJUSTABLE BEAM RAIL includes two squaring bars and adjustable locks for miter cuts on webs and flanges -36" (915 mm) of travel. | ||||||||||||||||||||||||
| ARR-9045 ARR-9046 | ||||||||||||||||||||||||
| 00-450 to 14" (350 mm) wide 00-340 to 60" (1524 mm) wide 00-450 to 50" 102" (2590 mm) 65 lbs (30 kg) 90 lbs (41 kg) | ||||||||||||||||||||||||
| Miter Cuts Flanges: | ||||||||||||||||||||||||
| Miter Cuts Webs: | ||||||||||||||||||||||||
| Length: Net Weight: Shipping Weight: | ||||||||||||||||||||||||
| A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA A DIVISION OF WELD TOOLING CORPORATION ©Weld Tooling Corp. XPIZTOZ ROM 1:16 Litho in U.S.A. LIT-BBIII-BRO-0808 | ||||||||||||||||||||||||
