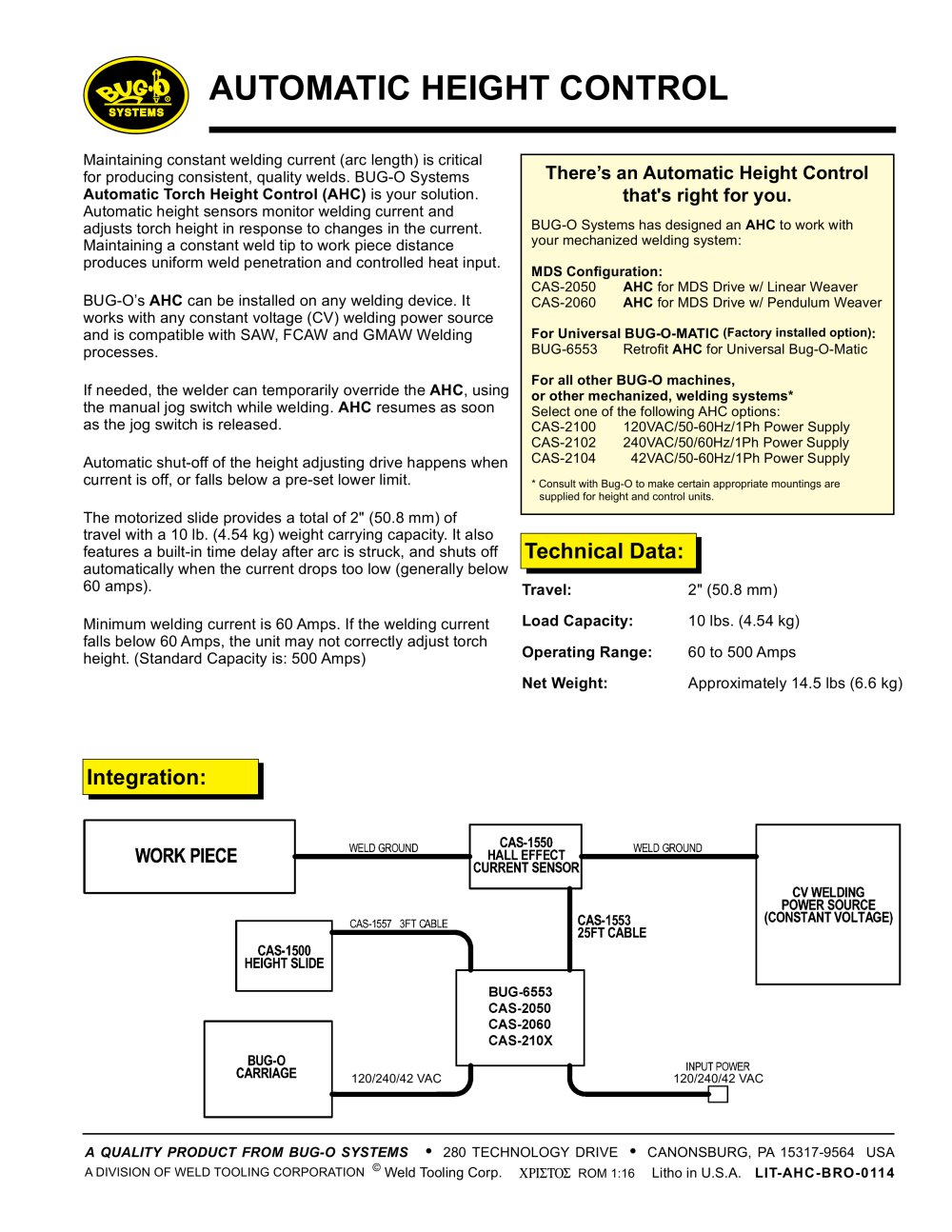

AUTOMATIC HEIGHT CONTROL

With the CAS-0100 the actual weld current is sensed continuously by means of a current shunt, 50mV full scale. The signal is filtered, amplified and compared to a set point value. Any error is fed to a second order control loop which sends a velocity signal to the height adjustment drive. The control holds the error to zero for a flat piece of work, or for a weld with a uniform rise along its length. The drive for the motor is a four-quadrant servo control which enables smooth accurate height corrections. Therefore, the control can easily follow contours. In addition to BUG-O carriages, the CAS-0100 can be used on fixtures or manipulators to provide constant wire stick-out length. It provides automatic control of welding torch-to-work distance with the following:• Multi-turn potentiometer, for adjusting current set point, which is directly read from a turn-counting dial. • Automatic shut-off of height-adjusting drive when current is off or falls below a pre-set lower limit. • Built-in time delay after arc is struck before drive activation. • Manual up-and-down height adjustment buttons which override automatic controls, and function when drive is either active or inactive. • Speed potentiometer sets adjustment speed in manual mode and also limits top speed in automatic mode. • Self-contained control, independent of the rest of the equipment, such as drives, power sources, wire feeders, etc. NOTE: CAS-0100 requires a 50mV Current Shunt (500 amp min.) BUG-O Part No. S17078-5) (Not supplied with CAS-0100)Power Requirements: CAS-0100 120 VAC/50-60HZ/1PH CAS-0102 240 VAC/50-60HZ/1PH CAS-0104 42 VAC/50-60HZ/1PH Vertical Travel: 4" (100 mm) Load Capacity: 20 lb (9.1 kg) within 4" (100 mm) of the slide’s mounting plate. The slide uses a slip clutch to protect the motor from overloads. Net Weight: Slide: 9 lb. (4.1 kg) Control Box: 6 lb (2.7 kg) Dimensions:

Technical Data:

Slide: 5.00"W x 15.25"H x 2.38"D (127 mm x 387 mm x 60 mm) Control Box: 8.00"W x 4.50"H x 3.63"D (203 mm x 114 mm x 92 mm)
A QUALITY PRODUCT FROM BUG-O SYSTEMS

•

280 TECHNOLOGY DRIVE

•

CANONSBURG, PA 15317-9564 USA A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT-AHC-BRO- 10 08
