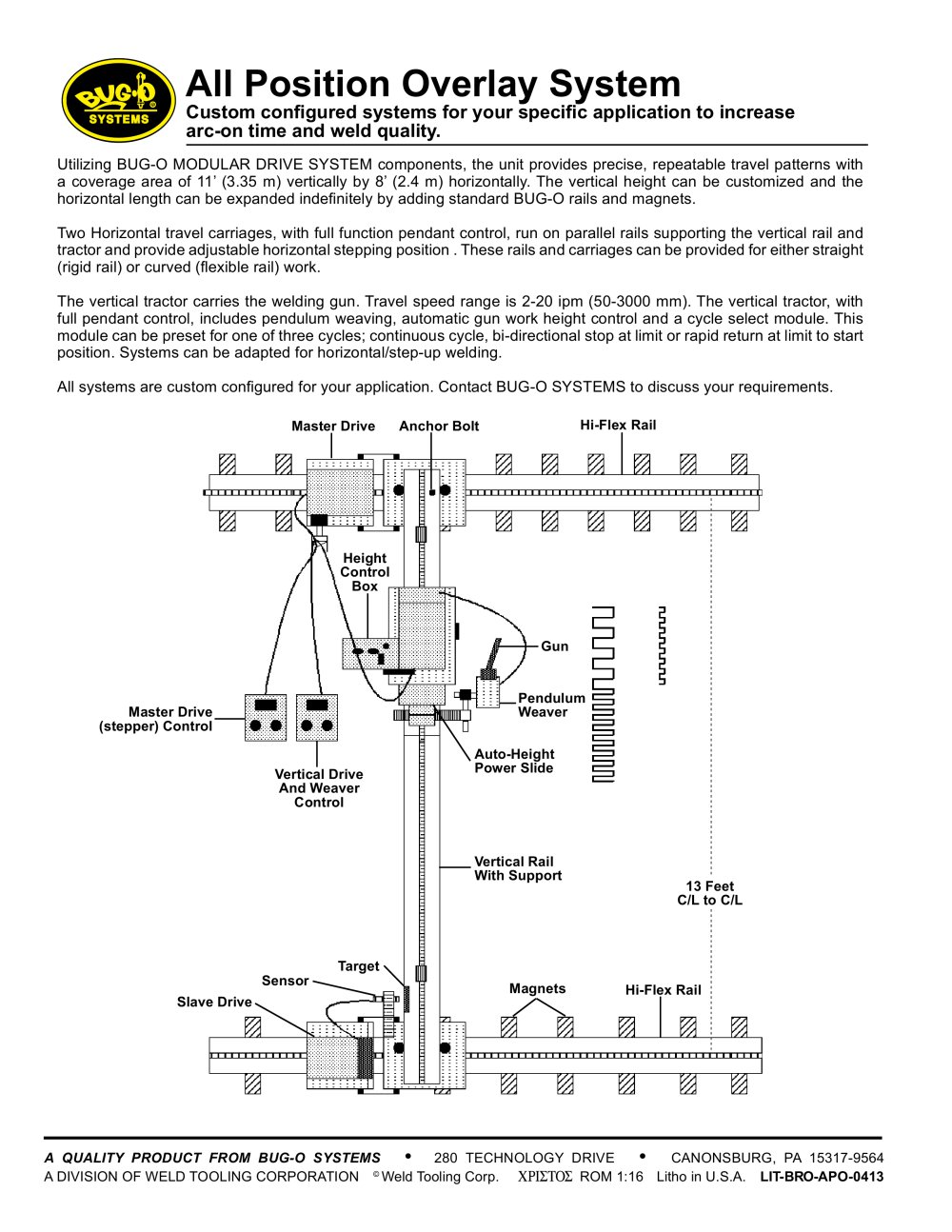

All Position Overlay System Utilizing BUG-O MODULAR DRIVE SYSTEM components, the unit provides precise, repeatable travel patterns with a coverage area of 11’ (3.35 m) vertically by 8’ (2.4 m) horizontally. The vertical height can be customized and the horizontal length can be expanded indefinitely by adding standard BUG-O rails and magnets. Two Horizontal travel carriages, with full function pendant control, run on parallel rails supporting the vertical rail and tractor and provide adjustable horizontal stepping position . These rails and carriages can be provided for either straight (rigid rail) or curved (flexible rail) work. The vertical tractor carries the welding gun. Travel speed range is 2-120 ipm (50-3000 mm). The vertical tractor, with full pendant control, includes pendulum weaving, automatic gun work height control and a cycle select module. This module can be preset for one of three cycles; continuous cycle, bi-directional stop at limit or rapid return at limit to start position. Systems can be adapted for horizontal/step-up welding. All systems are custom configured for your application. Contact BUG-O Systems to discuss your requirements. Custom configured systems for your specific application to increase arc-on time and weld quality. Master Drive Anchor Bolt Hi-Flex Rail Height Control Box Gun Pendulum Weaver Auto-Height Power Slide Vertical Rail With Support Vertical Drive And Weaver Control Master Drive (stepper) Control Slave Drive Sensor Target Magnets Hi-Flex Rail 13 Feet C/L to C/L A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT-BRO-APO-0808
