300-P-9050012-E-02/04.04 51/164

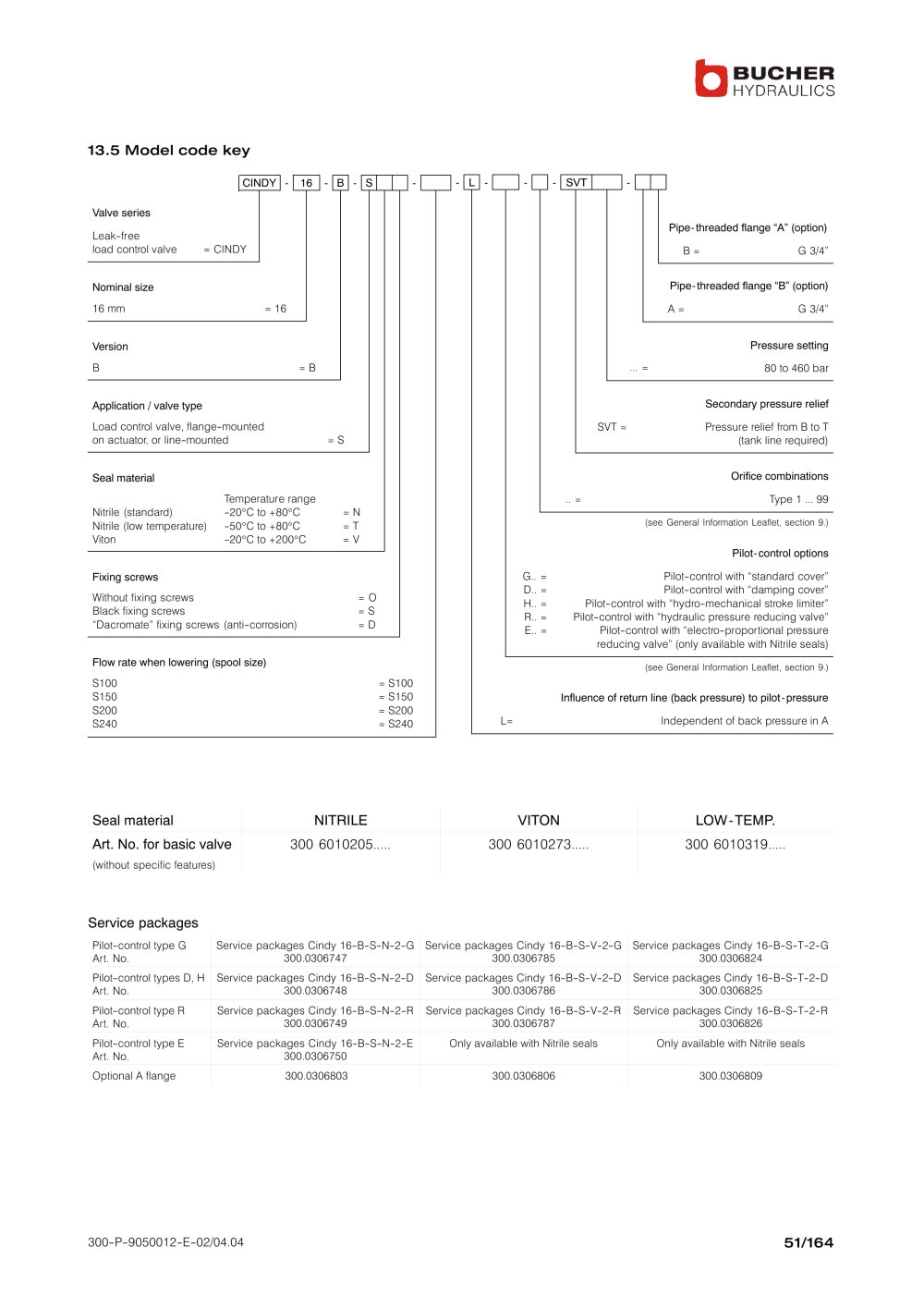

13.5 Model code key
CINDY - 16 - B - S - - L - - - SVT -
S100
S150
S200
S240
Flow rate when lowering (spool size)
= S100
= S150
= S200
= S240
Leak-free
load control valve
Valve series
= CINDY
16 mm
Nominal size
= 16
B
Version
Load control valve, flange-mounted
on actuator, or line-mounted
Application / valve type
= S
= B
Temperature range
Nitrile (standard) -20°C to +80°C
Nitrile (low temperature) -50°C to +80°C
Viton -20°C to +200°C
Seal material
= N
= T
= V
Without fixing screws
Black fixing screws
Dacromate" fixing screws (anti-corrosion)
Fixing screws
= O
= S
= D
80 to 460 bar
Pressure setting
... =
Pressure relief from B to T
(tank line required)
Secondary pressure relief
SVT =
G 3/4"
Pipe- threaded flange “A” (option)
B =
G 3/4"
Pipe- threaded flange “B” (option)
A =
Type 1 ... 99
Orifice combinations
.. =
(see General Information Leaflet, section 9.)
Pilot- control options
Pilot-control with standard cover"
Pilot-control with damping cover"
Pilot-control with hydro-mechanical stroke limiter"
Pilot-control with hydraulic pressure reducing valve"
Pilot-control with electro-proportional pressure
reducing valve" (only available with Nitrile seals)
G.. =
D.. =
H.. =
R.. =
E.. =
Independent of back pressure in A
Influence of return line (back pressure) to pilot-pressure
L=
(see General Information Leaflet, section 9.)
Seal material NITRILE VITON LOW-TEMP.
Art. No. for basic valve
(without specific features)
300 6010205..... 300 6010273..... 300 6010319.....
Service packages
Pilot-control type G
Art. No.
Service packages Cindy 16-B-S-N-2-G
300.0306747
Service packages Cindy 16-B-S-V-2-G
300.0306785
Service packages Cindy 16-B-S-T-2-G
300.0306824
Pilot-control types D, H
Art. No.
Service packages Cindy 16-B-S-N-2-D
300.0306748
Service packages Cindy 16-B-S-V-2-D
300.0306786
Service packages Cindy 16-B-S-T-2-D
300.0306825
Pilot-control type R
Art. No.
Service packages Cindy 16-B-S-N-2-R
300.0306749
Service packages Cindy 16-B-S-V-2-R
300.0306787
Service packages Cindy 16-B-S-T-2-R
300.0306826
Pilot-control type E
Art. No.
Service packages Cindy 16-B-S-N-2-E
300.0306750
Only available with Nitrile seals Only available with Nitrile seals
Optional A flange 300.0306803 300.0306806 300.0306809
