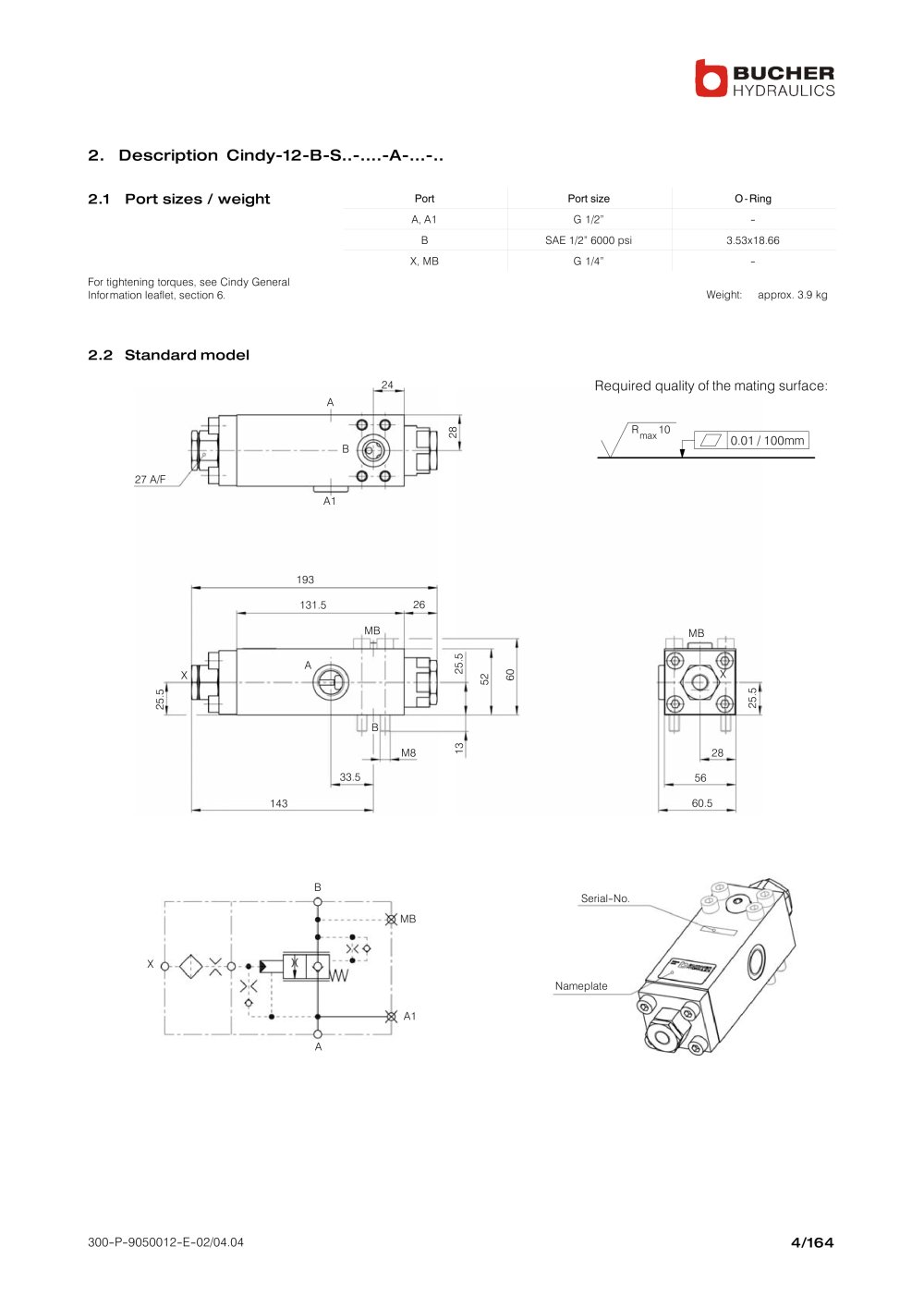

300-P-9050012-E-02/04.04 4/164
2. Description Cindy-12-B-S..-....-A-...-..
2.1 Port sizes / weight Port Port size O-Ring
A, A1 G 1/2" -
B SAE 1/2" 6000 psi 3.53x18.66
X, MB G 1/4" -
For tightening torques, see Cindy General
Information leaflet, section 6. Weight: approx. 3.9 kg
2.2 Standard model
24
27 A/F
A
B
A1
MB
28
25.5
193
131.5 26
A
B
X
MB
52
60
25.5
33.5
M8
13
25.5
X
28
60.5
56
143
Required quality of the mating surface:
0.01 / 100mm
R
max
10
X
B
A
A1
Serial-No.
Nameplate
MB
