300-P-9050012-E-02/04.04 10/164

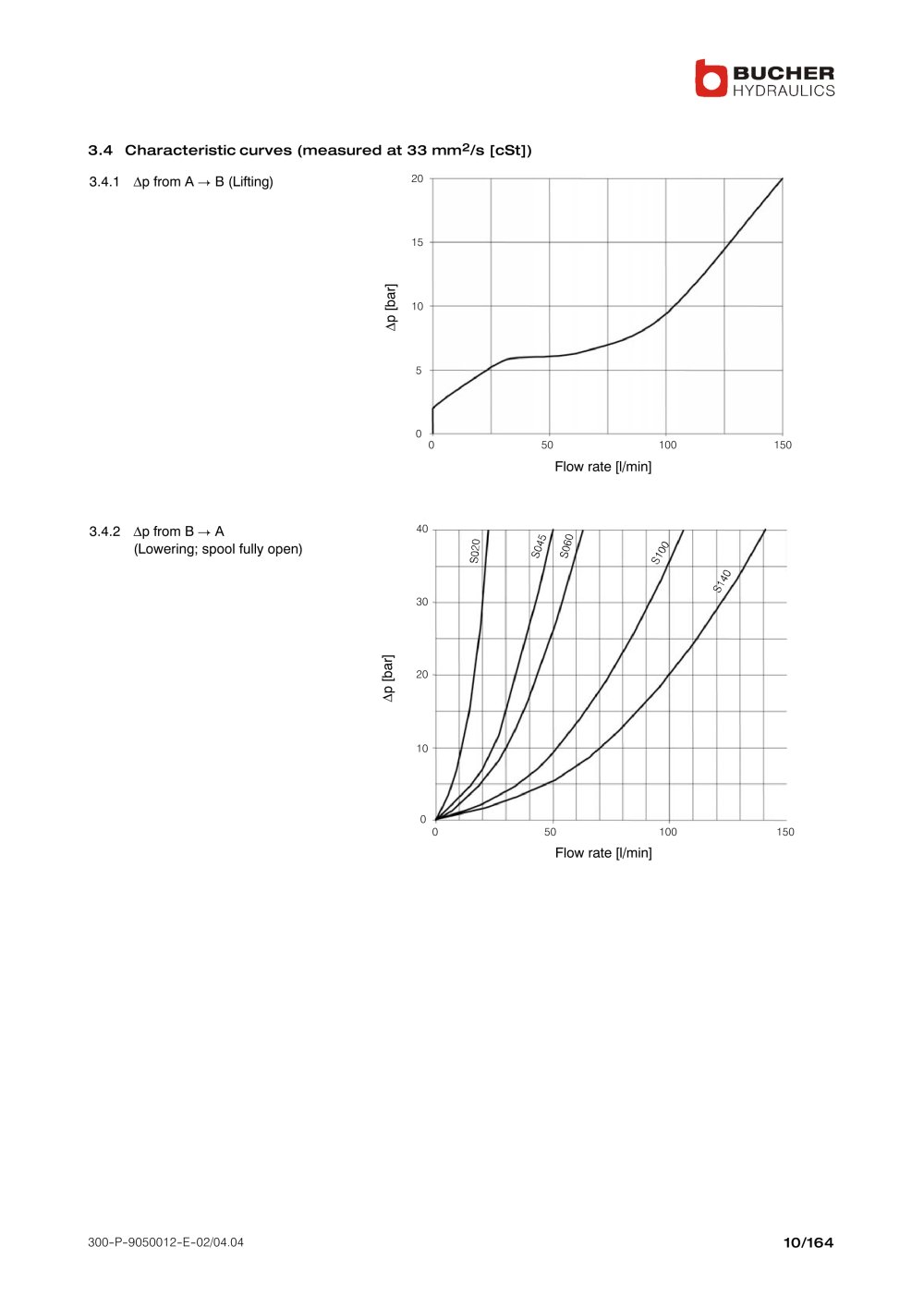

3.4 Characteristic curves (measured at 33 mm2/s [cSt])
3.4.1 Äp from A B (Lifting) 20
15
10
5
0
0 50 100 150
Flow rate [l/min]
Äp [bar]
3.4.2 Äp from B A
(Lowering; spool fully open)
40
30
20
10
0
0 50 100 150
Flow rate [l/min]
Äp [bar]
