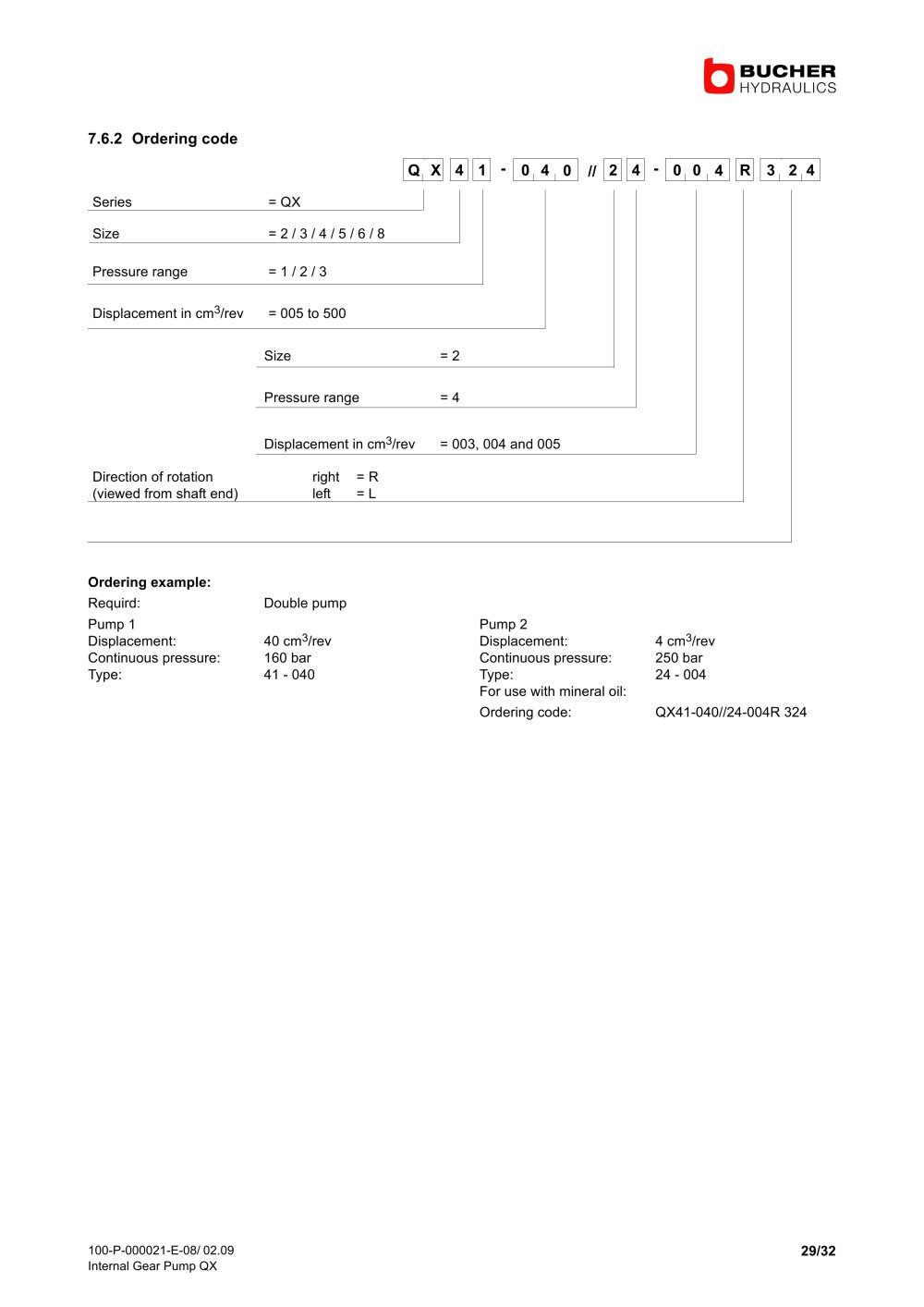

100-P-000021-E-08/ 02.09 Internal Gear Pump QX 29/32 7.6.2 Ordering code Size = 2 / 3 / 4 / 5 / 6 / 8 Q X 4 1 0 4 0 // 2 4 - 0 0 4 R 3 2 Series = QX Pressure range = 1 / 2 / 3 Displacement in cm3/rev = 005 to 500 Size = 2 Pressure range = 4 Displacement in cm3/rev = 003, 004 and 005 Direction of rotation right = R (viewed from shaft end) left = L - 4 Ordering example: Requird: Double pump Pump 1 Displacement: 40 cm3/rev Continuous pressure: 160 bar Type: 41 - 040 Pump 2 Displacement: 4 cm3/rev Continuous pressure: 250 bar Type: 24 - 004 For use with mineral oil: Ordering code: QX41-040//24-004R 324
