100-P-000021-E-08/ 02.09
Internal Gear Pump QX
19/32

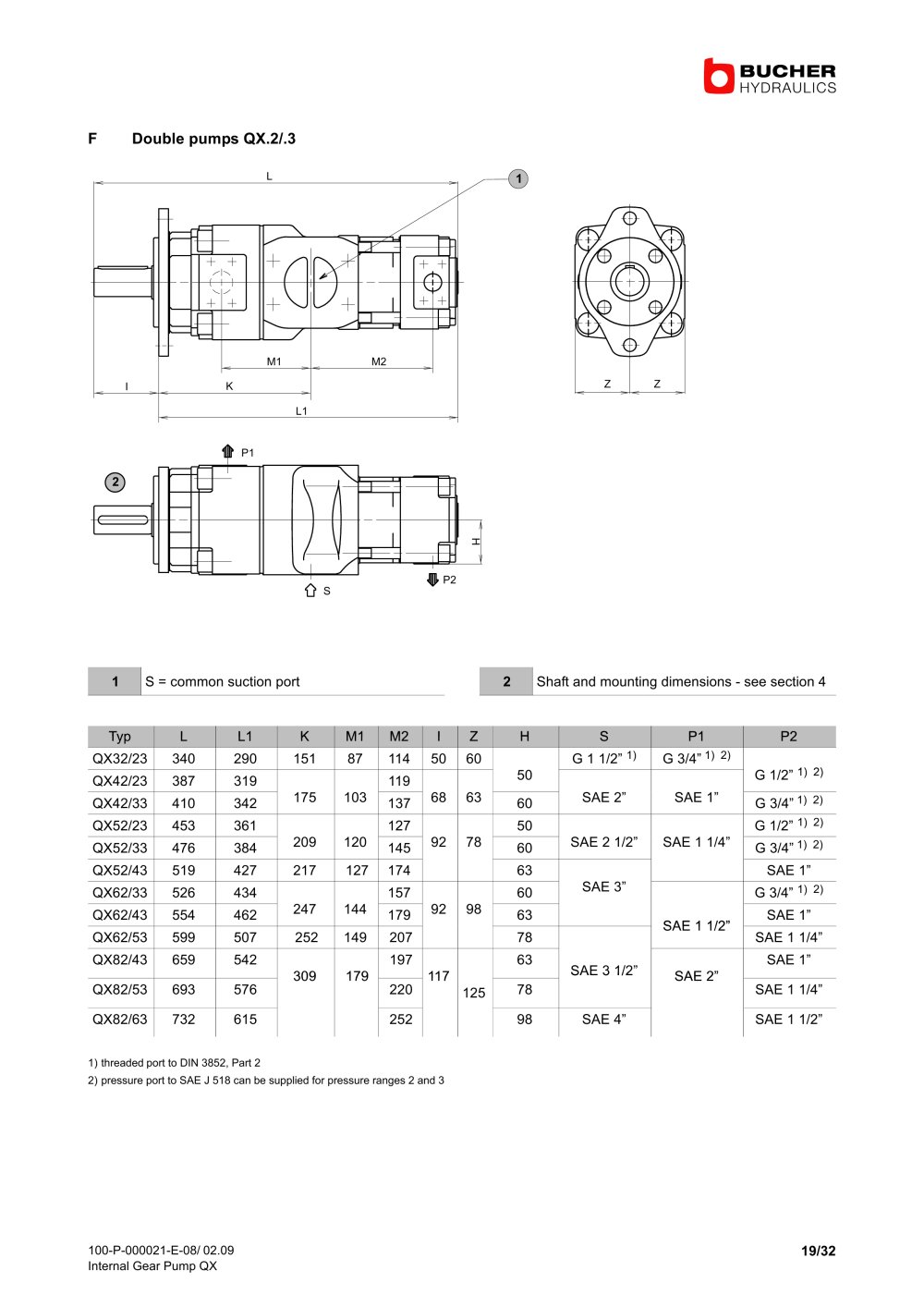

F Double pumps QX.2/.3
1
2
L
I K
M1
L1
M2
P1
S
P2
H
Z Z
1 S = common suction port 2 Shaft and mounting dimensions - see section 4
Typ L L1 K M1 M2 I Z H S P1 P2
QX32/23 340 290 151 87 114 50 60 G 1 1/2" 1) G 3/4" 1) 2)
1) 2)
QX42/23 387 319 119 50 G 1/2" QX42/33 410 342 175 103 137 68 63 60 SAE 2" SAE 1" G 3/4" 1) 2)
QX52/23 453 361 127 50 G 1/2" 1) 2)
QX52/33 476 384 209 120 145 92 78 60 SAE 2 1/2" SAE 1 1/4" G 3/4" 1) 2)
QX52/43 519 427 217 127 174 63 SAE 1"
QX62/33 526 434 157 60 SAE 3" G 3/4" 1) 2)
QX62/43 554 462 247 144 179 92 98 63
SAE 1 1/2"
SAE 1"
QX62/53 599 507 252 149 207 78
SAE 1 1/4"
QX82/43 659 542
309 179
197
117
63
SAE 3 1/2" SAE 2"
SAE 1"
QX82/53 693 576
220
125 78
2 SAE 1 1/4"
QX82/63 732 615 252 98 SAE 4" SAE 1 1/2"
1) threaded port to DIN 3852, Part 2
2) pressure port to SAE J 518 can be supplied for pressure ranges 2 and 3
