Hydraulic Units UP 50
38Pages

{{requestButtons}}

Catalog excerpts

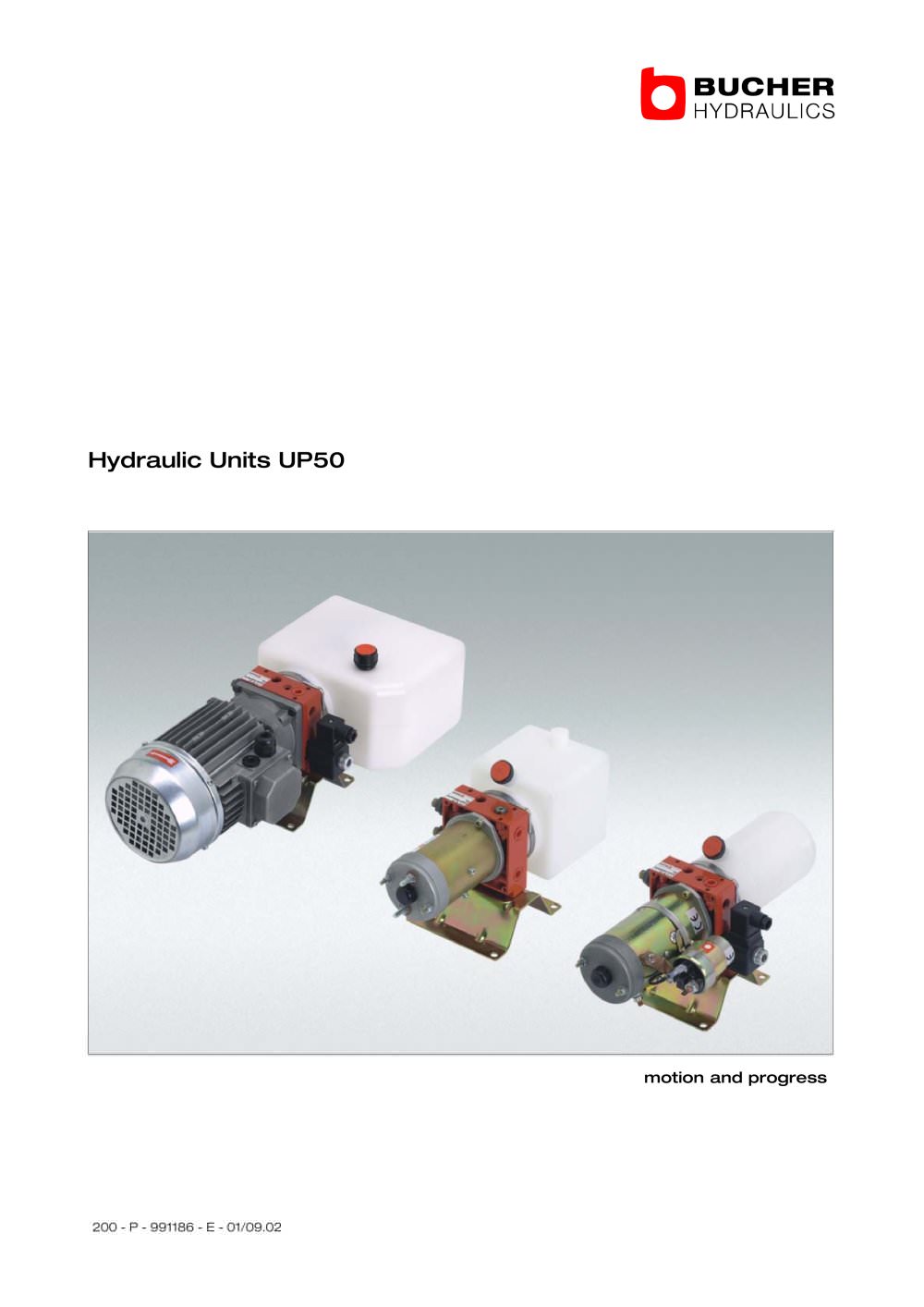

Hydraulic Units UP 50 - 1

200 - P - 991186 - E - 01/09.02 Hydraulic Units UP50 motion and progress

Open the catalog to page 1
Hydraulic Units UP 50 - 2

up50_ME10 tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:17.00pt "Georgia", serif; } .font5 { font:10.00pt "Impact", sans-serif; } .font6 { font:10.00pt "Times New Roman", serif; } BUCHER HYDRAULICS HYDRAULIC UNIT GENERAL FEATURES Modular assembly for single sub-groupes. Standard circuit: SINGLE ACTING - DOUBLE ACTING - REVERSIBLE Valves: adjustable max relief valve, check valve, flow cantrol valve,...

Open the catalog to page 2
Hydraulic Units UP 50 - 4

up50_ME10 tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:17.00pt "Georgia", serif; } .font4 { font:9.60pt "Times New Roman", serif; } [T] HOUSINGS BUCHER HYDRAULICS K04 SINGLE ACTING CIRCUIT TYPE - ARRANGEMENT FOR INTEGRAL CONTROL VALVE Code 7402.3004.0* ,28 1.1 P T T h The lowering valve is not part of this code K41 SINGLE ACTING CIRCUIT TYPE - ARRANGEMENT FOR INTEGRAL CONTROL VALVE HOUSING WITH SUPPLEMENTARY T THREADED PORT Code 7402.3024...

Open the catalog to page 4
Hydraulic Units UP 50 - 10

up50_ME10 tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:29.00pt "Arial", sans-serif; } b BUCHER HYDRAULICS 200 - P - 991186 - E - 01/09.02

Open the catalog to page 10
Hydraulic Units UP 50 - 26

up50_ME10 tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:15.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font6 { font:14.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:20.00pt "Microsoft Sans Serif", sans-serif; } 4 ELECTRIC MOTORS BUCHER HYDRAULICS Mounting positions Standard position B Example Electric mator Pos. T 0 0 1 S Relay Pos. | 200 - P...

Open the catalog to page 26
Hydraulic Units UP 50 - 30

up50_ME10 tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font5 { font:20.00pt "Microsoft Sans Serif", sans-serif; } INTEGRAL CONTROL BUCHER HYDRAULICS TWO POSITION-TWO WAY N.O.EL.VALVE Directional valve without coil and connector SPF817/22-T0 7572.0020.0 36 7.42"' To be assembled in K04 - K41 housings.only. 2 52* Coil voltage D.C. A.C. Volt 12 V. 24 V....

Open the catalog to page 30
Hydraulic Units UP 50 - 34

up50_ME10 tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:15.00pt "Arial", sans-serif; } .font5 { font:17.00pt "Arial", sans-serif; } .font6 { font:4.00pt "Franklin Gothic Medium", sans-serif; } .font7 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font8 { font:20.00pt "Microsoft Sans Serif", sans-serif; } MODULE CONTROLS BUCHER HYDRAULICS MANIFOLD FOR PARALLEL CIRCUIT - VERTICAL ASSEMBLY...

Open the catalog to page 34
