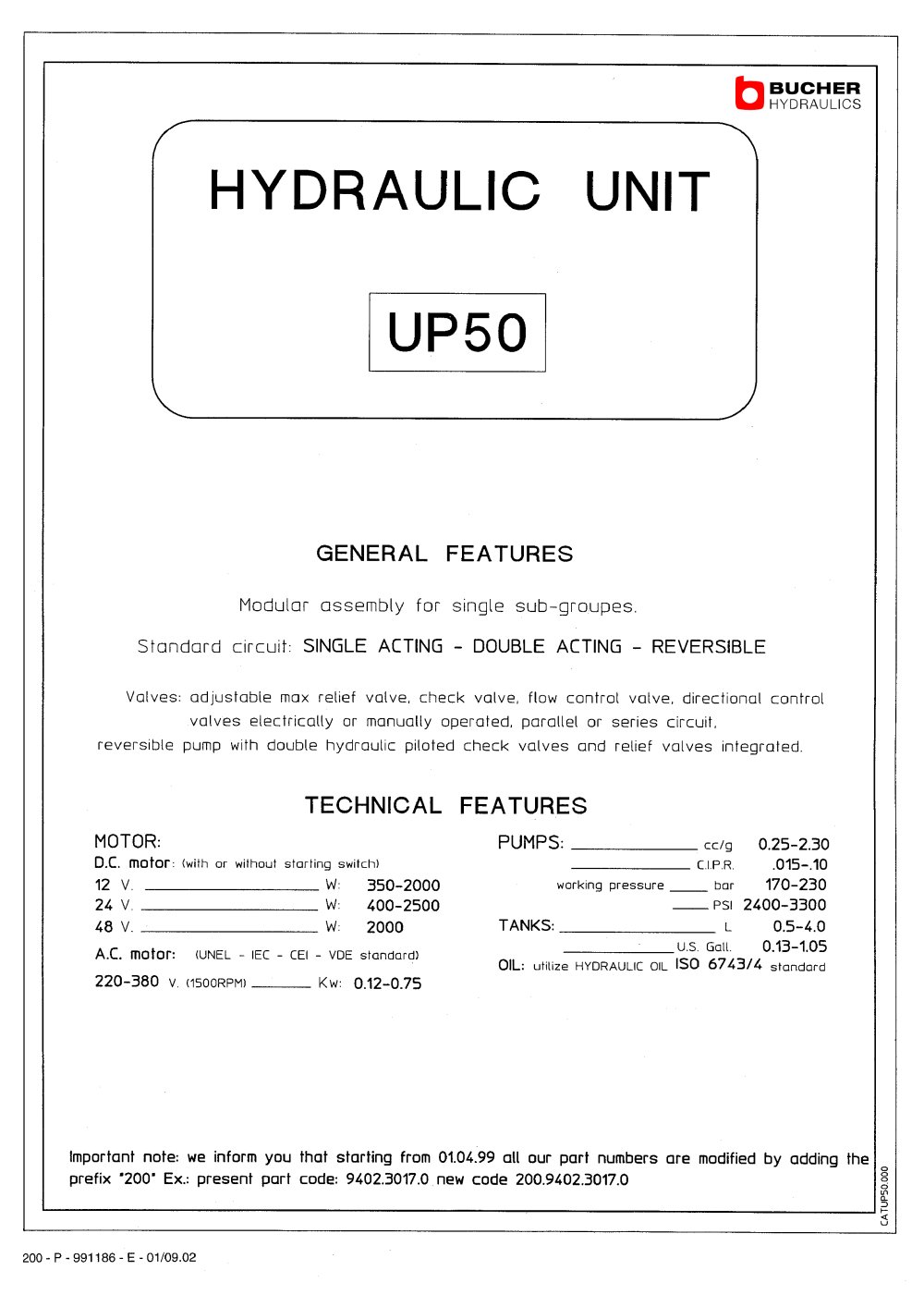

BUCHER
HYDRAULICS
HYDRAULIC UNIT
GENERAL FEATURES
Modular assembly for single sub-groupes. Standard circuit: SINGLE ACTING - DOUBLE ACTING - REVERSIBLE
Valves: adjustable max relief valve, check valve, flow cantrol valve, directional confrol valves electrically or manually operated, parallel or séries circuit, réversible pump with double hydraulic piloted check valves and relief valves integrated.
TECHNICAL FEATURES
MOTOR:
D.C. motOT: (with or without starting switch)
PUMPS:
cc/g
0.25-2.30
C.I.P.R. .015-.10 _ bar 170-230 -PSI 2400-3300
_ L 0.5-4.0
12 V. 24 V. 48 V.
350-2000 400-2500 2000
working pressure
TANKS:
A.C. motor: (unel - iec 220-380 v. (1500RPM)_
CEI
- VDE standard) Kw: 0.12-0.75
U.S. Gall.
0.13-1.05
OIL: utilize HYDRAULIC OIL ISO 6743/4 standard
Important note: we inform you that starting from 01.04.99 ail our part numbers are madified by adding the prefix '200" Ex.: présent part code: 9402.3017.0 new code 200.9402.3017.0
200-P-991186-E-01/09.02
