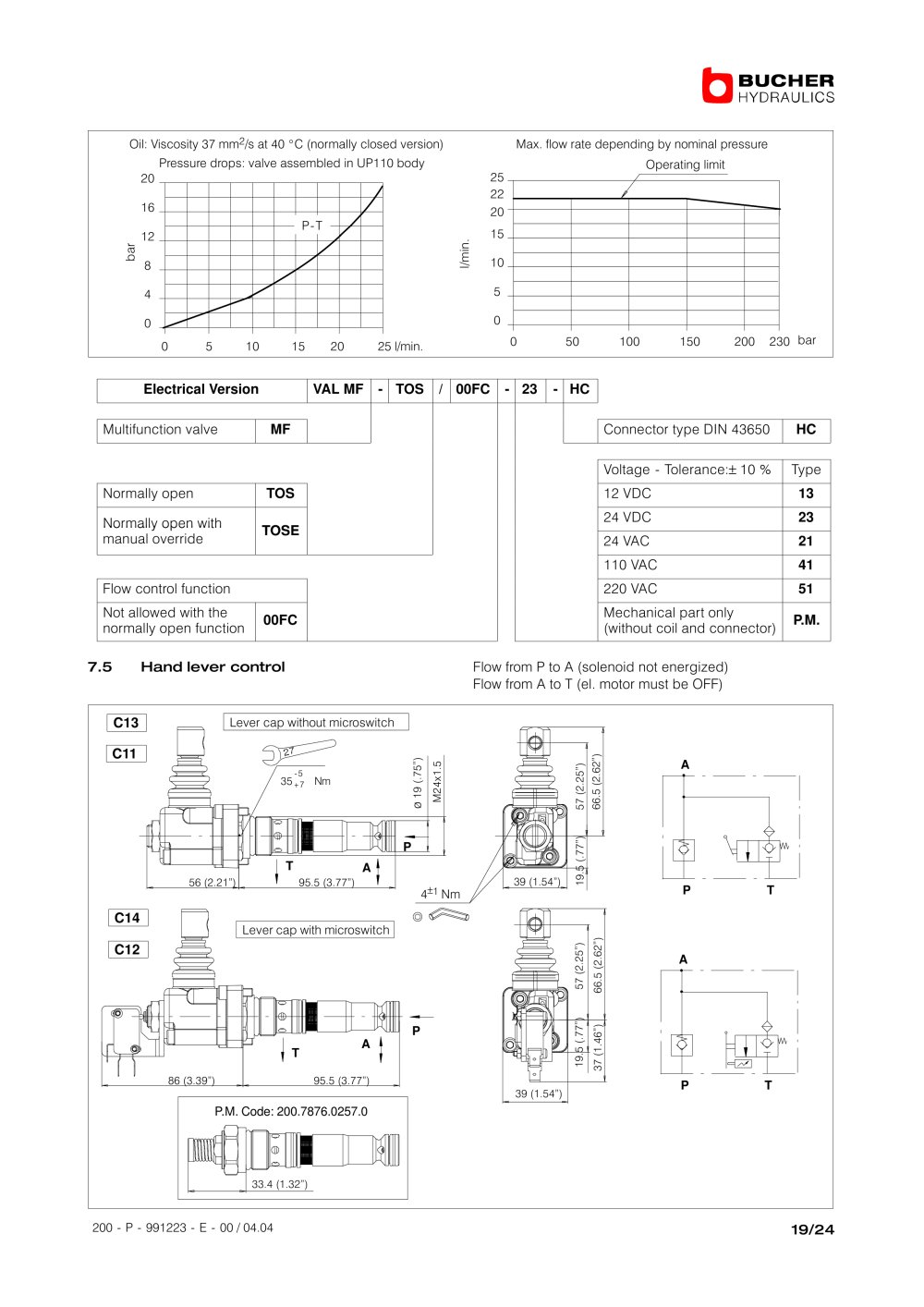

200 - P - 991223 - E - 00 / 04.04 19/24 Pressure drops: valve assembled in UP110 body Oil: Viscosity 37 mm2/s at 40 C (normally closed version) Operating limit l/min. 25 20 15 10 5 0 0 50 100 150 200 Max. flow rate depending by nominal pressure bar 20 16 12 8 4 0 0 5 10 15 20 25 l/min. 230 bar P-T 22 Electrical Version VAL MF - TOS / 00FC - 23 - HC Multifunction valve MF Connector type DIN 43650 HC Voltage - Tolerance:± 10 % Type Normally open TOS 12 VDC 13 Normally open with TOSE 24 VDC 23 manual override 24 VAC 21 110 VAC 41 Flow control function 220 VAC 51 Not allowed with the normally open function 00FC Mechanical part only (without coil and connector) P.M. 7.5 Hand lever control Flow from P to A (solenoid not energized) Flow from A to T (el. motor must be OFF) 56 (2.21") 95.5 (3.77") M24x1.5 19.5 (.77") 57 (2.25") 66.5 (2.62") 39 (1.54") 86 (3.39") 95.5 (3.77") 33.4 (1.32") P.M. Code: 200.7876.0257.0 A P T Lever cap without microswitch Lever cap with microswitch 66.5 (2.62") 19.5 (.77") 57 (2.25") 39 (1.54") 37 (1.46") X -5 35 + 7 Nm ø 19 (.75") A P T 4±1 Nm P T A P A T C13 C14 C11 C12
