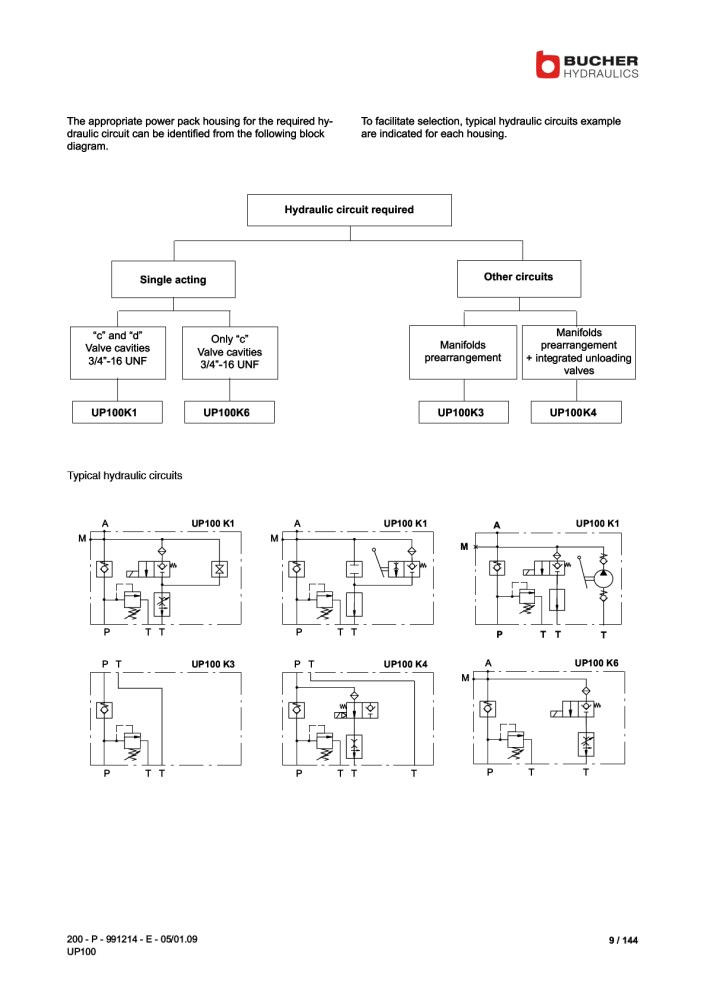

200 - P - 991214 - E - 05/01.09 9 / 144
UP100
The appropriate power pack housing for the required hydraulic
circuit can be identified from the following block
diagram.
To facilitate selection, typical hydraulic circuits example
are indicated for each housing.
UP100K1 UP100K3 UP100K4
c" and d"
Valve cavities
3/4"-16 UNF
Manifolds
prearrangement
Manifolds
prearrangement
+ integrated unloading
valves
Single acting Other circuits
Hydraulic circuit required
UP100K6
Only c"
Valve cavities
3/4"-16 UNF
Typical hydraulic circuits
UP100 K4
P T T
UP100 K3 P
UP100 K1 UP100 K1 UP100 K1
P T T
P T T
M
A
P T T
M
A
T
T
P T UP100 K6
P T T
M
A
P T T
M
A
T
