200 - P - 991214 - E - 05/01.09 51 / 144
UP100

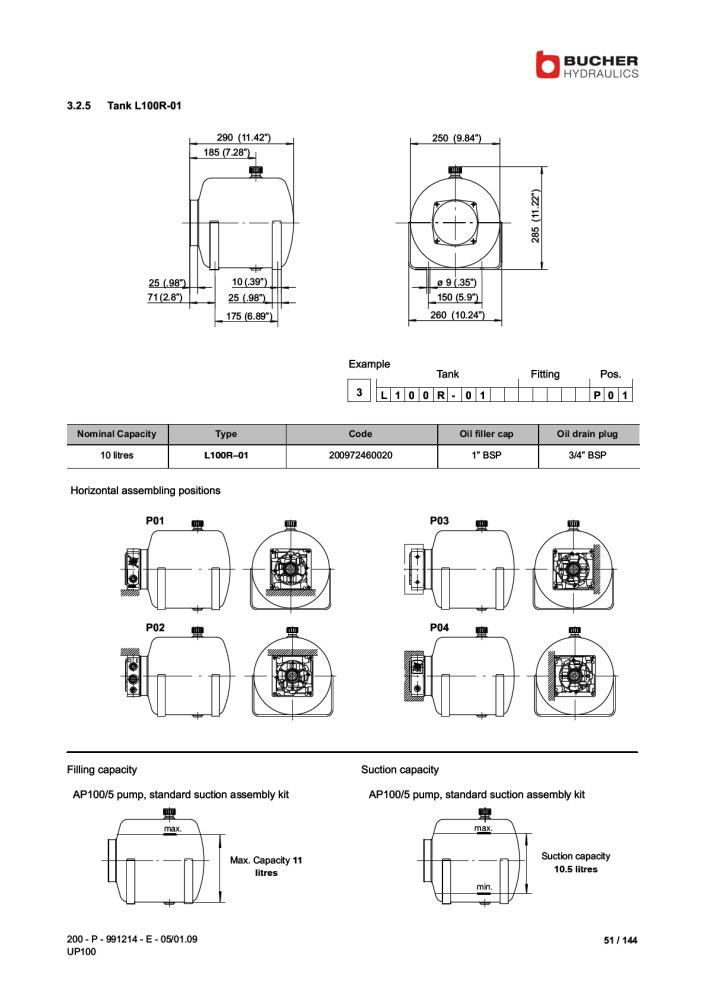

3.2.5 Tank L100R-01
Example
3 L 1 0 0 R - 0
Tank
P 0 1
Fitting Pos.
1
71 (2.8") 25 (.98")
10 (.39")
250 (9.84")
25 (.98") ø 9 (.35")
285 (11.22")
185 (7.28")
260 (10.24")
290 (11.42")
150 (5.9")
175 (6.89")
Nominal Capacity Type Code Oil filler cap Oil drain plug
10 litres L100R-01 200972460020 1" BSP 3/4" BSP
Horizontal assembling positions
P04
P01 P03
P02
Filling capacity
AP100/5 pump, standard suction assembly kit
max.
Max. Capacity 11
litres
Suction capacity
AP100/5 pump, standard suction assembly kit
max.
min.
Suction capacity
10.5 litres
