200 - P - 991214 - E - 05/01.09 49 / 144
UP100

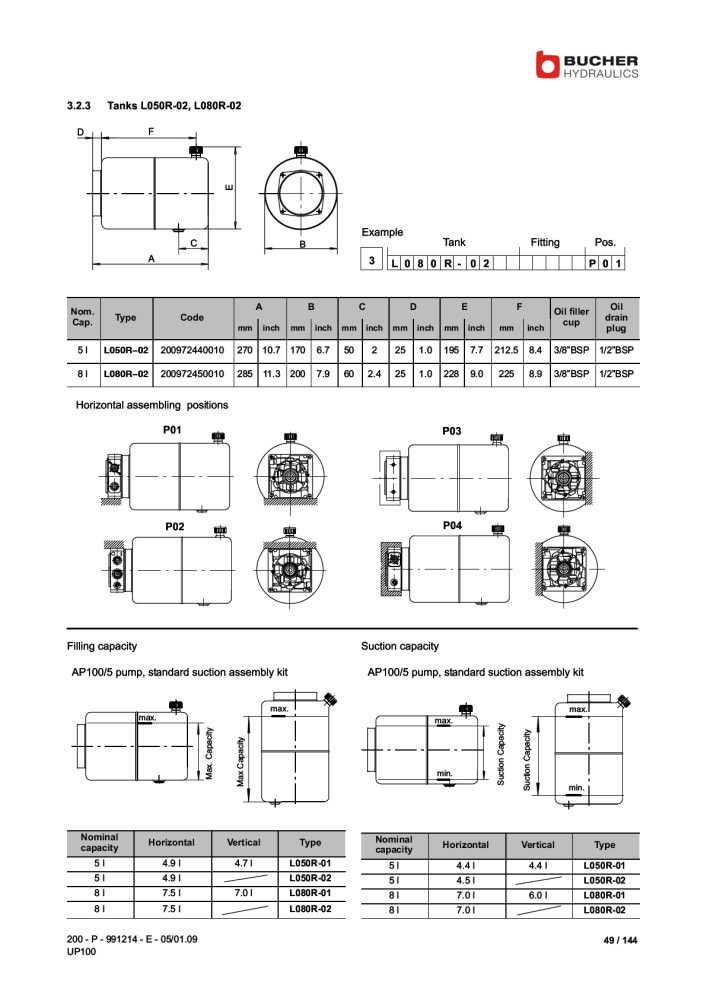

3.2.3 Tanks L050R-02, L080R-02
Example
3 L 0 8 0 R - 0
Tank
P0 1
Fitting Pos.
2 A
D F
E
C B
Nom.
Cap.
Type Code
A B C D E F
Oil filler
cup
Oil
drain
mm inch mm inch mm inch mm inch mm inch mm inch plug
5 l L050R-02 200972440010 270 10.7 170 6.7 50 2 25 1.0 195 7.7 212.5 8.4 3/8"BSP 1/2"BSP
8 l L080R-02 200972450010 285 11.3 200 7.9 60 2.4 25 1.0 228 9.0 225 8.9 3/8"BSP 1/2"BSP
P01
P04
P03
Horizontal assembling positions
P02
Filling capacity
AP100/5 pump, standard suction assembly kit
max.
Max. Capacity
max.
Max Capacity
Nominal
capacity
Horizontal Vertical Type
5 l 4.9 l 4.7 l L050R-01
5 l 4.9 l L050R-02
8 l 7.5 l 7.0 l L080R-01
8 l 7.5 l L080R-02
Suction capacity
AP100/5 pump, standard suction assembly kit
max.
Suction Capacity
max.
Suction Capacity
min.
min.
Nominal
capacity
Horizontal Vertical Type
5 l 4.4 l 4.4 l L050R-01
5 l 4.5 l L050R-02
8 l 7.0 l 6.0 l L080R-01
8 l 7.0 l L080R-02
