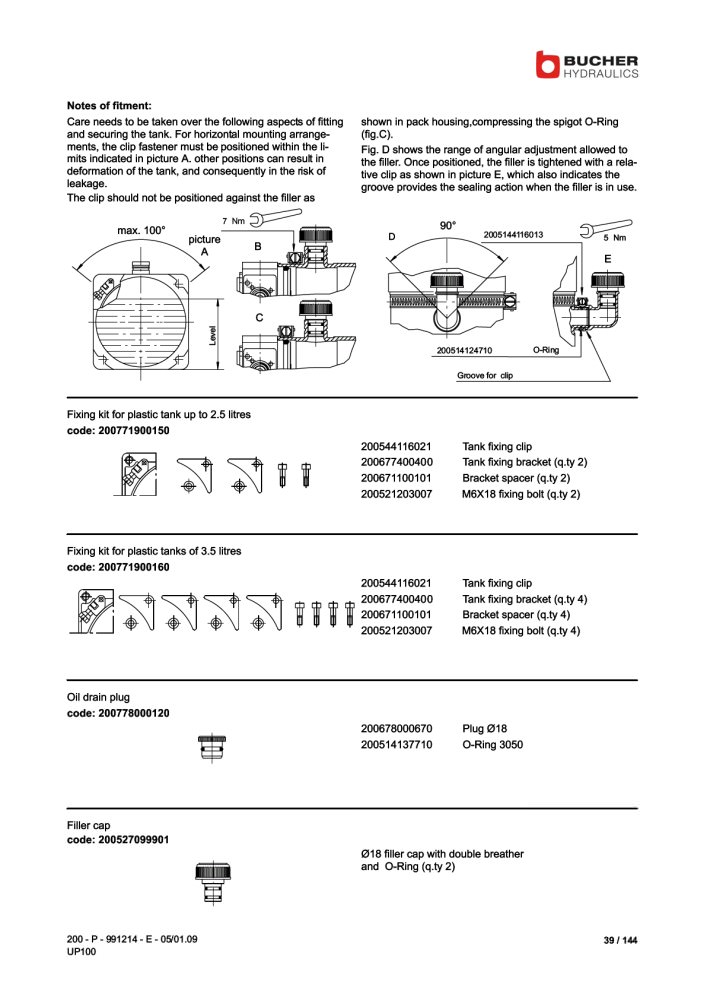

200 - P - 991214 - E - 05/01.09 39 / 144 UP100 Notes of fitment: Care needs to be taken over the following aspects of fitting and securing the tank. For horizontal mounting arrangements, the clip fastener must be positioned within the limits indicated in picture A. other positions can result in deformation of the tank, and consequently in the risk of leakage. The clip should not be positioned against the filler as shown in pack housing,compressing the spigot O-Ring (fig.C). Fig. D shows the range of angular adjustment allowed to the filler. Once positioned, the filler is tightened with a relative clip as shown in picture E, which also indicates the groove provides the sealing action when the filler is in use. 2005144116013 200514124710 Groove for clip O-Ring Level max. 100° 90° picture A B C D E 5 Nm 7 Nm Fixing kit for plastic tank up to 2.5 litres code: 200771900150 200544116021 Tank fixing clip 200677400400 Tank fixing bracket (q.ty 2) 200671100101 Bracket spacer (q.ty 2) 200521203007 M6X18 fixing bolt (q.ty 2) Fixing kit for plastic tanks of 3.5 litres code: 200771900160 200544116021 Tank fixing clip 200677400400 Tank fixing bracket (q.ty 4) 200671100101 Bracket spacer (q.ty 4) 200521203007 M6X18 fixing bolt (q.ty 4) Oil drain plug code: 200778000120 200678000670 Plug Ø18 200514137710 O-Ring 3050 Filler cap code: 200527099901 Ø18 filler cap with double breather and O-Ring (q.ty 2)
