BUCHER HYDRAULICS

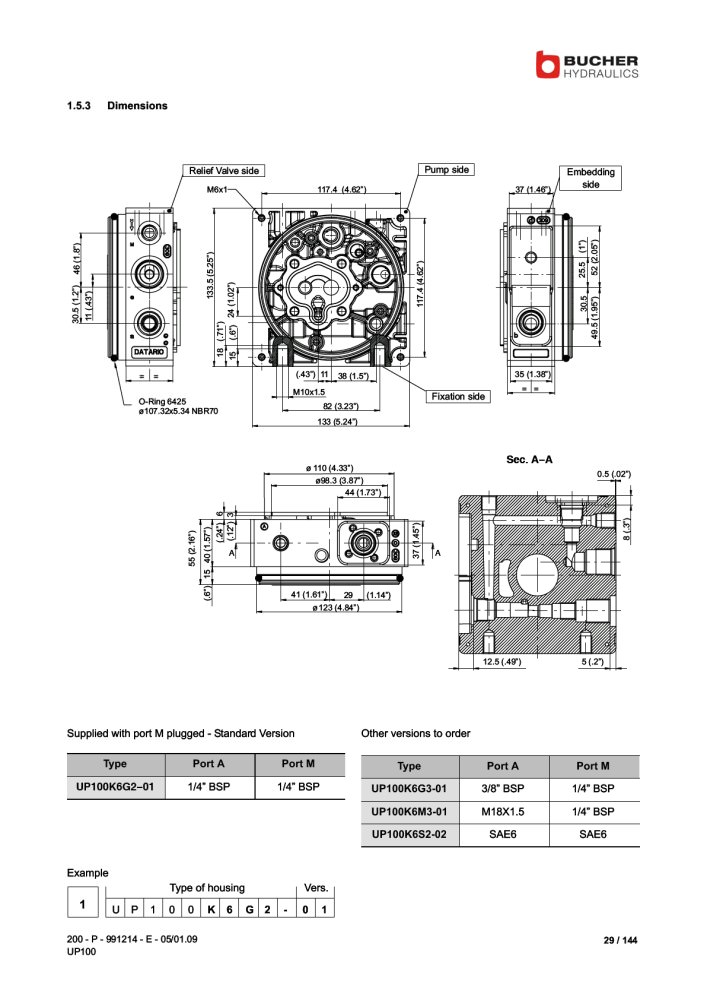

1.5.3 Dimensions
75
Supplied with port M plugged - Standard Version
Other versions to order
Type
Port A
Port M
Type
Port A
Port M
UP100K6G2-01
1/4" BSP
1/4" BSP
UP100K6G3-01
3/8" BSP
1/4" BSP
UP100K6M3-01
M18X1.5
1/4" BSP
UP100K6S2-02
SAE6
SAE6
Example
Type of housing
Vers.
1
U P 1 0 0 K 6 G 2 -
01
200 - P - 991214 - E - 05/01.09 UP100
29 / 144
