200 - P - 991214 - E - 05/01.09 19 / 144
UP100

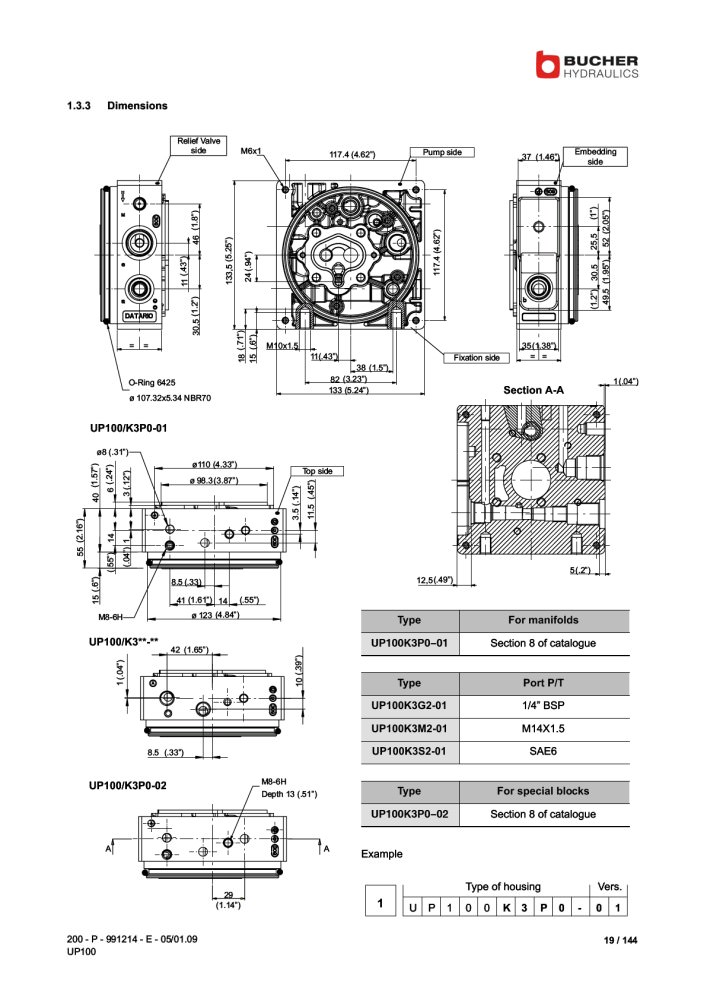

1.3.3 Dimensions
Type For manifolds
UP100K3P0-01 Section 8 of catalogue
Type Port P/T
UP100K3G2-01 1/4" BSP
UP100K3M2-01 M14X1.5
UP100K3S2-01 SAE6
Type For special blocks
UP100K3P0-02 Section 8 of catalogue
Example
Section A-A
Type of housing Vers.
1 U P 1 0 0 K 3 P 0 - 0 1
Top side
UP100/K3P0-01
UP100/K3**-**
UP100/K3P0-02
117.4 (4.62")
117.4 (4.62")
133 (5.24")
82 (3.23")
11 (.43")
M10x1.5
38 (1.5")
18 (.71")
15 (.6")
24 (.94")
46 (1.8")
11 (.43")
30,5 (1.2")
= =
(1.2") 30,5 25,5 (1")
35 (1.38")
= =
37 (1.46")
49,5 (1.95") 52 (2.05")
1 (.04")
5 (.2")
12,5 (.49")
(1.14")
29
133,5 (5.25")
M6x1
O-Ring 6425
ø 107.32x5.34 NBR70
M8-6H
Depth 13 (.51")
Relief Valve
side Pump side
Fixation side
Embedding
side
41 (1.61")
8.5 (.33)
14 (.55")
ø 98.3 (3.87")
ø110 (4.33")
6 (.24")
3 (.12")
55 (2.16")
15 (.6")
(.55") 14
(.04") 1
40 (1.57")
ø 123 (4.84")
3.5 (.14")
11.5 (.45")
ø8 (.31")
M8-6H
8.5 (.33")
1 (.04")
10 (.39")
42 (1.65")
A A
