200 - P - 991214 - E - 05/01.09 101 / 144
UP100

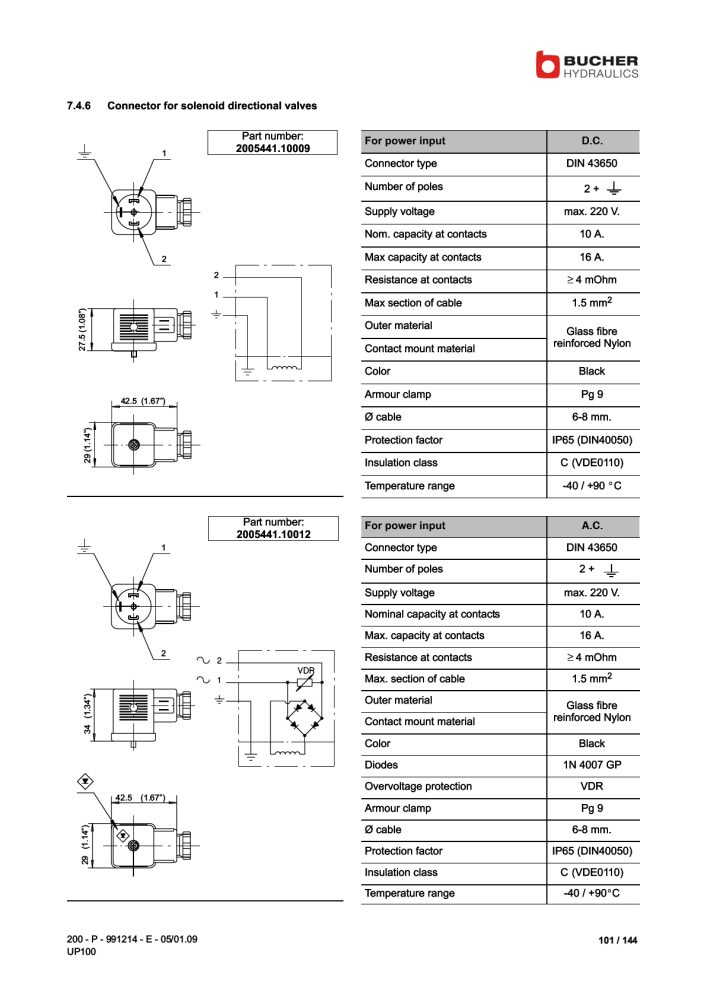

7.4.6 Connector for solenoid directional valves
1
2
1
2
27.5 (1.08")
42.5 (1.67")
29 (1.14")
Part number:
2005441.10009
For power input D.C.
Connector type DIN 43650
Number of poles 2 +
Supply voltage max. 220 V.
Nom. capacity at contacts 10 A.
Max capacity at contacts 16 A.
Resistance at contacts 4 mOhm
Max section of cable 1.5 mm2
Outer material
Glass fibre
reinforced Nylon
Contact mount material
Color Black
Armour clamp Pg 9
Ø cable 6-8 mm.
Protection factor IP65 (DIN40050)
Insulation class C (VDE0110)
Temperature range -40 / +90 C
1
2
34 (1.34")
42.5 (1.67")
29 (1.14")
VDR
1
2
Part number:
2005441.10012
For power input A.C.
Connector type DIN 43650
Number of poles 2 +
Supply voltage max. 220 V.
Nominal capacity at contacts 10 A.
Max. capacity at contacts 16 A.
Resistance at contacts 4 mOhm
Max. section of cable 1.5 mm2
Outer material
Glass fibre
Contact mount material reinforced Nylon
Color Black
Diodes 1N 4007 GP
Overvoltage protection VDR
Armour clamp Pg 9
Ø cable 6-8 mm.
Protection factor IP65 (DIN40050)
Insulation class C (VDE0110)
Temperature range -40 / +90C
