200 - P - 991214 - E - 05/01.09
UP100
10 / 144

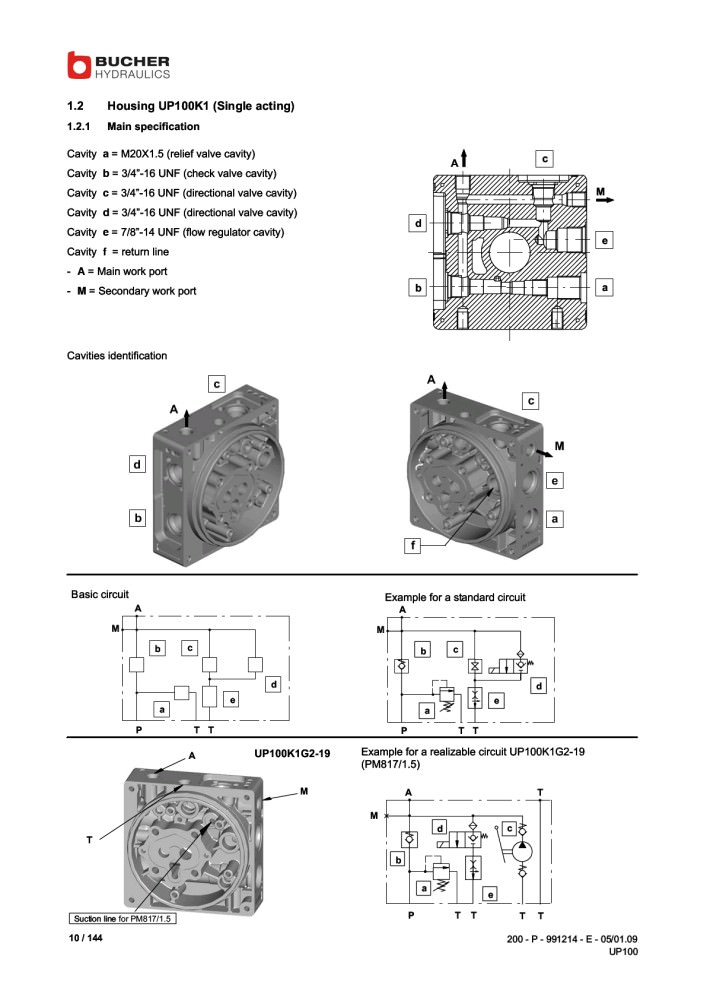

1.2 Housing UP100K1 (Single acting)
1.2.1 Main specification
Cavity a = M20X1.5 (relief valve cavity)
Cavity b = 3/4"-16 UNF (check valve cavity)
Cavity c = 3/4"-16 UNF (directional valve cavity)
Cavity d = 3/4"-16 UNF (directional valve cavity)
Cavity e = 7/8"-14 UNF (flow regulator cavity)
Cavity f = return line
- A = Main work port
- M = Secondary work port a
e
b
d
A c
M
Cavities identification
f
e
b a
d
c
A
c
A
M
b
d
c
e
a
P T T
M
A A
M
P T T
a
e
c
d
b
Basic circuit Example for a standard circuit
Suction line for PM817/1.5
UP100K1G2-19
M
A
T
Example for a realizable circuit UP100K1G2-19
(PM817/1.5)
P T T
c
e
a
b
d
M
A
T T
T
