100-P-000101-E-00 / 02.09

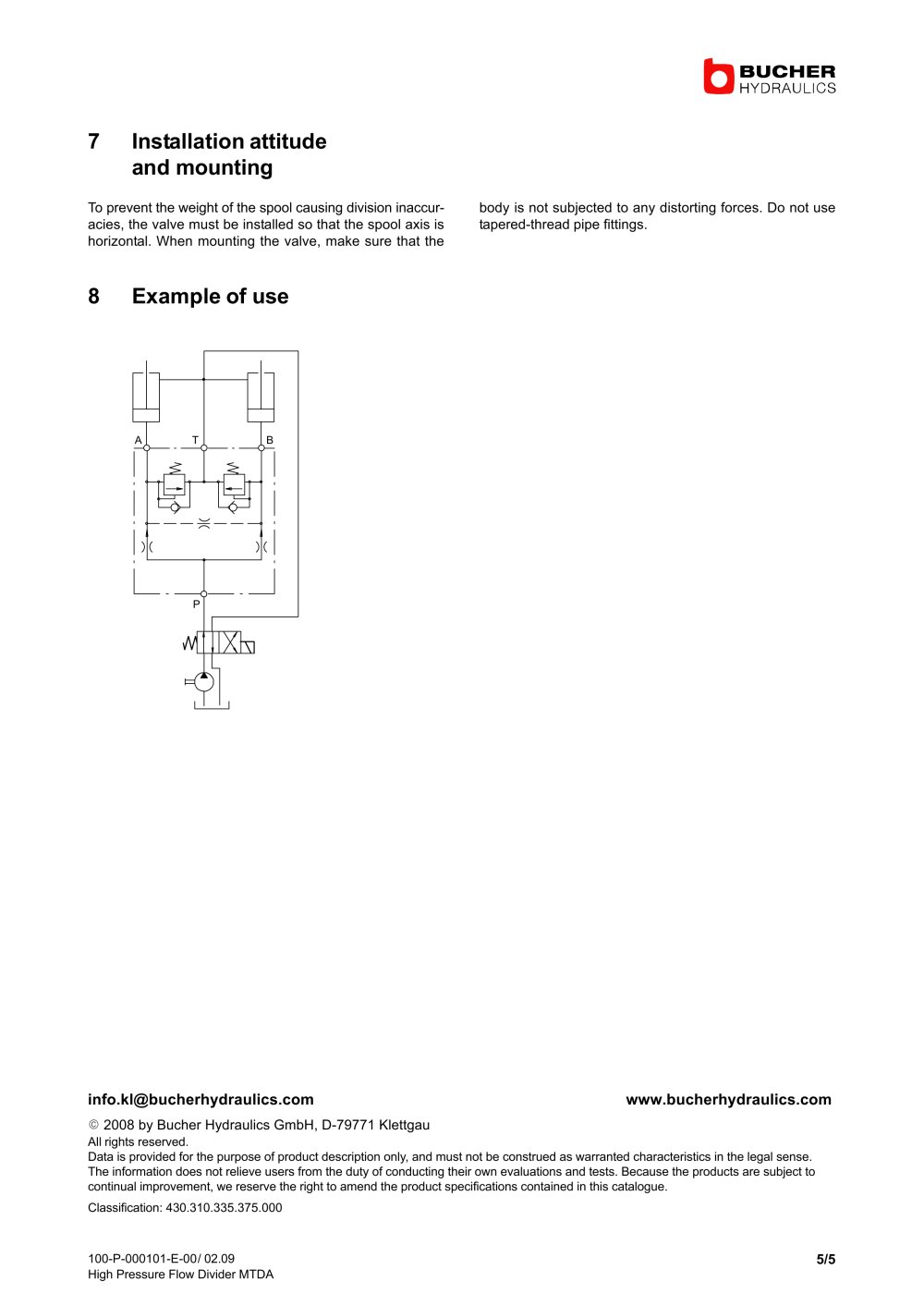

High Pressure Flow Divider MTDA
5/5
7 Installation attitude
and mounting
To prevent the weight of the spool causing division inaccur-
acies, the valve must be installed so that the spool axis is
horizontal. When mounting the valve, make sure that the
body is not subjected to any distorting forces. Do not use
tapered-thread pipe fittings.
8 Example of use
P
A T B
2008 by Bucher Hydraulics GmbH, D-79771 Klettgau
info.kl@bucherhydraulics.com www.bucherhydraulics.com
All rights reserved.
Data is provided for the purpose of product description only, and must not be construed as warranted characteristics in the legal sense.
The information does not relieve users from the duty of conducting their own evaluations and tests. Because the products are subject to
continual improvement, we reserve the right to amend the product specifications contained in this catalogue.
Classification: 430.310.335.375.000
