100-P-000052-E-05 / 07.09

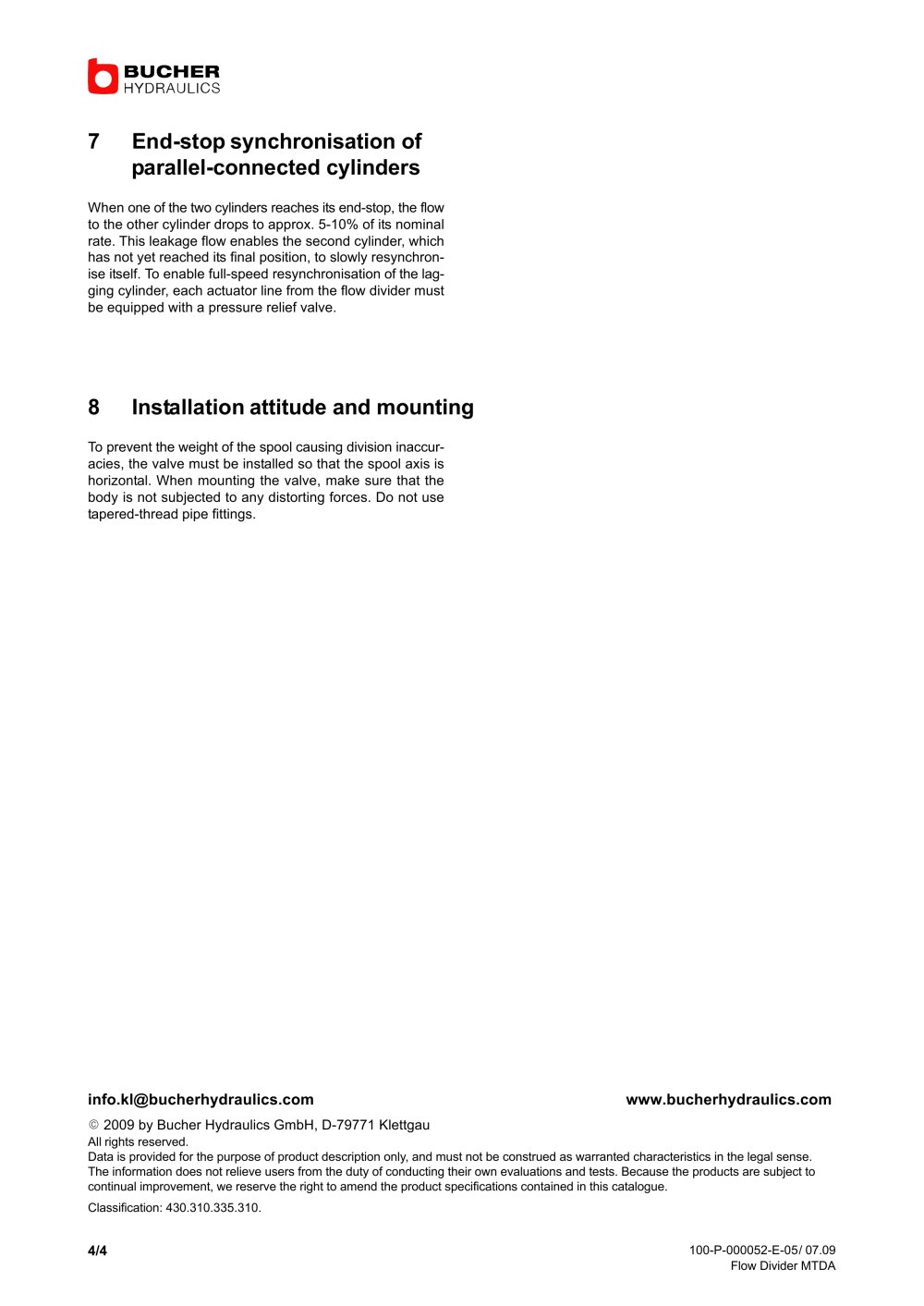

Flow Divider MTDA
4/4
7 End-stop synchronisation of
parallel-connected cylinders
When one of the two cylinders reaches its end-stop, the flow
to the other cylinder drops to approx. 5-10% of its nominal
rate. This leakage flow enables the second cylinder, which
has not yet reached its final position, to slowly resynchron-
ise itself. To enable full-speed resynchronisation of the lag-
ging cylinder, each actuator line from the flow divider must
be equipped with a pressure relief valve.
8 Installation attitude and mounting
To prevent the weight of the spool causing division inaccur-
acies, the valve must be installed so that the spool axis is
horizontal. When mounting the valve, make sure that the
body is not subjected to any distorting forces. Do not use
tapered-thread pipe fittings.
2009 by Bucher Hydraulics GmbH, D-79771 Klettgau
info.kl@bucherhydraulics.com www.bucherhydraulics.com
All rights reserved.
Data is provided for the purpose of product description only, and must not be construed as warranted characteristics in the legal sense.
The information does not relieve users from the duty of conducting their own evaluations and tests. Because the products are subject to
continual improvement, we reserve the right to amend the product specifications contained in this catalogue.
Classification: 430.310.335.310.
