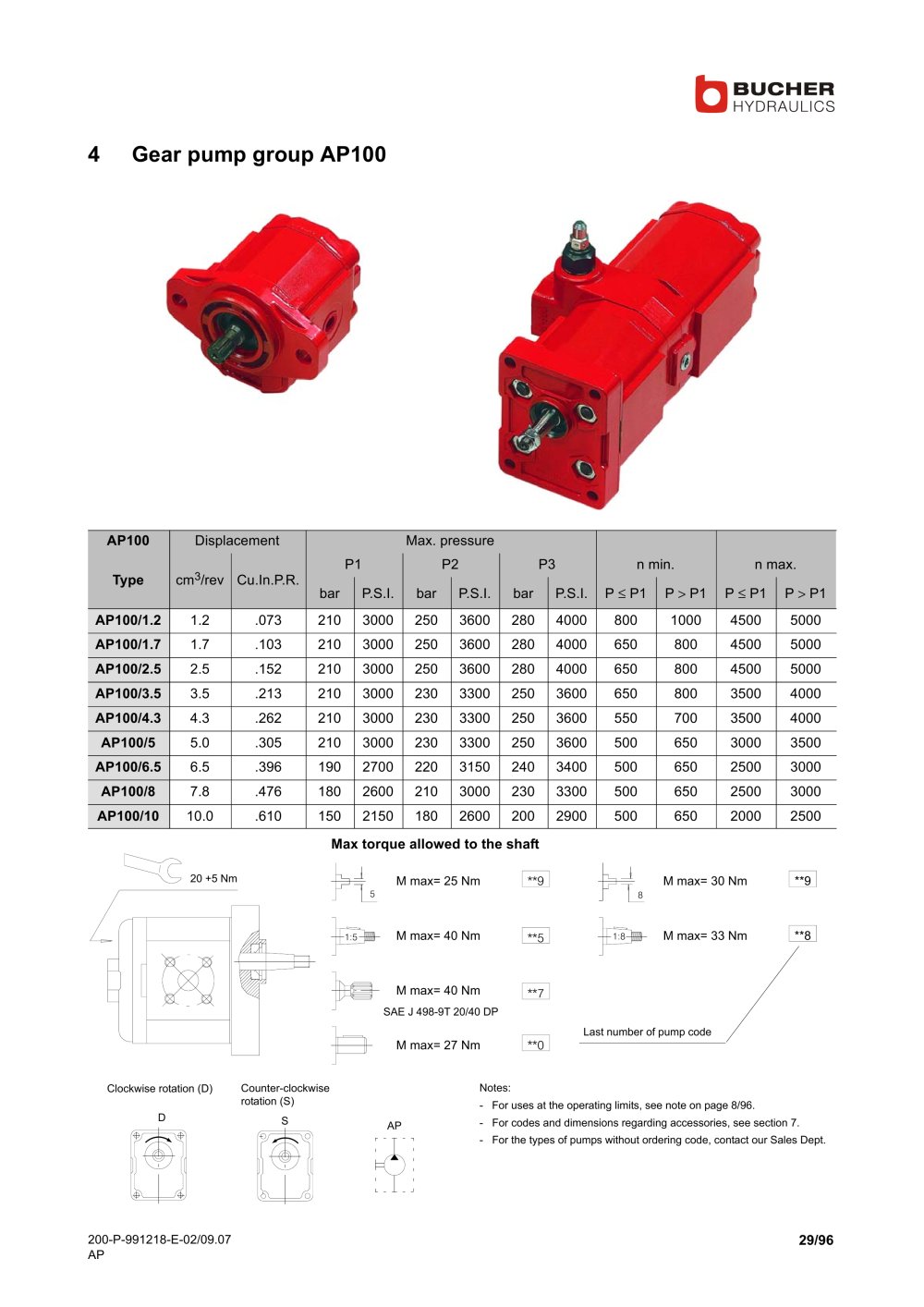

4Gear pump group AP100
AP100 Displacement Max. pressure P1 P2 P3 n min. n max. Type cm3 /rev Cu.In.P.R. bar P.S.I. bar P.S.I. bar P.S.I. P ≤ P1 P > P1 P ≤ P1 P > P1 AP100/1.2 1.2 .073 210 3000 250 3600 280 4000 800 1000 4500 5000 AP100/1.7 1.7 .103 210 3000 250 3600 280 4000 650 800 4500 5000 AP100/2.5 2.5 .152 210 3000 250 3600 280 4000 650 800 4500 5000 AP100/3.5 3.5 .213 210 3000 230 3300 250 3600 650 800 3500 4000 AP100/4.3 4.3 .262 210 3000 230 3300 250 3600 550 700 3500 4000 AP100/5 5.0 .305 210 3000 230 3300 250 3600 500 650 3000 3500 AP100/6.5 6.5 .396 190 2700 220 3150 240 3400 500 650 2500 3000 AP100/8 7.8 .476 180 2600 210 3000 230 3300 500 650 2500 3000 AP100/10 10.0 .610 150 2150 180 2600 200 2900 500 650 2000 2500 Max torque allowed to the shaft
20 +5 Nm **9 M max= 30 NmM max= 33 NmM max= 27 NmM max= 40 NmM max= 40 NmM max= 25 Nm**9 5 8 1:51:8 **5 **8 **7**0 SAE J 498−9T 20/40 DP Last number of pump code D SClockwise rotation (D)Counter−clockwiserotation (S) APNotes:− For uses at the operating limits, see note on page 8/96. − For codes and dimensions regarding accessories, see section 7.− For the types of pumps without ordering code, contact our Sales Dept. 200−P−991218−E−02/09.07AP 29/96
