200--P--991029--E--00 / 03.05 V L PO
S aK`K bäÉÅíêáÅ ãçíçêë Ñçê Öêçìé MR éìãéë

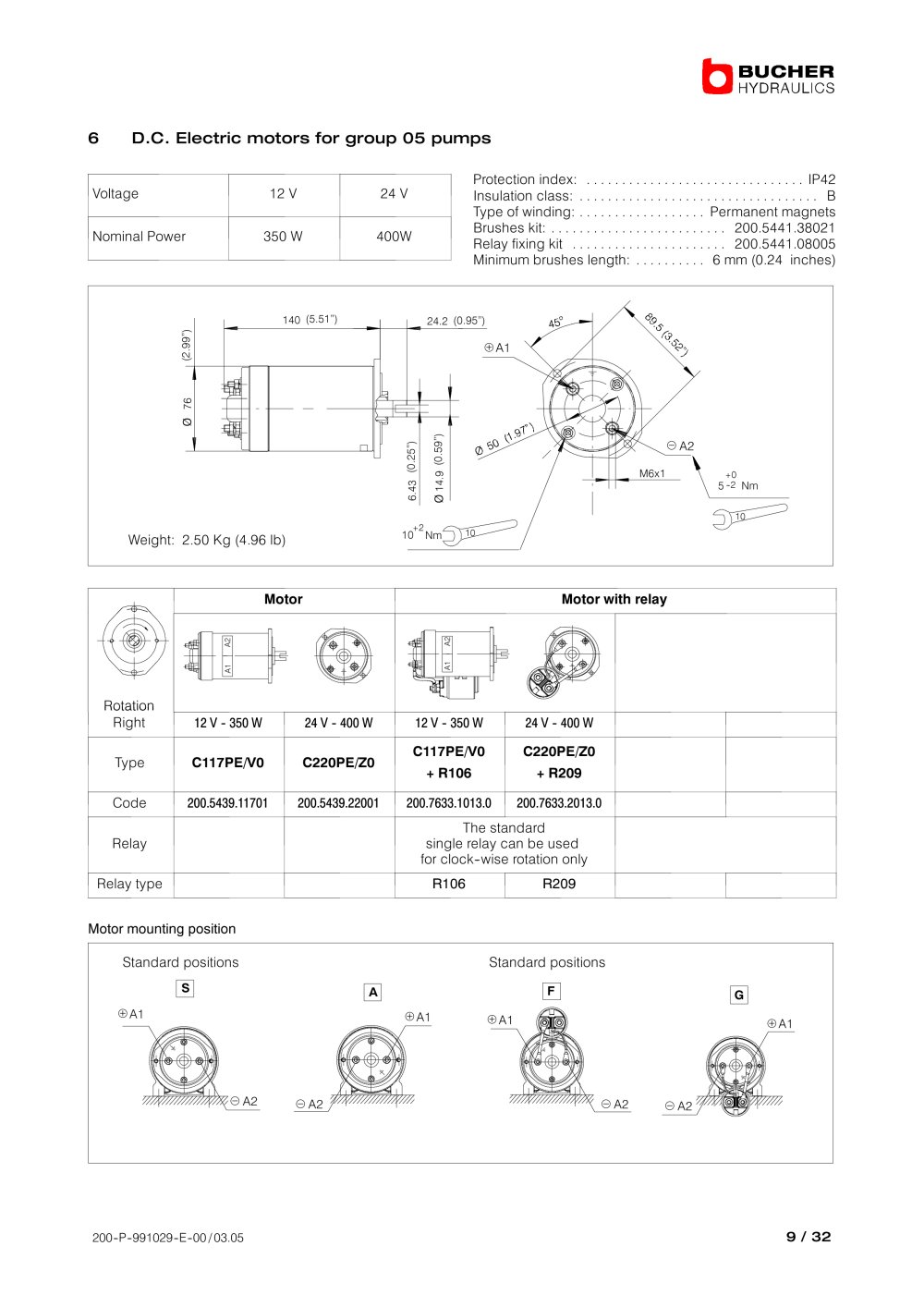

Voltage 12 V 24 V
Nominal Power 350 W 400W
Protection index: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP42
Insulation class: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B
Type of winding: . . . . . . . . . . . . . . . . . . Permanent magnets
Brushes kit: . . . . . . . . . . . . . . . . . . . . . . . . . 200.5441.38021
Relay fixing kit . . . . . . . . . . . . . . . . . . . . . . 200.5441.08005
Minimum brushes length: . . . . . . . . . . 6 mm (0.24 inches)
Weight: 2.50 Kg (4.96 lb)
(0.25”)
(0.59”)
(5.51”) (0.95”)
(2.99”)
10 Nm
+2
10
140 24.2
76
14.9
6.43
M6x1
ø
ø
5 --2 Nm
10
+0
A1
A2
Motor Motor with relay
Rotation
A1 A2
A1 A2
Right 12 V -- 350 W 24 V -- 400 W 12 V -- 350 W 24 V -- 400 W
Type C117PE/V0 C220PE/Z0
C117PE/V0
+ R106
C220PE/Z0
+ R209
Code 200.5439.11701 200.5439.22001 200.7633.1013.0 200.7633.2013.0
Relay
The standard
single relay can be used
for clock--wise rotation only
Relay type R106 R209
Motor mounting position
Standard positions Standard positions
S A F
G
A2
A1
A2 A2 A2
A1 A1 A1
