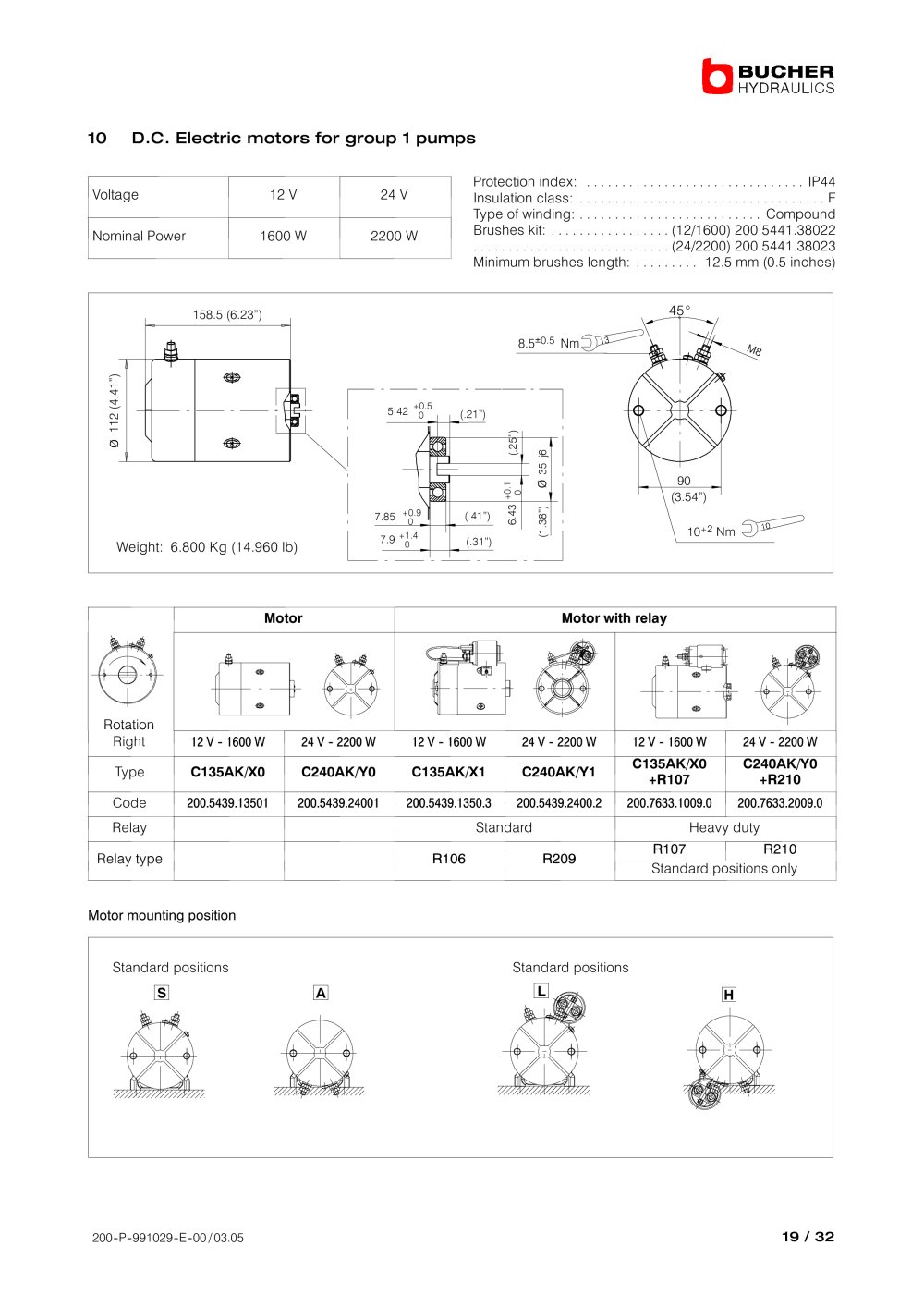

200--P--991029--E--00 / 03.05 NV L PO
NM aK`K bäÉÅíêáÅ ãçíçêë Ñçê Öêçìé N éìãéë
Voltage 12 V 24 V
Nominal Power 1600 W 2200 W
Protection index: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP44
Insulation class: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F
Type of winding: . . . . . . . . . . . . . . . . . . . . . . . . . . Compound
Brushes kit: . . . . . . . . . . . . . . . . . (12/1600) 200.5441.38022
. . . . . . . . . . . . . . . . . . . . . . . . . . . . (24/2200) 200.5441.38023
Minimum brushes length: . . . . . . . . . 12.5 mm (0.5 inches)
Weight: 6.800 Kg (14.960 lb)
(.25”)
(.21”)
(1.38”)
(.31”)
(.41”)
Nm
7.9 +1.4
0
7.85 +0.9
0
5.42
+0.5
0
ø 35 j6
6.43
+0.1
0
158.5 (6.23”)
112 (4.41”)
90
45
ø
8.5±0.5
10+2 Nm
(3.54”)
Motor Motor with relay
Rotation
Right 12 V -- 1600 W 24 V -- 2200 W 12 V -- 1600 W 24 V -- 2200 W 12 V -- 1600 W 24 V -- 2200 W
Type C135AK/X0 C240AK/Y0 C135AK/X1 C240AK/Y1
C135AK/X0
+R107
C240AK/Y0
+R210
Code 200.5439.13501 200.5439.24001 200.5439.1350.3 200.5439.2400.2 200.7633.1009.0 200.7633.2009.0
Relay Standard Heavy duty
Relay type R106 R209
R107 R210
Standard positions only
Motor mounting position
S A L H
Standard positions Standard positions
