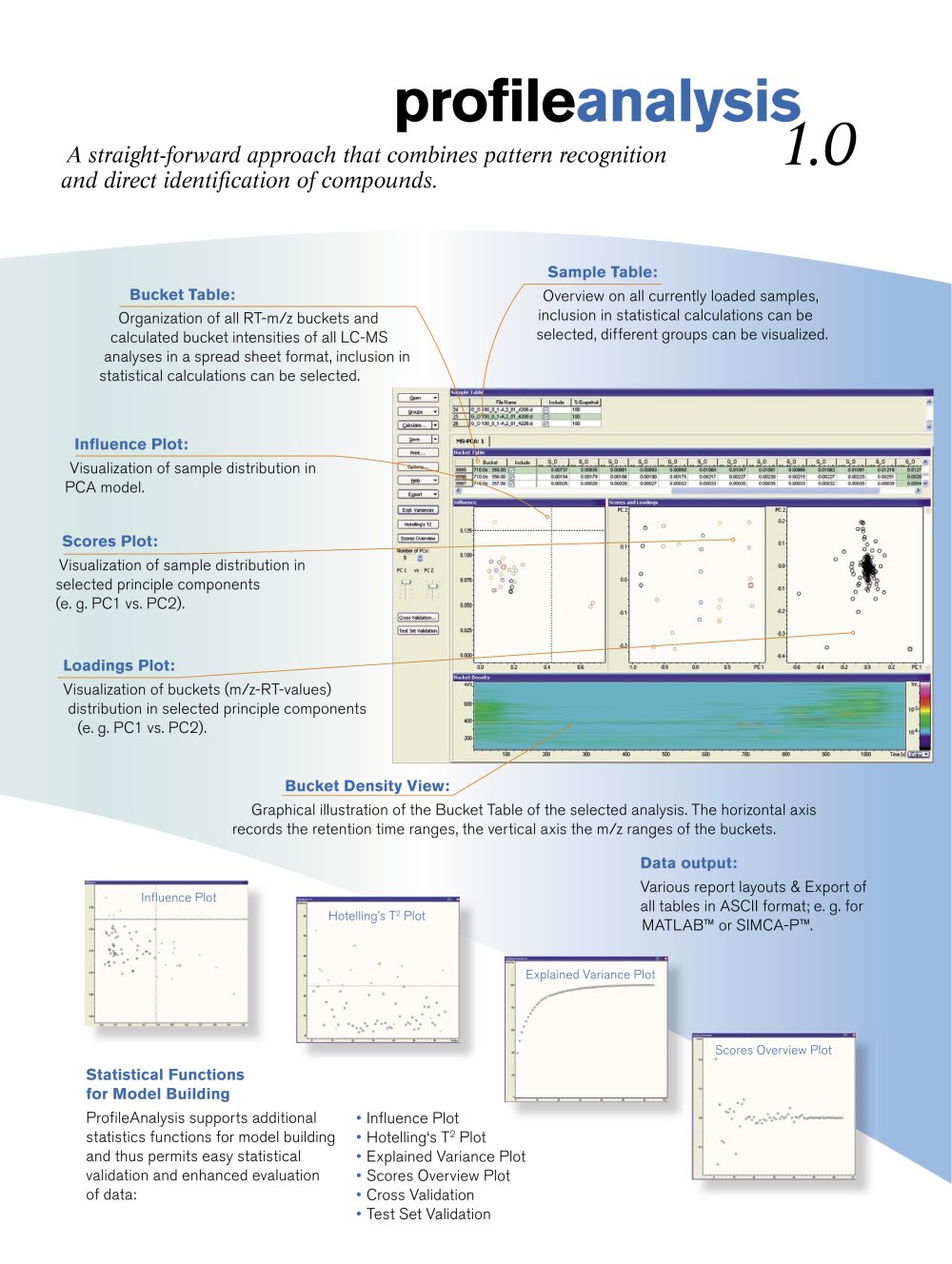

profileana lysi^

A straight-forward approach that c

and direct identification ofcompounds.

Sample Table:

BucketTable:

Organization of all RT-m/z buckets and calculated bucket intensities of all LC-MS analyses in a spread sheet format, inclusion in statistical calculations can be selected.

Influence Plot:

Visualization of sample distribution in PCA model.

Scores Plot:

Visualization of sample distribution in selected principle components (e. g. PC1 vs. PC2).

Loadings Plot:

Visualization of buckets (m/z-RT-values) distribution in selected principle components (e. g. PC1 vs. PC2).

Bucket Density View:

Graphical illustration of the Bucket Table of the selected analysis. The horizontal axis records the retention time ranges, the vertical axis the m/z ranges of the buckets.

Data output:

Various report layouts & Export of all tables in ASCII format; e.g. for MATLAB™ orSIMCA-P™

Infuence Plot

Explained Variance Plot

Scores Overview Plot

Statistical Functions for Model Building

ProfileAnalysis supports additional • Influence Plot

statistics functions for model building • Hotelling's T² Plot

and thus permits easy statistical • Explained Variance Plot

validation and enhanced evaluation • Scores Overview Plot

of data: • Cross Validation

• Test Set Validation
