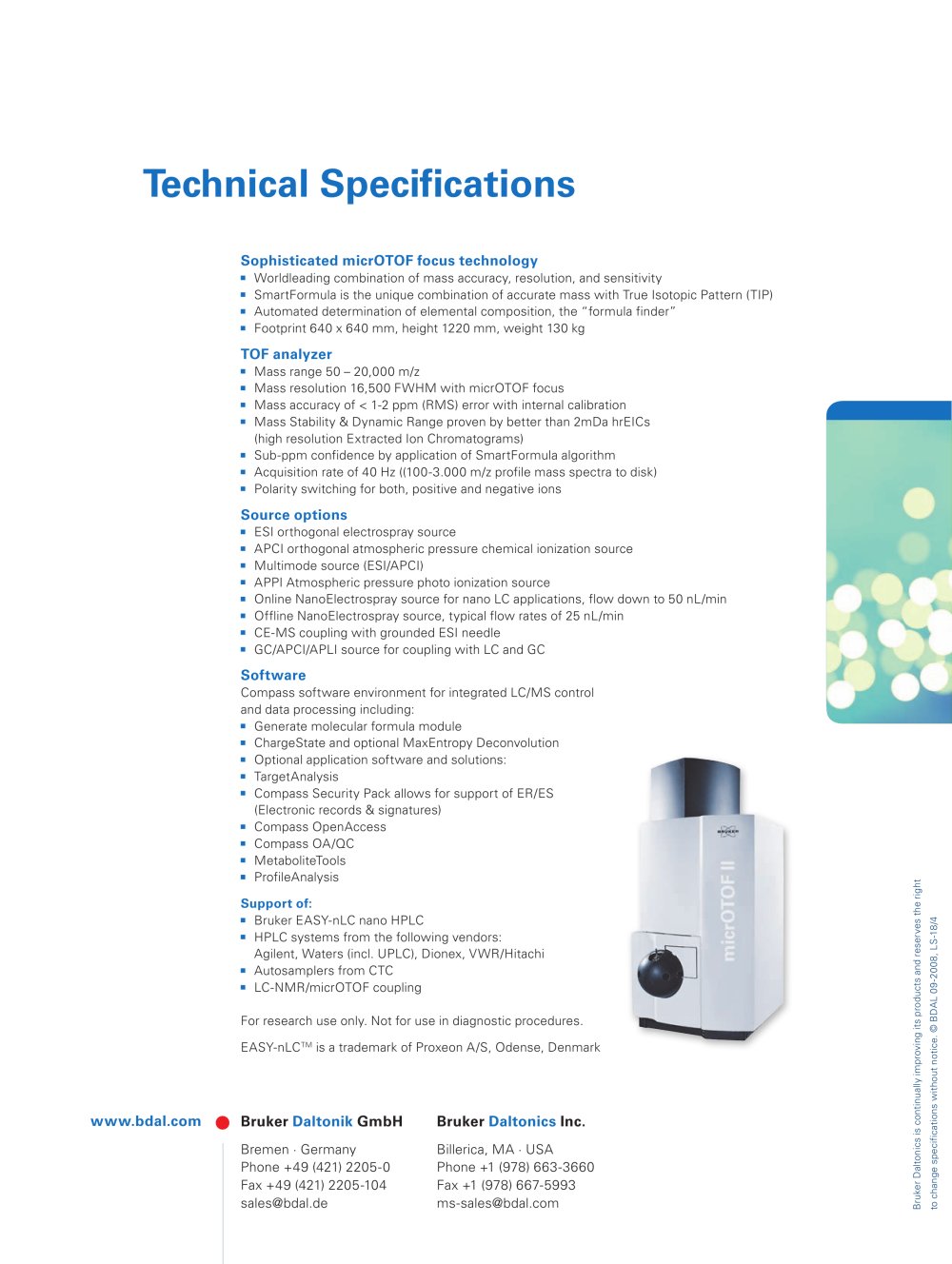

Technical Specifications
Sophisticated micrOTOF focus technology
Worldleading combination of mass accuracy, resolution, and sensitivity SmartFormula is the unique combination of accurate mass with True Isotopic Pattern (TIP) Automated determination of elemental composition, the “formula finder” Footprint 640 x 640 mm, height 1220 mm, weight 130 kg
TOF analyzer
Mass range 50 – 20,000 m/z Mass resolution 16,500 FWHM with micrOTOF focus Mass accuracy of
Source options
ESI orthogonal electrospray source APCI orthogonal atmospheric pressure chemical ionization source Multimode source (ESI/APCI) APPI Atmospheric pressure photo ionization source Online NanoElectrospray source for nano LC applications, flow down to 50 nL/min Offline NanoElectrospray source, typical flow rates of 25 nL/min CE-MS coupling with grounded ESI needle GC/APCI/APLI source for coupling with LC and GC
Software
Compass software environment for integrated LC/MS control and data processing including: Generate molecular formula module ChargeState and optional MaxEntropy Deconvolution Optional application software and solutions: TargetAnalysis Compass Security Pack allows for support of ER/ES (Electronic records & signatures) Compass OpenAccess Compass OA/QC MetaboliteTools ProfileAnalysis Support of: Bruker EASY-nLC nano
HPLC HPLC systems from the following vendors: Agilent, Waters (incl. UPLC), Dionex, VWR/Hitachi Autosamplers from CTC LC-NMR/micrOTOF couplingFor research use only. Not for use in diagnostic procedures. EASY-nLC
TM is a trademark of Proxeon A/S, Odense, Denmark
www.bdal.com Bruker Daltonik GmbH Bruker Daltonics Inc.
Bremen · GermanyPhone +49 (421) 2205-0 Fax +49 (421) 2205-104 sales@bdal.de Billerica, MA · USA
Phone +1 (978) 663-3660 Fax +1 (978) 667-5993 ms-sales@bdal.com
Bruker Daltonics is continually improving its products and reserves the right to change specifications without notice. © BDAL 09-2008, LS-18/4
