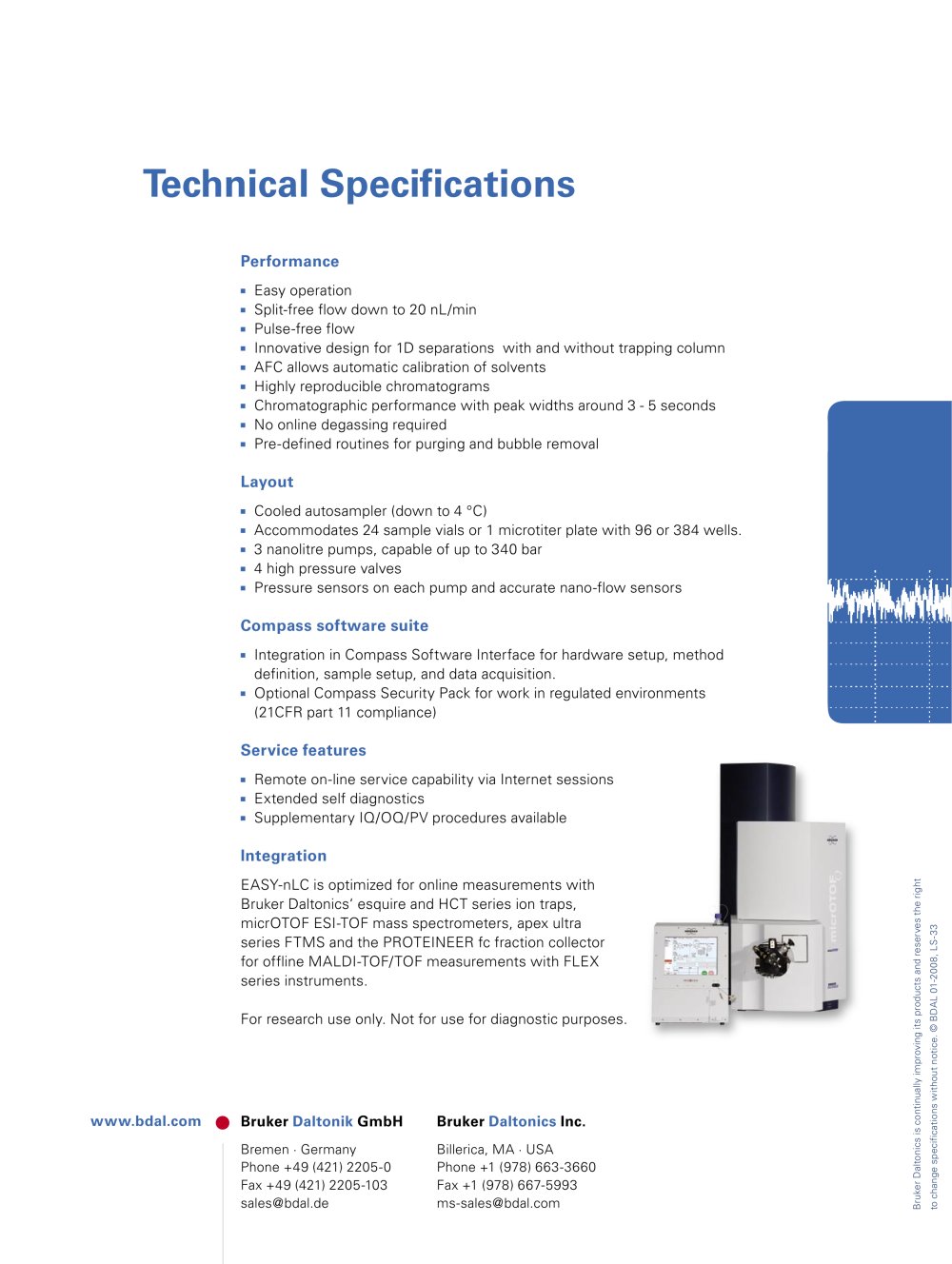

Brochure EASY-nLC - Bruker Daltonics Inc - #6

■ Easy operation

■ Split-freeflowdownto20nl_/min

■ Pulse-free flow

■ InnovativedesignfoMDseparations withandwithouttrappingcolum

■ AFC allows automatic calibration of solvents

■ Highly reproducible chromatograms

■ Chromatographic performance with peak widths around 3 - 5 seconds

■ No online degassing required

■ Pre-defined routines for purging and bubble removal

Cooled autosampler (down to 4 °C)

Accommodates 24 sample vials or 1 microtiter plate with 96 or 384 wells.

3 nanolitre pumps, capable of up to 340 bar

4 high pressure valves

Pressure sensors on each pump and accurate nano-flow sensors Compass software suite

■ Integration in Compass Software Interface for hardware setup, method definition, sample setup, and data acquisition.

■ Optional Compass Security Pack for work in regulated environments (21CFR part 11 compliance)

■ Remote on-line service capability via Internet sessions

■ Extended self diagnostics

■ Supplementary IQ/OQ/PV procedures available

EASY-nLC is optimized foronline measurements with Bruker Daltonics' esquire and HCT series ion traps, micrOTOF ESI-TOF mass spectrometers, apex ultra series FTMS and the PROTEINEER fc fraction collector foroffline MALDI-TOF/TOF measurements with FLEX series instruments.

For research use only. Not for use for diagnostic purposes.

Bremen ■ Germany Phone +49 (421)2205-0 Fax +49 (421) 2205-103 sales@bdal.de

Billerica, MA ■ USA Phone +1 (978) 663-3660 Fax +1 (978) 667-5993 ms-sales@bdal.com
