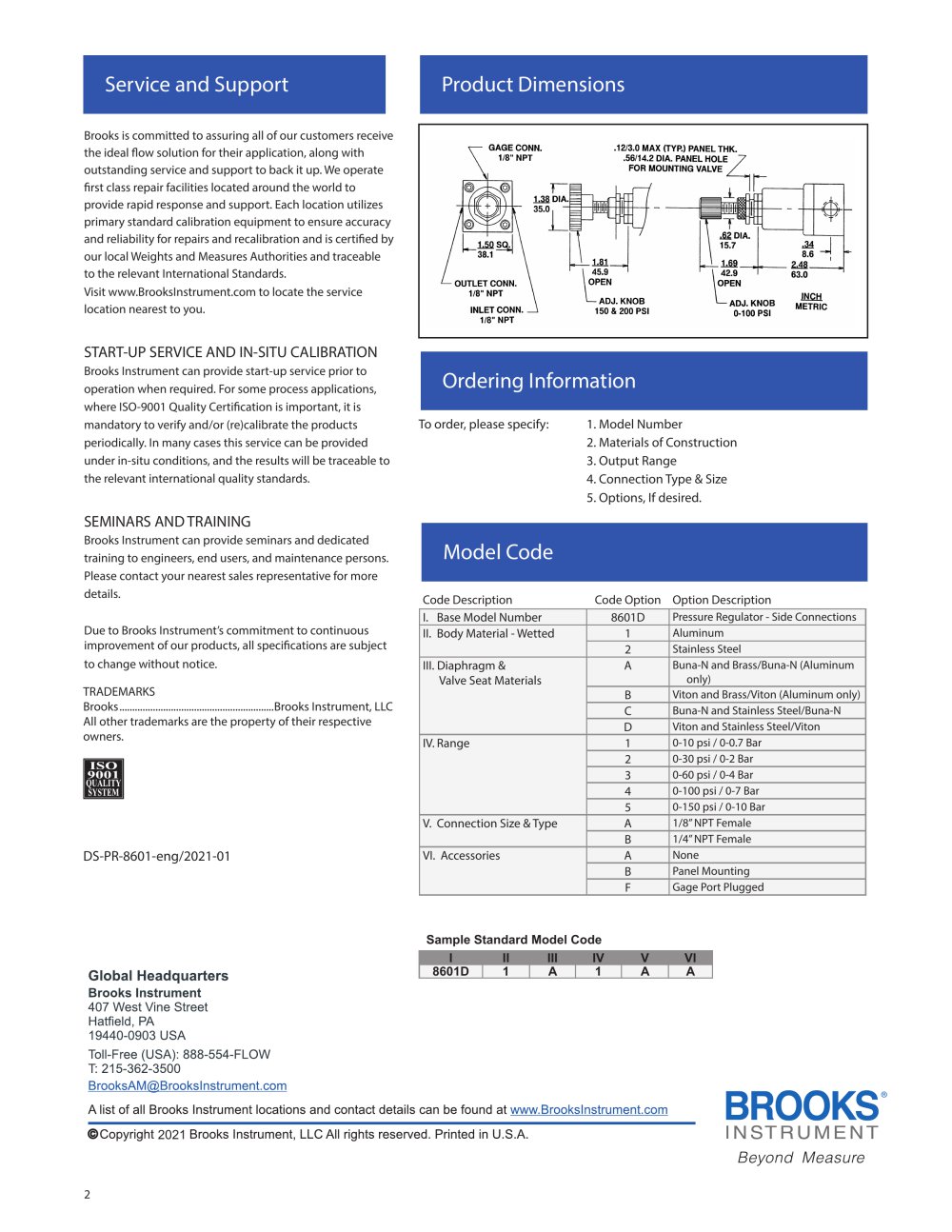

Data Sheet DS-PR-8601-eng November, 2008 Figure 1 Dimensions Table 1 8600 Series ELF Pressure Regulators TRADEMARKS Brooks ........................................................... Brooks Instrument, LLC Viton-A ........................................... DuPont Performance Elastomers BASE MODEL NUMBER PRESSURE REGULATOR 8601D SIDE CONNECTIONS BODY MATERIAL - WETTED 1 ALUMINUM* 2 316 STAINLESS STEEL* DIAPHRAGM AND VALVE SEAT MATERIALS A BUNA-N AND BRASS/BUNA-N (ALUMINUM ONLY)* B VITON AND BRASS/VITON (ALUMINUM ONLY) C BUNA-N AND STAINLESS STEEL/BUNA-N* D VITON AND STAINLESS STEEL/VITON RANGE 1 0-10 PSI* 2 0-30 PSI* 3 0-60 PSI* 4 0-100 PSI* 5 0-150 PSI* 6 0-200 PSI* CONNECTION SIZE AND TYPE A 1/8" NPT INTEGRAL* B 1/4" NPT C 1/8" COMPRESSION TUBE D 1/4" COMPRESSION TUBE E 1/4" I.D. HOSE ACCESSORIES (UP TO 3 DIGIT CODE) A NONE* B PANEL MOUNTING* C DEGREASE FOR OXYGEN SERVICE* D NO VALVE KNOB E NO BROOKS LOGO F GAGE PORT PLUGGED * ANY COMBINATION OF THESE SELECTIONS WILL CARRY UL APPROVAL Example: 8601D1A1AA Ordering Information To order, please specify 1. Model number 2. Materials of construction 3. Output range 4. Connection type & size 5. Options, if desired
