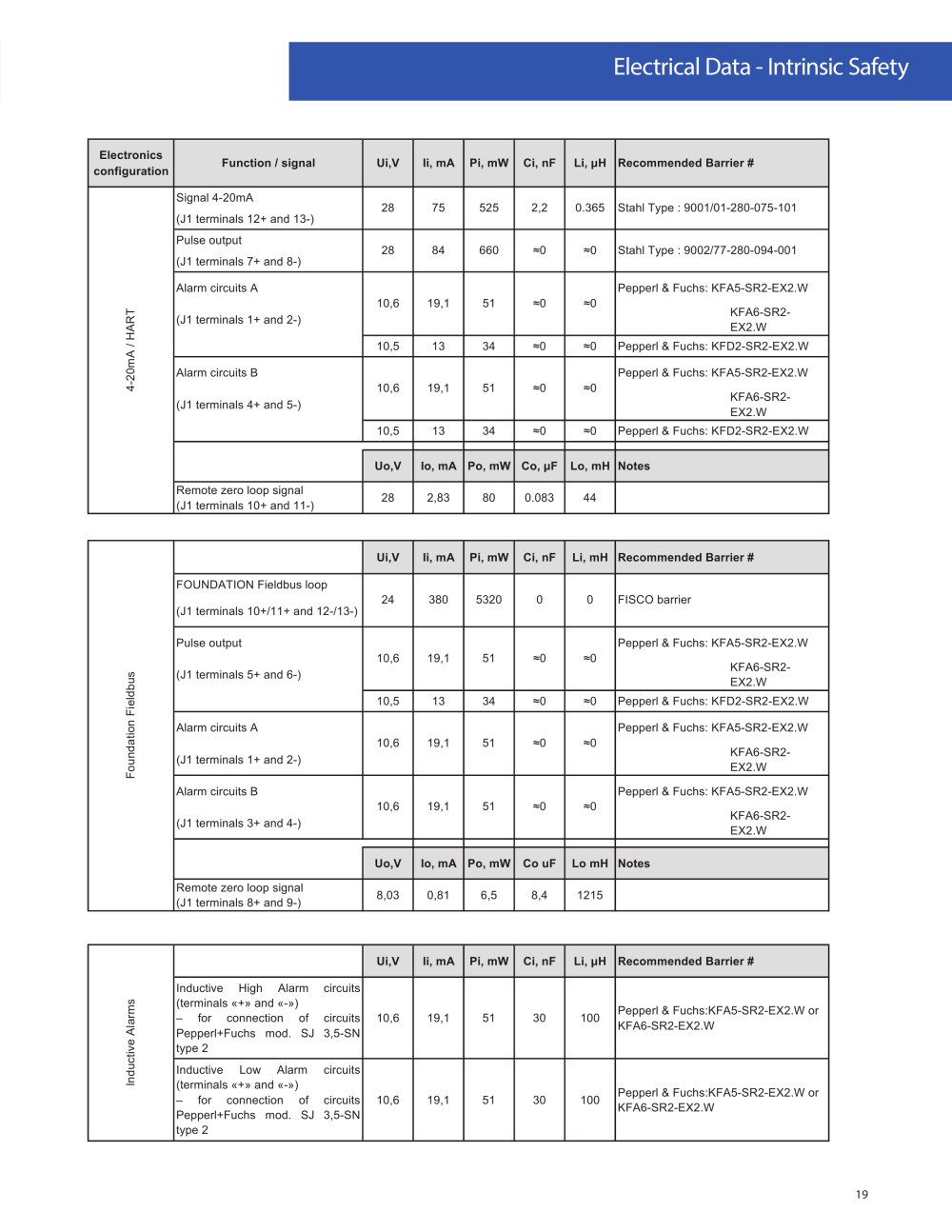

19 Models MT 3809 & 3819 Data Sheet DS-VA-MT3809-3819-eng September, 2008 METER ACCURACY/SCALE INSCRIPTION/FLUID CODE METER ACCURACY SCALE INSCRIPTION FLUID G 2% FULL SCALE % SCALE LIQUID H 2% FULL SCALE DIRECT LIQUID J 2% FULL SCALE % SCALE GAS K 2% FULL SCALE DIRECT GAS L 2% FULL SCALE % SCALE LIQUID HIGH VISCOSITY (SEE CAPACITY TABLE FOR LIMITS) M 2% FULL SCALE DIRECT LIQUID HIGH VISCOSITY (SEE CAPACITY TABLE FOR LIMITS) A 1% FULL SCALE % SCALE LIQUID B 1% FULL SCALE DIRECT LIQUID C 1% FULL SCALE % SCALE GAS D 1% FULL SCALE DIRECT GAS 4 2% FULL SCALE Dual Scales % and/or Direct* LIQUID 5 2% FULL SCALE Dual Scales % and/or Direct* GAS 6 2% FULL SCALE Dual Scales % and/or Direct* LIQUID HIGH VISCOSITY (SEE CAPACITY TABLE FOR LIMITS) 1 1% FULL SCALE Dual Scales % and/or Direct* LIQUID 2 1% FULL SCALE Dual Scales % and/or Direct* GAS *Dual inscription scales are not available with any 4-20 mA transmitter or alarm options | INDICATION CONFIGURATION | CODE HOUSING MATERIAL FINISH INDICATOR FUNCTION | A Standard Aluminum Polyurethane Indictor only | B Standard Aluminum Polyurethane Inductive Alarm only, 1 Switch | C Standard Aluminum Polyurethane Inductive Alarm only, 2 Switches | D Standard Aluminum Polyurethane 4-20 mA uP Transmitter only | E Standard Aluminum Polyurethane 4-20mA uP Xmtr & Inductive Alarm 1 Sw | F Standard Aluminum Polyurethane 4-20mA uP Xmtr & Inductive Alarm 2 Sw | G Standard Aluminum Polyurethane 4-20mA uP Xmtr w/Pulse Output & Alarm Contacts | H Standard Aluminum Epoxy Indictor only | J Standard Aluminum Epoxy Inductive Alarm only, 1 Switch | K Standard Aluminum Epoxy Inductive Alarm only, 2 Switch | L Standard Aluminum Epoxy 4-20 mA uP Transmitter only | M Standard Aluminum Epoxy 4-20mA uP Xmtr & Inductive Alarm 1 Sw | N Standard Aluminum Epoxy 4-20mA uP Xmtr & Inductive Alarm 2 Sw | P Standard Aluminum Epoxy 4-20mA uP Xmtr w/Pulse Output & Alarm Contacts | Q Corrosion Resistant Stn. Stl. Grit Blast Indicator only | R Corrosion Resistant Stn. Stl. Grit Blast Inductive Alarm only, 1 Switch | S Corrosion Resistant Stn. Stl. Grit Blast Inductive Alarm only, 2 Switch | T Corrosion Resistant Stn. Stl. Grit Blast 4-20 mA uP Transmitter only | U Corrosion Resistant Stn. Stl. Grit Blast 4-20mA uP Xmtr & Inductive Alarm 1 Sw | V Corrosion Resistant Stn. Stl. Grit Blast 4-20mA uP Xmtr & Inductive Alarm 2 Sw | W Corrosion Resistant Stn. Stl. Grit Blast 4-20mA uP Xmtr w/Pulse Output & Alarm Contacts | 1 Ex. Proof Aluminum Epoxy Inductive Alarm only, 1 Switch | 2 Ex. Proof Aluminum Epoxy Inductive Alarm only, 2 Switch | 3 Ex. Proof Aluminum Epoxy 4-20 mA uP Transmitter only | 4 Ex. Proof Aluminum Epoxy 4-20mA uP Xmtr & Inductive Alarm 1 Sw | 5 Ex. Proof Aluminum Epoxy 4-20mA uP Xmtr & Inductive Alarm 2 Sw | 6 Ex. Proof Aluminum Epoxy 4-20mA uP Xmtr W/Pulse Output & Alarm Contacts | | | | | | | | | | | | | | 3809E11C1 G A Table 4 Ordering Information and Model Code (Continued)
