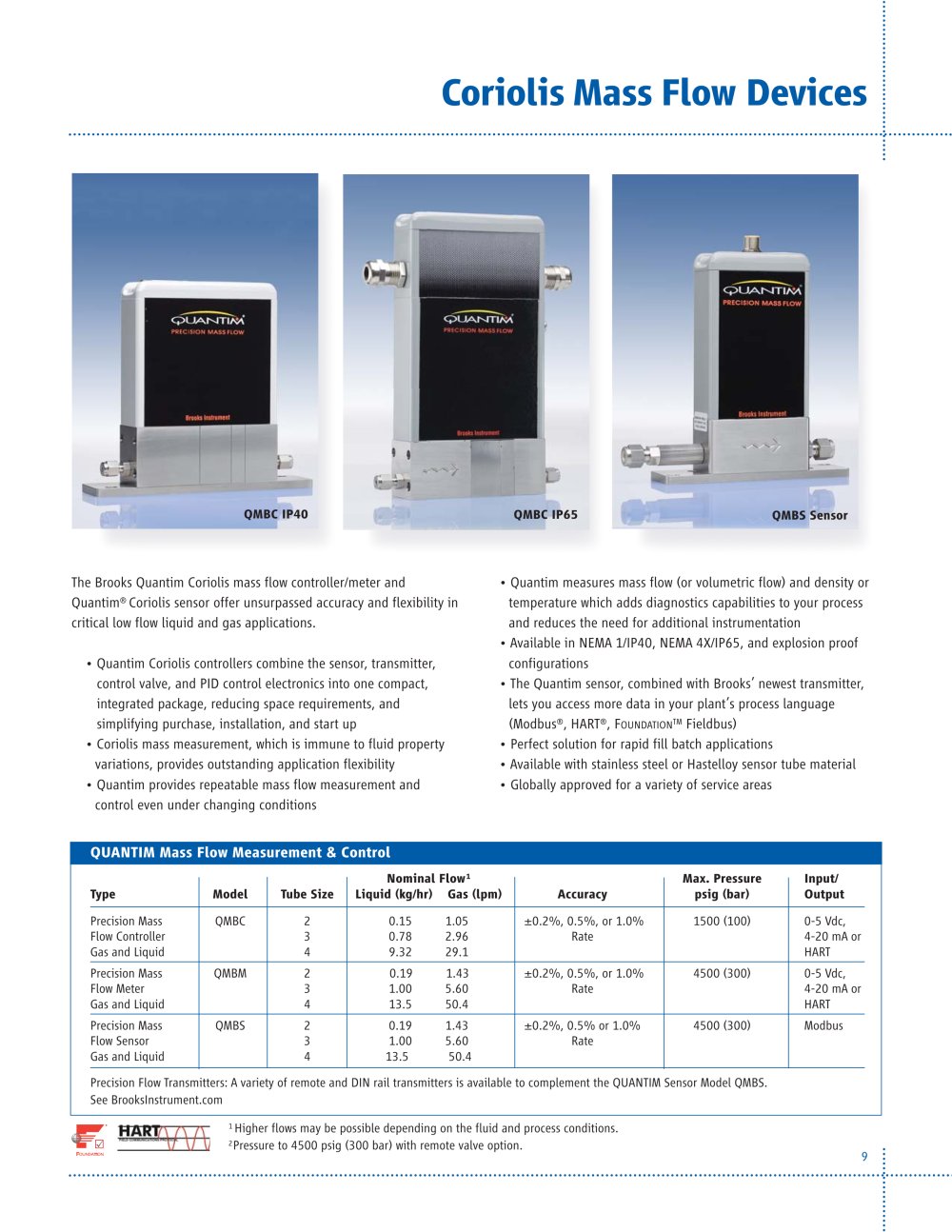

CoriolisMassFlow Devices

QMBCIP40QMBCIP65QMBSSensor

The Brooks Quantim Coriolis mass flow controller/meter and Quantim

®

Coriolis sensor offer unsurpassed accuracy and flexibility incritical low flow liquid and gas applications. • Quantim Coriolis controllers combine the sensor, transmitter, control valve, and PID control electronics into one compact, integrated package, reducing space requirements, and simplifying purchase, installation, and start up• Coriolis mass measurement, which is immune to fluid property variations, provides outstanding application flexibility• Quantim provides repeatable mass flow measurement and control even under changing conditions • Quantim measures mass flow (or volumetric flow) and density or temperature which adds diagnostics capabilities to your process and reduces the need for additional instrumentation• Available in NEMA 1/IP40, NEMA 4X/IP65, and explosion proof configurations• The Quantim sensor, combined with Brooks’ newest transmitter, lets you access more data in your plant’s process language (Modbus

®

, HART

®

, F

OUNDATION TM

Fieldbus)• Perfect solution for rapid fill batch applications • Available with stainless steel or Hastelloy sensor tube material• Globally approved for a variety of service areas

QUANTIMMass Flow Measurement & Control

Nominal Flow
1 Max. PressureInput/ TypeModelTube SizeLiquid (kg/hr) Gas (lpm)Accuracypsig (bar)Output Precision Mass QMBC2 0.15 1.05 ±0.2%, 0.5%, or 1.0%1500 (100) 0-5 Vdc,Flow Controller3 0.78 2.96Rate4-20 mA or Gas and Liquid49.32 29.1HARTPrecision Mass QMBM2 0.19 1.43±0.2%, 0.5%, or 1.0% 4500 (300) 0-5 Vdc, Flow Meter31.00 5.60Rate4-20 mA or Gas and Liquid413.5 50.4HARTPrecision Mass QMBS20.19 1.43±0.2%, 0.5% or 1.0%4500 (300)ModbusFlow Sensor31.00 5.60Rate Gas and Liquid413.5 50.4Precision FlowTransmitters: A variety of remote and DIN rail transmitters is available to complement the QUANTIM Sensor Model QMBS. See BrooksInstrument.com
1 Higher flows may be possible depending on the fluid and process conditions.
2 Pressure to 4500 psig (300 bar) with remote valve option. 9
