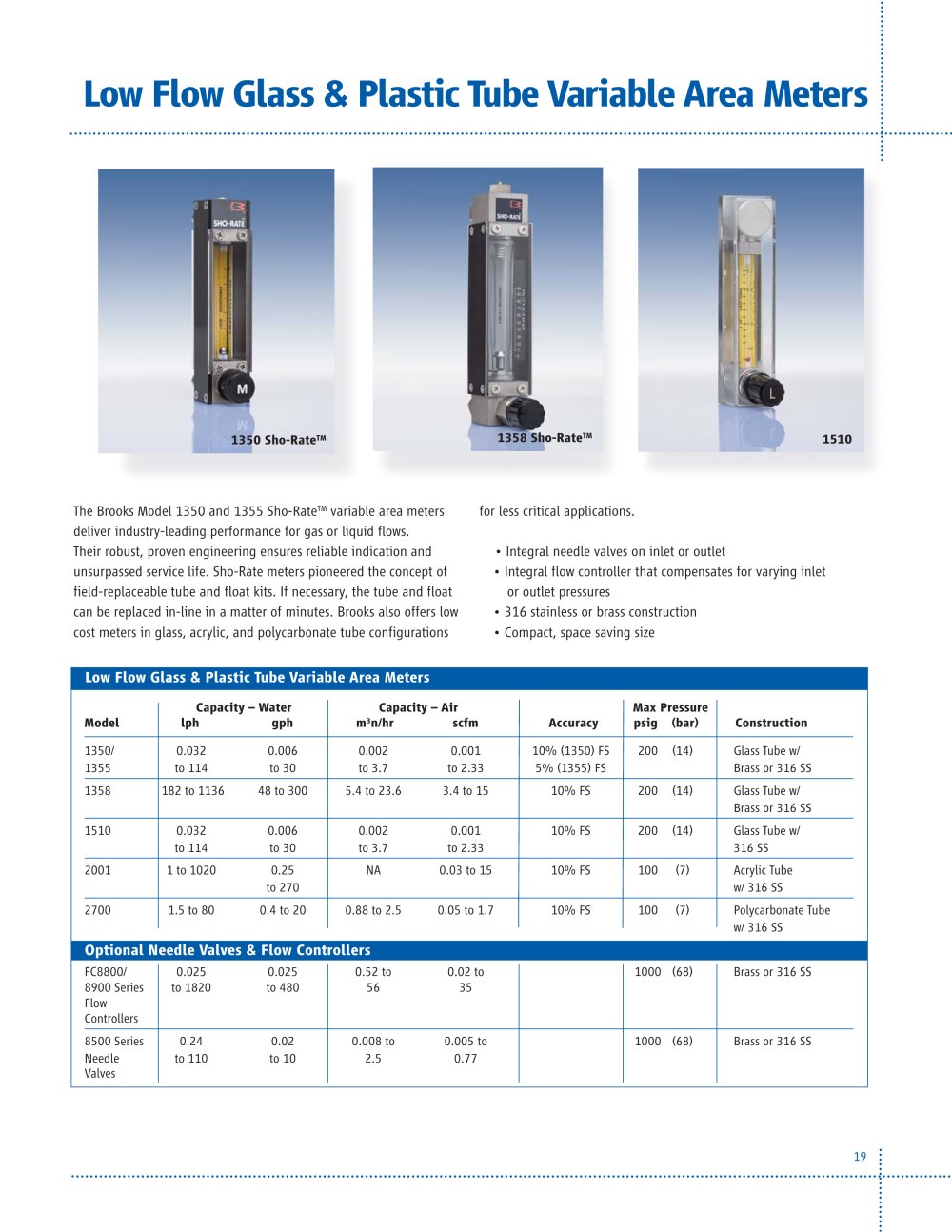

Low Flow Glass & Plastic Tube Variable Area Meters

The Brooks Model 1350 and 1355 Sho-Rate™ variable area meters for less critical applications. deliver industry-leading performance for gas or liquid flows.

Their robust, proven engineering ensures reliable indication and unsurpassed service life. Sho-Rate meters pioneered the concept of field-replaceable tube and float kits. If necessary, the tube and float can be replaced in-line in a matter of minutes. Brooks also offers low cost meters in glass, acrylic, and polycarbonate tube configurations

• Integral needle valves on inlet or outlet

• Integral flow controller that compensates for varying inlet or outlet pressures

• 316 stainless or brass construction

• Compact, space saving size

Low Flow Glass & Plastic Tube Variable Area Meters


Model	Capacity lph	- Water gph	Capacity m³n/hr	- Air scfm	Accuracy	Max Pressure psig (bar)		Construction
1350/ 1355	0.032 to 114	0.006 to 30	0.002 to 3.7	0.001 to 2.33	10% (1350) FS 5% (1355) FS	200	(14)	Glass Tube w/ Brass or 316 SS
1358	182 to 1136	48 to 300	5.4 to 23.6	3.4 to 15	10% FS	200	(14)	Glass Tube w/ Brass or 316 SS
1510	0.032 to 114	0.006 to 30	0.002 to 3.7	0.001 to 2.33	10% FS	200	(14)	Glass Tube w/ 316 SS
2001	1 to 1020	0.25 to 270	NA	0.03 to 15	10% FS	100	(7)	Acrylic Tube w/ 316 SS
2700	1.5 to 80	0.4 to 20	0.88 to 2.5	0.05 to 1.7	10% FS	100	(7)	Polycarbonate Tube w/ 316 SS
Optional Needle Valves & Flow Controllers
FC8800/ 8900 Series Flow Controllers	0.025 to 1820	0.025 to 480	0.52 to 56	0.02 to 35		1000	(68)	Brass or 316 SS
8500 Series Needle Valves	0.24 to 110	0.02 to 10	0.008 to 2.5	0.005 to 0.77		1000	(68)	Brass or 316 SS
