5850EM Metal Sealed Mass Flow Controller - Brooks Instrument - #4

Text version of the page

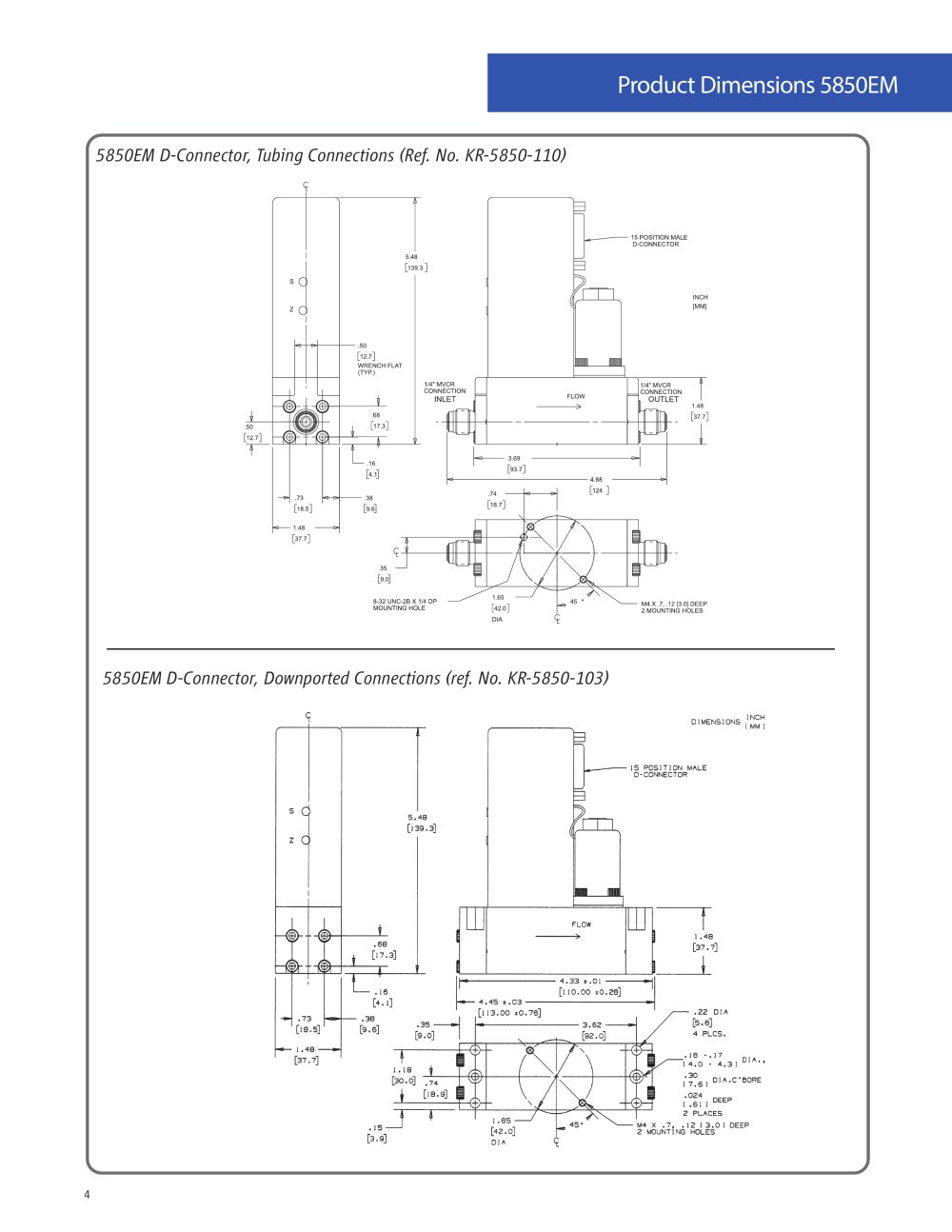

4 Data Sheet DS-TMF-5850EM-MFC-eng October, 2008 Brooks® Model 5850EM Figure 2 Model 5850EM D-Connector Dimensions Downported Ref. No. KR-5850-103 Ref. No. KR-5850-110 Tubing Connections BROOKS SERVICE AND SUPPORT Brooks is committed to assuring all of our customers receive the ideal flow solution for their application, along with outstanding service and support to back it up. We operate first class repair facilities located around the world to provide rapid response and support. Each location utilizes primary standard calibration equipment to ensure accuracy and reliability for repairs and recalibration. The primary standard calibration equipment to calibrate our flow products is certified by our local Weights and Measures Authorities and traceable to the relevant International Standards. Visit www.BrooksInstrument.com to locate the service location nearest to you. START-UP SERVICE AND IN-SITU CALIBRATION Brooks Instrument can provide start-up service prior to operation when required. For some process applications, where ISO-9001 Quality Certification is important, it is mandatory to verify and/or (re)calibrate the products periodically. In many cases this service can be provided under in-situ conditions, and the results will be traceable to the relevant international quality standards. CUSTOMER SEMINARS AND TRAINING Brooks can provide customer seminars and dedicated training to engineers, end users and maintenance persons. Please contact your nearest sales representative for more details. HELP DESK In case you need technical assistance: Americas 1-888-554-FLOW Europe +(31) 318 549 290 Within Netherlands 0318 549 290 Asia +011-81-3-5633-7100 Due to Brooks Instrument's commitment to continuous improvement of our products, all specifications are subject to change without notice.
