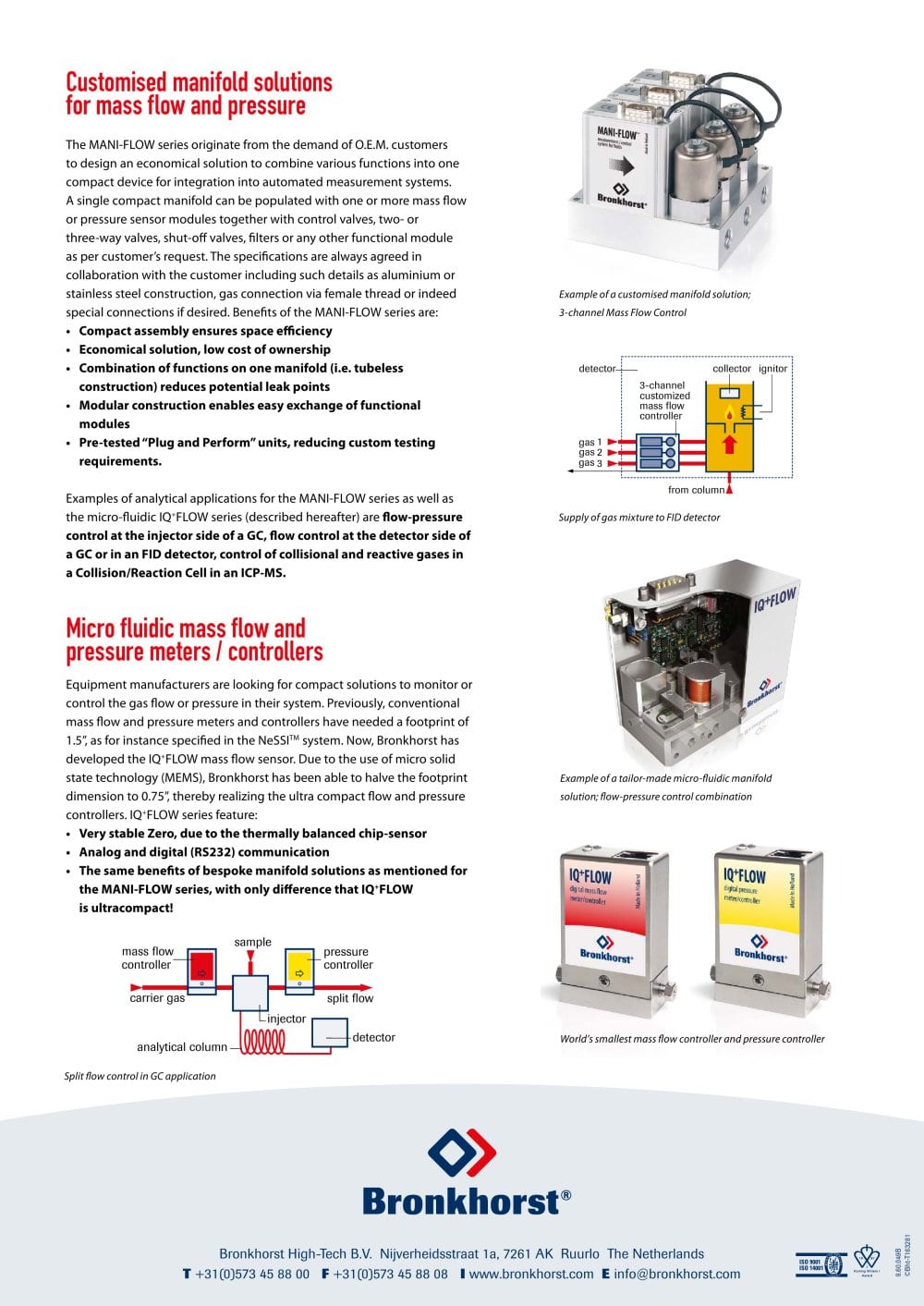

> Customised manifold solutions for mass flow and pressure

The MANI-FLOW series originate from the demand of O.E.M. customers to design an economical solution to combine various functions into one compact device for integration into automated measurement systems. A great many solutions have now been designed and manufactured since the launch of the concept back in 1996. A single compact manifold can be populated with one or more mass flow or pressure sensor modules together with control valves, two- or three-way valves, shut-off valves, filters or any other functional module as per customer’s request. The specifications are always agreed in collaboration with the customer including such details as aluminium or stainless steel construction, gas connection via female thread or indeed special connections if desired.Benefits of the MANI-FLOW series are:
Example of a customised manifold solution; 3-channel Mass Flow Control Supply of gas mixture to FID detector â—† Compact assembly ensures space efficiency â—† Economical solution, low cost of ownership â—† Combination of functions on one manifold (i.e. tubeless construc-tion) reduces potential leak points
detector collector ignitor â—† Modular construction enables easy exchange of functional modules â—† Pre-tested “Plug and Play” units, reducing custom testing requirements.Examples of analytical applications for the MANI-FLOW series as well as the micro-fluidic IQ
gas 12 + FLOW series (described hereafter) are
gas 33-channelcustomized mass flow controller flow-pressure control at the injector side of a GC, flow control at the detector side of a GC or in an FID detector.
from columngas

> Micro fluidic mass flow and pressure meters / controllers

Equipment manufacturers are looking for compact solutions to monitor or control the gas flow or pressure in their system. Previously, conven- tional mass flow and pressure meters and controllers have needed a footprint of 1.5”, as for instance specified in the NeSSI
TM system. Now, Bronkhorst High-Tech has developed the IQ
+ FLOW mass flow sensor. Due to the use of micro solid state technology (MEMS), Bronkhorst has been able to halve the footprint dimension to 0.75”, thereby realizing the ultra compact flow and pressure controllers. IQ
+ FLOW series feature: â—† Very stable Zero, due to the thermally balanced chip-sensor â—† Analog and digital (RS232) communication
Example of a tailor-made micro-fluidic manifold solution; flow-pressure control combination â—† The same benefits of bespoke manifold solutions as mentioned for the MANI-FLOW series, with only difference that IQ
+ FLOW is ultracompact!
sample mass flowcontrollerpressure controller carrier gas split flow injector detector analytical column World’s smallest mass flow controller and pressure controllerSplit flow control in GC application Nijverheidsstraat 1a, NL-7261 AK Ruurlo The Netherlands T +31(0)573 45 88 00 F +31(0)573 45 88 08 I www.bronkhorst.com E info@bronkhorst.com E.ANM.0206.BBHT6004©CAPAY
