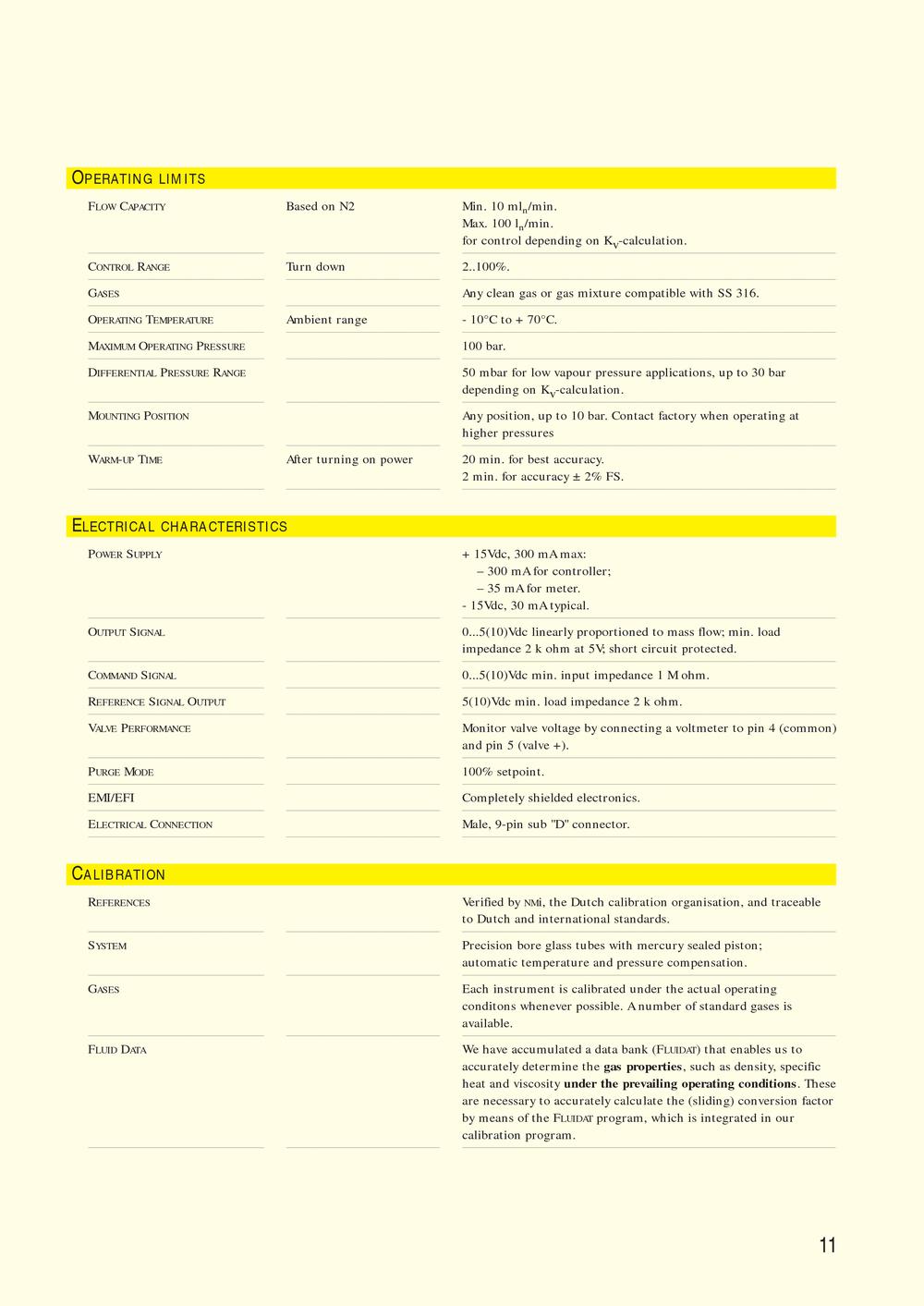

O

PERATINGLIMITS

F
LOW C
APACITY Based on N2Min. 10 ml
n /min.Max. 100 l
n /min.for control depending on Kv-calculation.C
ONTROL R
ANGE Turn down2..100%.G
ASES Any clean gas or gas mixture compatible with SS 316.O
PERATING T
EMPERATURE Ambient range- 10°C to + 70°C.M
AXIMUM O
PERATING P
RESSURE 100 bar.D
IFFERENTIAL P
RESSURE R
ANGE 50 mbar for low vapour pressure applications, up to 30 bar depending on Kv-calculation.M
OUNTING P
OSITION Any position, up to 10 bar. Contact factory when operating athigher pressuresW
ARM -
UP T
IME After turning on power20 min. for best accuracy.2 min. for accuracy ±2% FS.

E

LECTRICALCHARACTERISTICS

P
OWER S
UPPLY + 15Vdc, 300 mA max:– 300 mA for controller; – 35 mA for meter.- 15Vdc, 30 mA typical.O
UTPUT S
IGNAL 0...5(10)Vdc linearly proportioned to mass flow; min. load impedance 2 k ohm at 5V; short circuit protected.C
OMMAND S
IGNAL 0...5(10)Vdc min. input impedance 1 M ohm.R
EFERENCE S
IGNAL O
UTPUT 5(10)Vdc min. load impedance 2 k ohm.V
ALVE P
ERFORMANCE Monitor valve voltage by connecting a voltmeter to pin 4 (common) and pin 5 (valve +).P
URGE M
ODE 100% setpoint.EMI/EFICompletely shielded electronics. E
LECTRICAL C
ONNECTION Male, 9-pin sub "D" connector.

C

ALIBRATION

R
EFERENCES Verified by
NM i, the Dutch calibration organisation, and traceable to Dutch and international standards.S
YSTEM Precision bore glass tubes with mercury sealed piston; automatic temperature and pressure compensation.G
ASES Each instrument is calibrated under the actual operating conditons whenever possible. A number of standard gases is available.F
LUID D
ATA Wehave accumulated a data bank (F
LUIDAT ) that enables us to accurately determine the gas properties , such as density, specific heat and viscosity under the prevailing operating conditions . These are necessary to accurately calculate the (sliding) conversion factor by means of the F
LUIDAT program, which is integrated in our calibration program.
