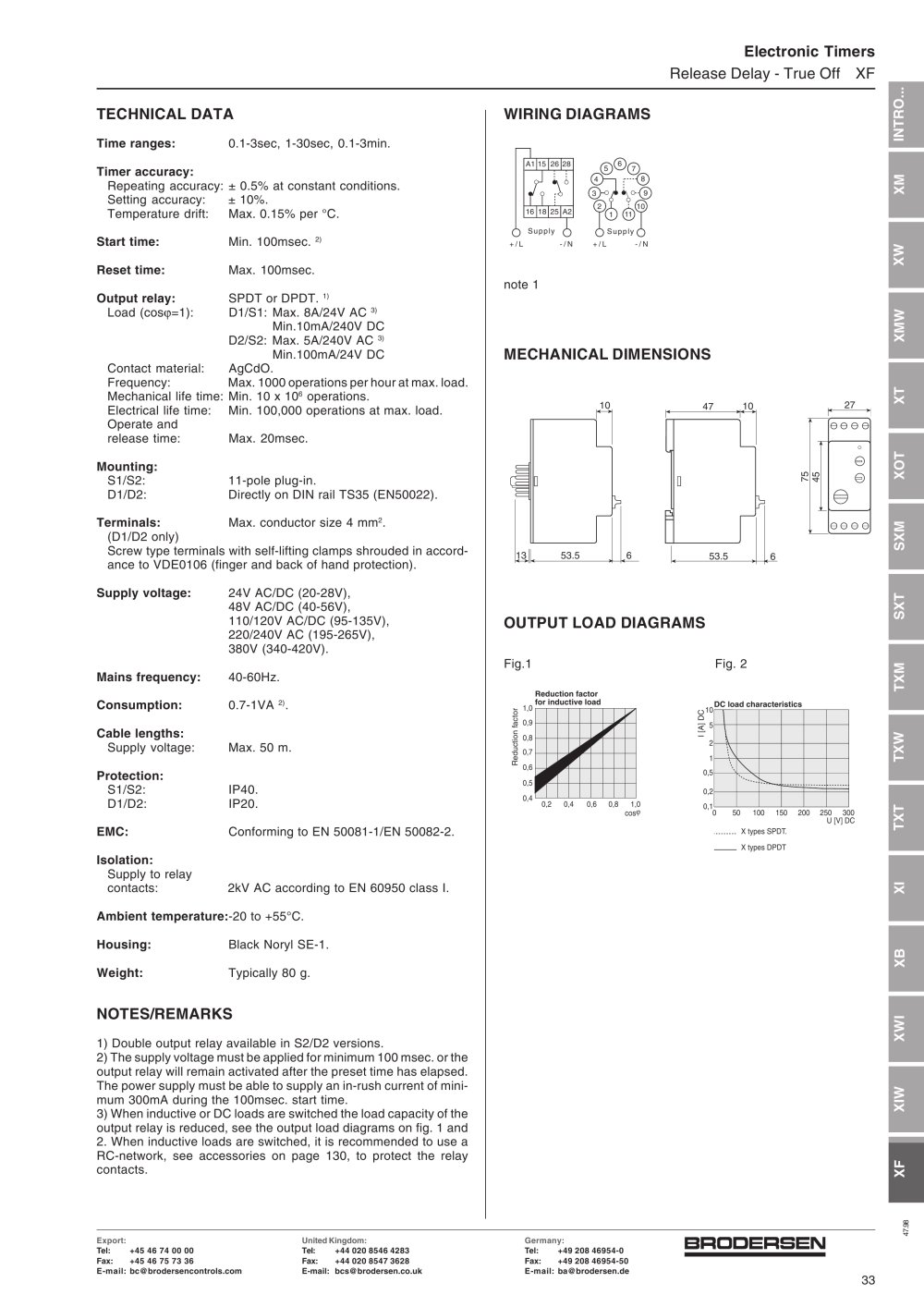

Electronic Timers

Release Delay - True Off XF

TECHNICAL DATA

Time ranges: 0.1-3sec, 1-30sec, 0.1-3min.

Timer accuracy:

Repeating accuracy: ± 0.5% at constant conditions. Setting accuracy: ± 10%. Temperature drift: Max. 0.15% per °C.

WIRING DIAGRAMS

r-Z

A1|15|26|28~

©—I ■-■©

16 18 25

Ö Supply o OSupplyQ

+ /L -/N +/L -/N

Min. 100msec. ²⁾Max. 100msec.

Start time: Reset time:

note 1

SPDT or DPDT. ¹⁾D1/S1: Max. 8A/24V AC ³⁾

Min.10mA/240V DC D2/S2: Max. 5A/240V AC ³⁾Min.100mA/24V DC

Output relay:

Load (costp=1):

5 X

MECHANICAL DIMENSIONS

Contact material: Frequency:

AgCdO.

Max. 1000 operations per hour at max. load.

Mechanical life time: Min. 10 x 10⁶ operations. Electrical life time: Min. 100,000 operations at max. load. Operate and

release time: Max. 20msec.

47 10

eeee

Mounting:

S1/S2: D1/D2:

nil ^1

11-pole plug-in.

Directly on DIN rail TS35 (EN50022). Max. conductor size 4 mm².

Terminals:

eeee

(D1/D2 only)

Screw type terminals with self-lifting clamps shrouded in accordance to VDE0106 (finger and back of hand protection).

X C/5

[13^ 53.5

53.5

Supply voltage:

24V AC/DC (20-28V), 48V AC/DC (40-56V), 110/120V AC/DC (95-135V), 220/240V AC (195-265V),

380V (340-420V).

40-60Hz. 0.7-1VA ²⁾.

t/5

OUTPUT LOAD DIAGRAMS

Fig. 2

Fig.1

Mains frequency: Consumption:

Cable lengths:

Supply voltage:

Protection:

S1/S2:

D1/D2: EMC:

Isolation:

Supply to relay

Reduction factor for inductive load

DC load characteristics

O Q

0,9

■a cr

0,8

Max. 50 m.

0,7

0,6

0,5

IP40. IP20.

Conforming to EN 50081-1/EN 50082-2.

0,2

0,4

0,2 0,4 0,6 0,8 1,0 cost

0 50 100 150 200 250 300 U [V] DC

......... X types SPDT.

X types DPDT

2kV AC according to EN 60950 class I. Ambient temperature:-20 to +55°C. Housing: Black Noryl SE-1.

Weight: Typically 80 g.

NOTES/REMARKS

1) Double output relay available in S2/D2 versions.

2) The supply voltage must be applied for minimum 100 msec. or the output relay will remain activated after the preset time has elapsed. The power supply must be able to supply an in-rush current of minimum 300mA during the 100msec. start time.

3) When inductive or DC loads are switched the load capacity of the output relay is reduced, see the output load diagrams on fig. 1 and 2. When inductive loads are switched, it is recommended to use a RC-network, see accessories on page 130, to protect the relay contacts.
