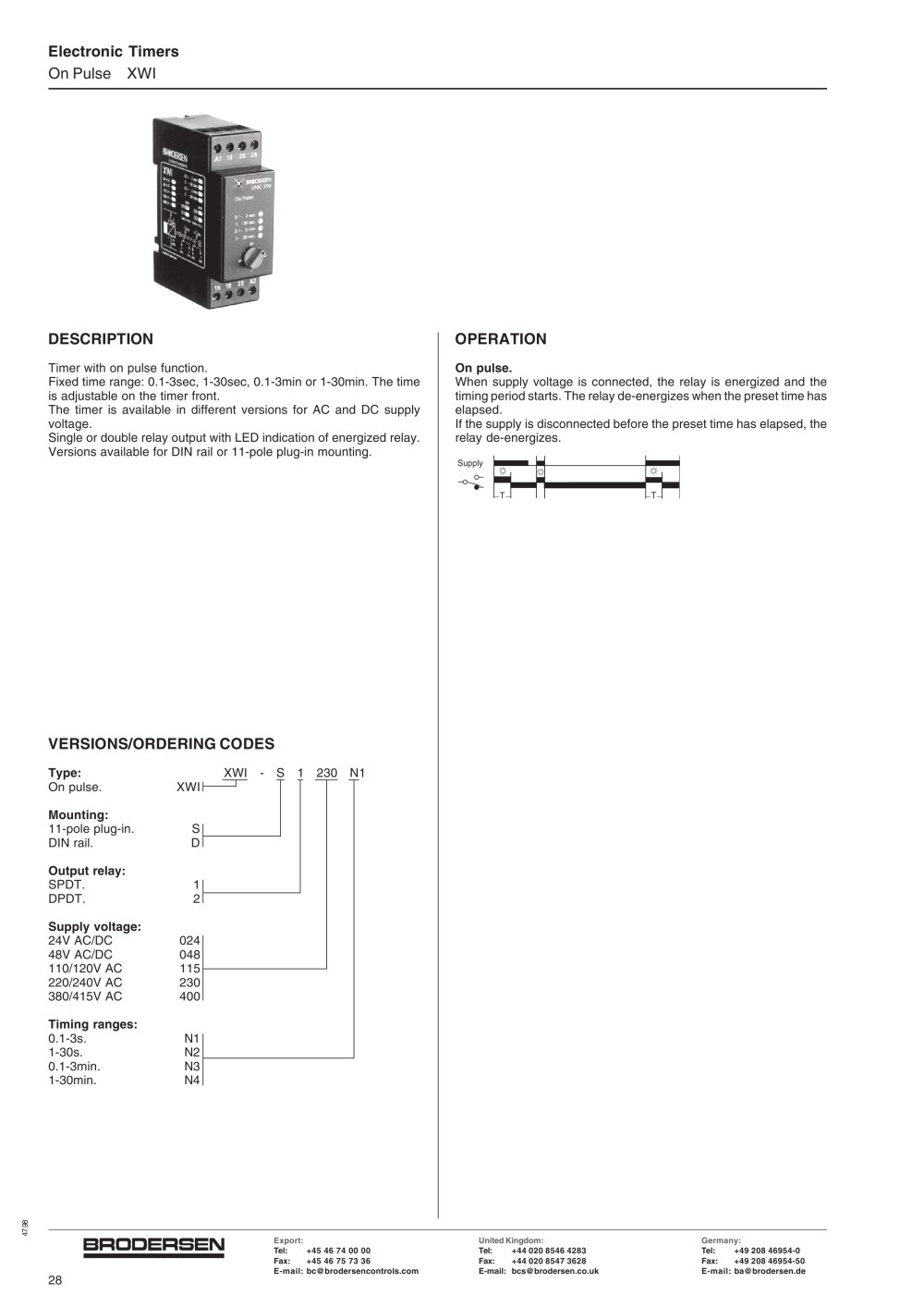

| | | DESCRIPTION Timer with on pulse function. Fixed time range: 0.1-3sec, 1-30sec, 0.1-3min or 1-30min. The time is adjustable on the timer front. The timer is available in different versions for AC and DC supply voltage. Single or double relay output with LED indication of energized relay. Versions available for DIN rail or 11-pole plug-in mounting. | | OPERATION On pulse. When supply voltage is connected, the relay is energized and the timing period starts. The relay de-energizes when the preset time has elapsed. If the supply is disconnected before the preset time has elapsed, the relay de-energizes. | | |
