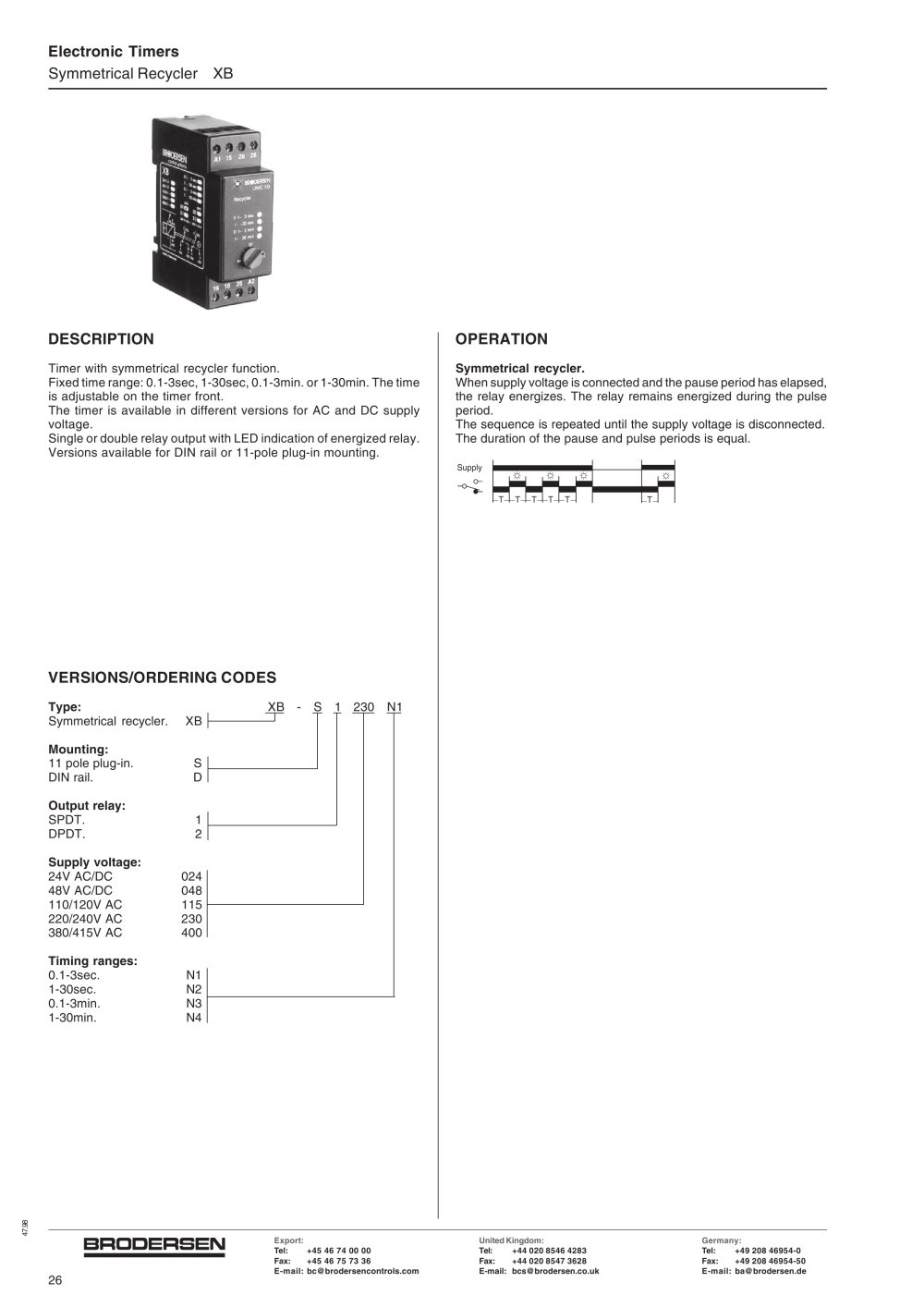

| | | DESCRIPTION Timer with symmetrical recycler function. Fixed time range: 0.1-3sec, 1-30sec, 0.1-3min. or 1-30min. The time is adjustable on the timer front. The timer is available in different versions for AC and DC supply voltage. Single or double relay output with LED indication of energized relay. Versions available for DIN rail or 11-pole plug-in mounting. | | OPERATION Symmetrical recycler. When supply voltage is connected and the pause period has elapsed, the relay energizes. The relay remains energized during the pulse period. The sequence is repeated until the supply voltage is disconnected. The duration of the pause and pulse periods is equal. | | |
