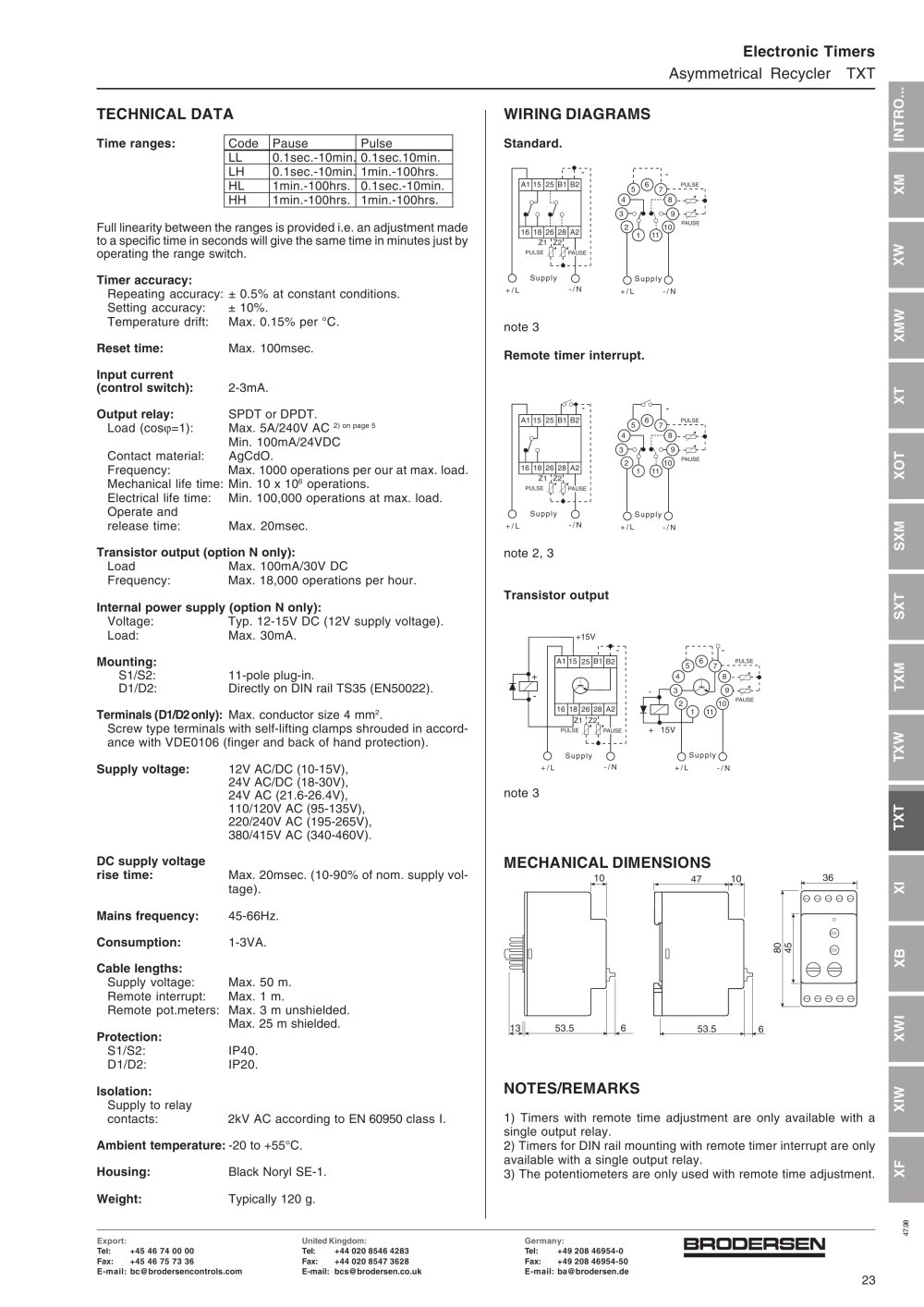

Electronic Timers

Asymmetrical Recycler TXT

TECHNICAL DATA

WIRING DIAGRAMS

Standard.

oc 1-z


Code	Pause	Pulse
LL	0.1sec.-10min	0.1sec.10min.
LH	0.1sec.-10min	1min.-100hrs.
HL	1min.-100hrs.	0.1sec.-10min.
HH	1min.-100hrs.	1min.-100hrs.

Time ranges:

r-T

■i

A1 15 25 B1 B2

r—(a)--çz5-<

Full linearity between the ranges is provided i.e. an adjustment made to a specific time in seconds will give the same time in minutes just by operating the range switch.

Timer accuracy:

Repeating accuracy: ± 0.5% at constant conditions.

16 18 26 28 A2

PULSE V\ U PAUSE

-v 'v i i

ply O

Ô Sup

O Supplyo

+/L -/N

+ /L -/N

Setting accuracy: Temperature drift:

Reset time:

Input current (control switch):

± 10%. Max. 0.15% per °C.

Max. 100msec.

note 3

Remote timer interrupt.

2-3mA.

(|)©(7>--^P-^ULlS-^E-,

©—I r-<8)--Çz5--«

^PAUSE

Output relay:

Load (costp=1):

Contact material: Frequency:

SPDT or DPDT. Max. 5A/240V AC ²⁾ ^on ^page ⁵Min. 100mA/24VDC AgCdO.

Max. 1000 operations per our at max. load.

A1 15 25 B1 B2

16 18 26 28 A2

^Z1ri-1

PULSE K VC PAUSE

Mechanical life time: Min. 10 x 10⁶ operations. Electrical life time: Min. 100,000 operations at max. load. Operate and

release time: Max. 20msec.

Transistor output (option N only):

Load Max. 100mA/30V DC

Frequency: Max. 18,000 operations per hour.

Internal power supply (option N only):

Voltage: Typ. 12-15V DC (12V supply voltage).

Load: Max. 30mA.

Y 'v I

>ly O

O Supp

O Supplyo

+/L -/N

+ /L

note 2, 3

Transistor output

+15V

(J)©(tV--^p-^ULlSeE-_is)—(¿11 (S>-çz5-^

Mounting:

S1/S2: D1/D2:

|A1|15|25|B1|B2

11-pole plug-in.

Directly on DIN rail TS35 (EN50022).

I-

|16|18|26|28|A2

Terminals (D1/D2 only): Max. conductor size 4 mm². Screw type terminals with self-lifting clamps shrouded in accordance with VDE0106 (finger and back of hand protection).

PULSE

O Sup

41 Q ^PAUSE

l...JL.

ply Ò

i + 15V

X I-

OSupplyQ + /L -/N

Supply voltage:

12V AC/DC (10-15V), 24V AC/DC (18-30V), 24V AC (21.6-26.4V), 110/120V AC (95-135V), 220/240V AC (195-265V),

380/415V AC (340-460V).

-/N

+ /L

note 3

IX I—

DC supply voltage rise time:

MECHANICAL DIMENSIONS

Max. 20msec. (10-90% of nom. supply voltage).

45-66Hz.

1-3VA.

_|( 36

47 A0„

Mains frequency: Consumption:

0 ©

Cable lengths:

Max. 50 m. Max. 1 m.

Remote pot.meters: Max. 3 m unshielded.

Max. 25 m shielded.

e e e e e

[13^ 53.5

53.5

Protection:

S1/S2: IP40.

D1/D2: IP20.

Isolation:

Supply to relay

contacts: 2kV AC according to EN 60950 class I. Ambient temperature: -20 to +55°C.

Housing: Black Noryl SE-1.

Weight: Typically 120 g.

NOTES/REMARKS

1) Timers with remote time adjustment are only available with a single output relay.

2) Timers for DIN rail mounting with remote timer interrupt are only available with a single output relay.

3) The potentiometers are only used with remote time adjustment.
