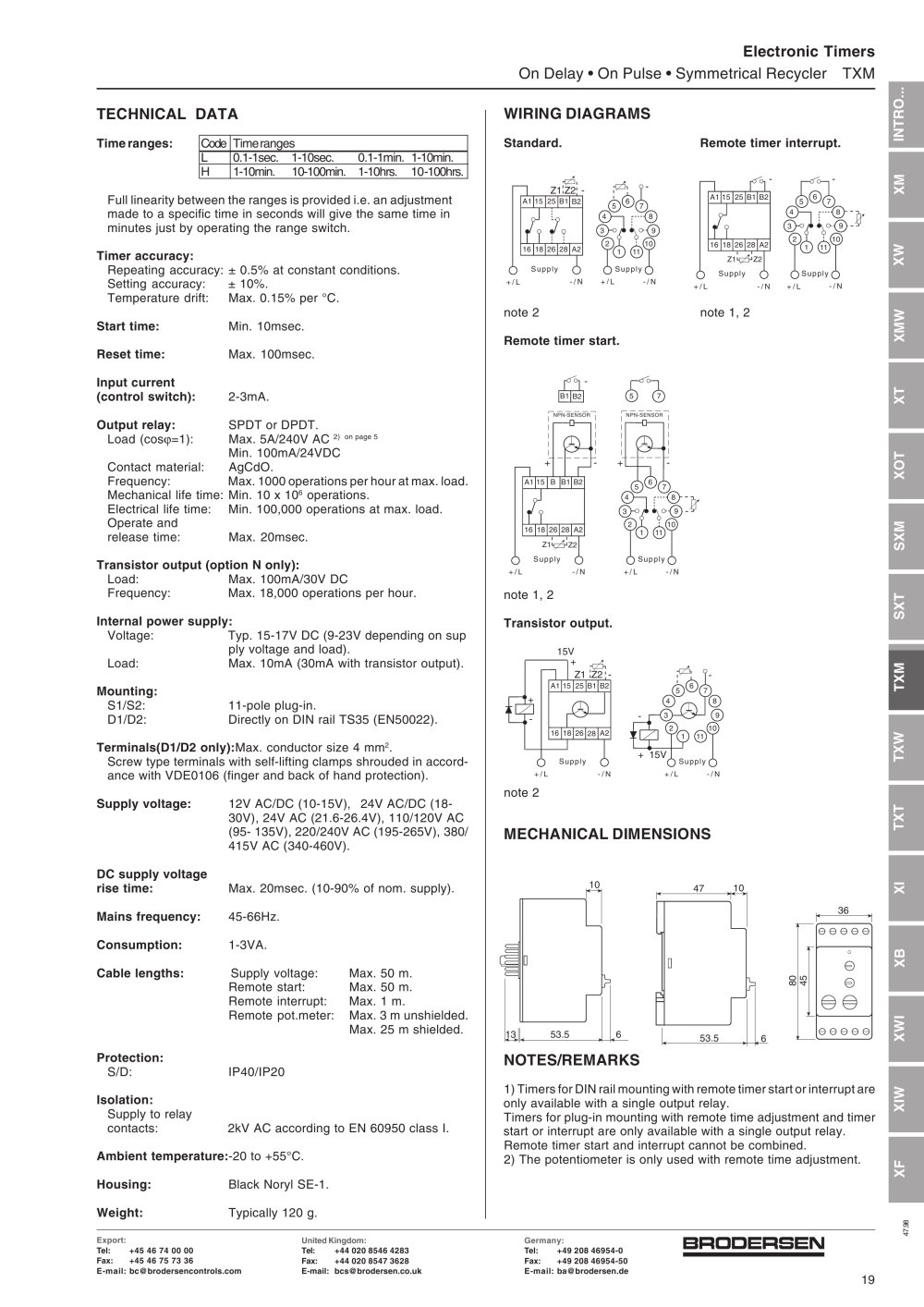

Electronic Timers

On Delay • On Pulse • Symmetrical Recycler TXM

WIRING DIAGRAMS

Standard.

TECHNICAL DATA

r-Z


	Code	Time ranges
	L	0.1-1sec. 1-10sec. 0.1-1min. 1-10min.
	H	1-10min. 10-100min. 1-10hrs. 10-100hrs.

Remote timer interrupt.

Time ranges:

Z1iz2:- ^

A1 15 25 B1 B2

Full linearity between the ranges is provided i.e. an adjustment made to a specific time in seconds will give the same time in minutes just by operating the range switch.

Timer accuracy:

Repeating accuracy: ± 0.5% at constant conditions.

A1 15 25 B1 B2

©H ""©"fr

©^^V<9)-*

Wolf

Î , , |16|18|26|28|A2

16|18|26|28|A2

O supply o ÔsupplyO

+/L -/N +/L -/N

Û Supply o QSupplyO

Setting accuracy: Temperature drift:

Start time:

Reset time:

Input current (control switch):

± 10%. Max. 0.15% per °C.

Min. 10msec.

Max. 100msec.

2-3mA.

-/N +/L

-/N

+ /L

note 2

Remote timer start.

note 1, 2

5 X

h-X

Output relay:

Load (costp=1):

Contact material: Frequency:

SPDT or DPDT. Max. 5A/240V AC ²⁾ ^on ^page ⁵Min. 100mA/24VDC AgCdO.

Max. 1000 operations per hour at max. load.

Mechanical life time: Min. 10 x 10⁶ operations. Electrical life time: Min. 100,000 operations at max. load. Operate and

release time: Max. 20msec.

Transistor output (option N only):

Load: Max. 100mA/30V DC

Frequency: Max. 18,000 operations per hour.

I©©*⁰

O Supply Q + /L -/N

(f)

Z1 V^Z2 Ô Supply + /L -/N

note 1, 2

Transistor output.

15V

Internal power supply:

Voltage: Load:

Mounting:

S1/S2: D1/D2:

Typ. 15-17V DC (9-23V depending on sup

ply voltage and load).

Max. 10mA (30mA with transistor output).

X h-

3>©-l®

SupplyQ

+/L -/N

11-pole plug-in.

Directly on DIN rail TS35 (EN50022).

Terminals(D1/D2 only):Max. conductor size 4 mm². Screw type terminals with self-lifting clamps shrouded in accordance with VDE0106 (finger and back of hand protection).

O Supply + /L -/N

note 2

Supply voltage:

12V AC/DC (10-15V), 24V AC/DC (18-30V), 24V AC (21.6-26.4V), 110/120V AC (95- 135V), 220/240V AC (195-265V), 380/

415V AC (340-460V).

MECHANICAL DIMENSIONS

DC supply voltage rise time:

Mains frequency:

Consumption:

Cable lengths:

Max. 20msec. (10-90% of nom. supply). 45-66Hz.

1-3VA.

47 10

Supply voltage: Remote start: Remote interrupt: Remote pot.meter:

Max. 50 m. Max. 50 m. Max. 1 m.

Max. 3 m unshielded. Max. 25 m shielded.

o co

e e e e e

53.5

Protection:

S/D: IP40/IP20

Isolation:

Supply to relay

contacts: 2kV AC according to EN 60950 class I. Ambient temperature:-20 to +55°C.

Housing: Black Noryl SE-1.

Weight: Typically 120 g.

NOTES/REMARKS

1) Timers for DIN rail mounting with remote timer start or interrupt are only available with a single output relay.

Timers for plug-in mounting with remote time adjustment and timer start or interrupt are only available with a single output relay. Remote timer start and interrupt cannot be combined.

2) The potentiometer is only used with remote time adjustment.
