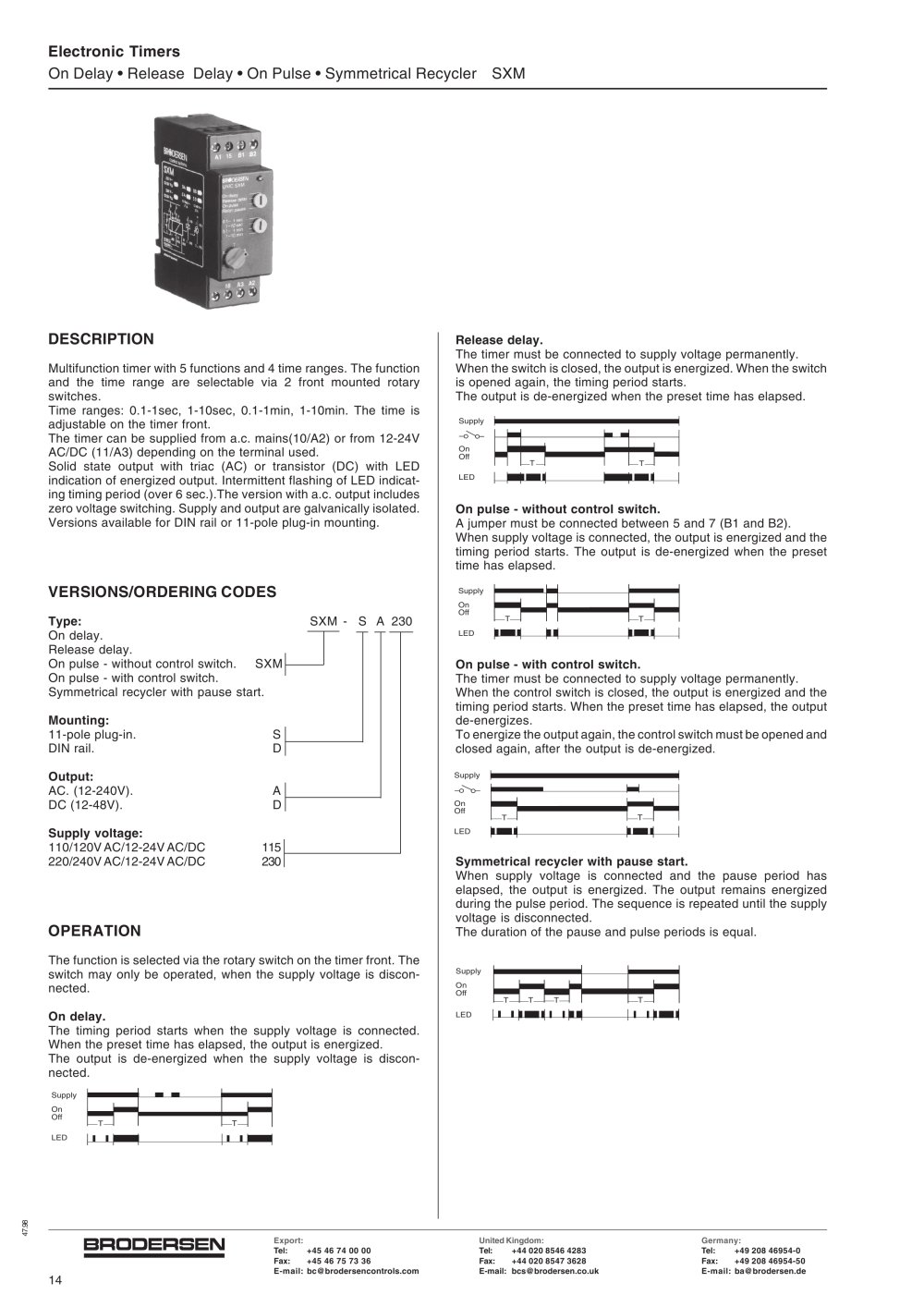

Electronic Timers
On Delay • Release Delay • On Pulse • Symmetrical Recycler SXM
DESCRIPTION
Release delay.
The timer must be connected to supply voltage permanently. When the switch is closed, the output is energized. When the switch is opened again, the timing period starts. The output is de-energized when the preset time has elapsed.
Multifunction timer with 5 functions and 4 time ranges. The function and the time range are selectable via 2 front mounted rotary switches.
Time ranges: 0.1-1sec, 1-10sec, 0.1-1min, 1-10min. The time is adjustable on the timer front.
The timer can be supplied from a.c. mains(10/A2) or from 12-24V AC/DC (11/A3) depending on the terminal used. Solid state output with triac (AC) or transistor (DC) with LED indication of energized output. Intermittent flashing of LED indicat­ing timing period (over 6 sec.).The version with a.c. output includes zero voltage switching. Supply and output are galvanically isolated. Versions available for DIN rail or 11-pole plug-in mounting.
Supply -0^
On Off
u
LED
On pulse - without control switch.
A jumper must be connected between 5 and 7 (B1 and B2). When supply voltage is connected, the output is energized and the timing period starts. The output is de-energized when the preset time has elapsed.
u
VERSIONS/ORDERING CODES
Supply
On Off
Type:
On delay. Release delay.
On pulse - without control switch. SXML On pulse - with control switch. Symmetrical recycler with pause start.
Mounting:
11-pole plug-in. S
DIN rail. D
SXM
S A 230
W-M
LED
On pulse - with control switch.
The timer must be connected to supply voltage permanently. When the control switch is closed, the output is energized and the timing period starts. When the preset time has elapsed, the output de-energizes.
To energize the output again, the control switch must be opened and closed again, after the output is de-energized.
Output:
AC. (12-240V). DC (12-48V).
Supply voltage:
110/120V AC/12-24V AC/DC 220/240V AC/12-24V AC/DC
Supply
On Off
T
«—<—I
LED
115
230
Symmetrical recycler with pause start.
When supply voltage is connected and the pause period has elapsed, the output is energized. The output remains energized during the pulse period. The sequence is repeated until the supply voltage is disconnected.
The duration of the pause and pulse periods is equal.
OPERATION
The function is selected via the rotary switch on the timer front. The switch may only be operated, when the supply voltage is discon­nected.
On delay.
The timing period starts when the supply voltage is connected. When the preset time has elapsed, the output is energized. The output is de-energized when the supply voltage is discon­nected.
J—
^ 1
Supply
On Off
Ii 'W iM
I'
LED
Supply
&1
On Off
LED
Export:
Tel: +45 46 74 00 00 Fax: +45 46 75 73 36 E-mail: bc@brodersencontrols.com
United Kingdom: Tel: +44 020 8546 4283
Fax: +44 020 8547 3628 E-mail: bcs@brodersen.co.uk
Germany:
Tel: +49 208 46954-0
Fax: +49 208 46954-50 E-mail: ba@brodersen.de
EN
14
