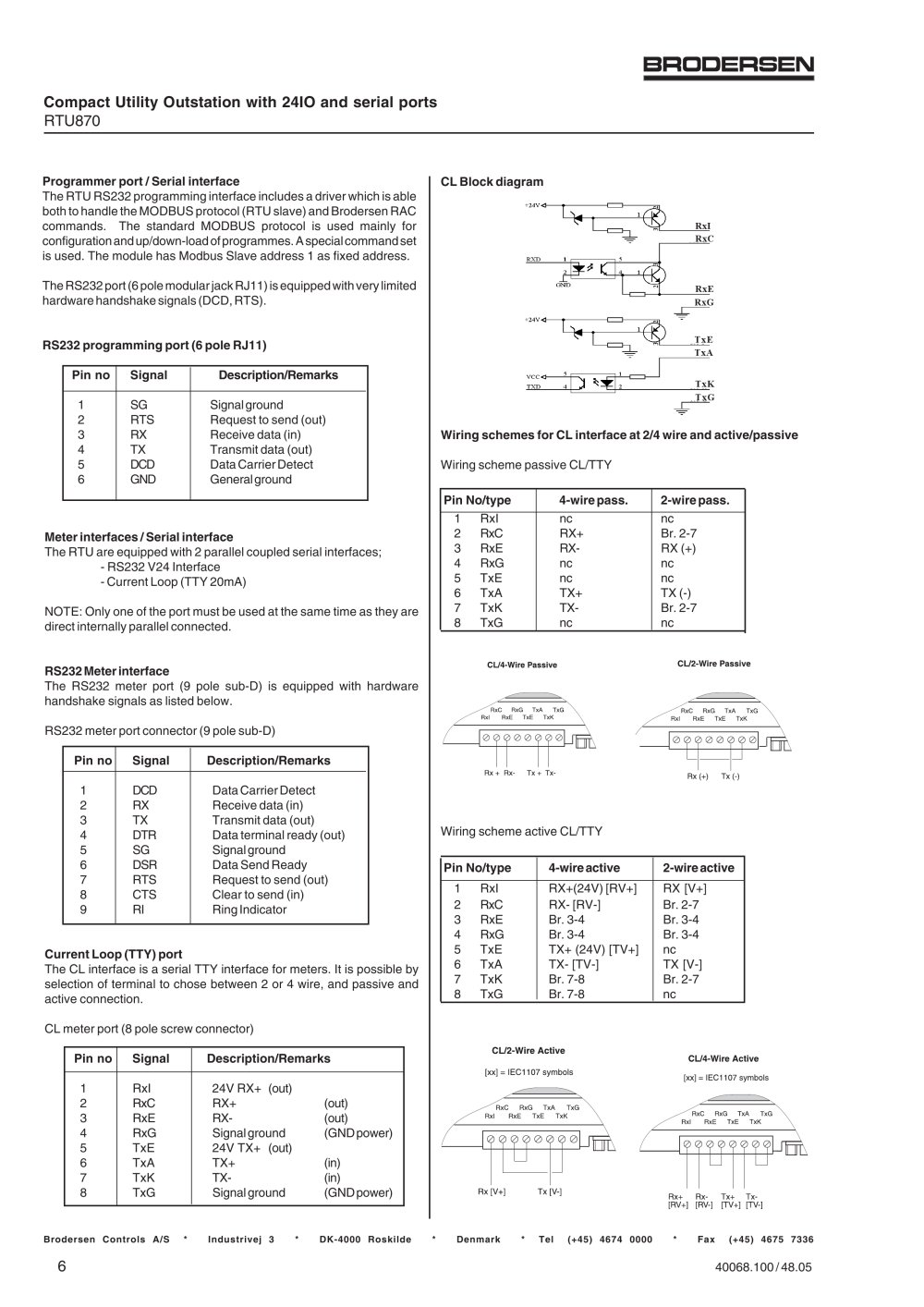

BRODERSEN
Compact Utility Outstation with 24IO and serial ports
RTU870
Programmer port / Serial interface
The RTU RS232 programming interface includes a driver which is able both to handle the MODBUS protocol (RTU slave) and Brodersen RAC commands. The standard MODBUS protocol is used mainly for configuration and up/down-load of programmes. A special command set is used. The module has Modbus Slave address 1 as fixed address.
The RS232 port (6 pole modular jack RJ11) is equipped with very limited hardware handshake signals (DCD, RTS).
CL Block diagram
RS232 programming port (6 pole RJ11)
Pin no
Signal
Description/Remarks
1
SG
Signal ground
2
RTS
Request to send (out)
3
RX
Receive data (in)
4
TX
Transmit data (out)
5
DCD
Data Carrier Detect
6
GND
General ground
Wiring schemes for CL interface at 2/4 wire and active/passive
Wiring scheme passive CL/TTY
Pin No/type
4-wire pass.
2-wire pass.
1 RxI
nc
nc
2 RxC
RX+
Br. 2-7
3 RxE
RX-
RX (+)
4 RxG
nc
nc
5 TxE
nc
nc
6 TxA
TX+
TX (-)
7 TxK
TX-
Br. 2-7
8 TxG
nc
nc
Meter interfaces / Serial interface
The RTU are equipped with 2 parallel coupled serial interfaces;
- RS232 V24 Interface
- Current Loop (TTY 20mA)
NOTE: Only one of the port must be used at the same time as they are direct internally parallel connected.
CL/2-Wlre Passive
CL/4-Wire Passive
RS232 Meter interface
The RS232 meter port (9 pole sub-D) is equipped with hardware handshake signals as listed below.
RS232 meter port connector (9 pole sub-D)
Pin no
Signal
Description/Remarks
1
DCD
Data Carrier Detect
2
RX
Receive data (in)
3
TX
Transmit data (out)
4
DTR
Data terminal ready (out)
5
SG
Signal ground
6
DSR
Data Send Ready
7
RTS
Request to send (out)
8
CTS
Clear to send (in)
9
RI
Ring Indicator
Rx + Rx- Tx + Tx-
Rx(+) Tx(-)
Wiring scheme active CL/TTY
Pin No/type
4-wire active
2-wire active
1 RxI
RX+(24V) [RV+]
RX [V+]
2 RxC
RX- [RV-]
Br. 2-7
3 RxE
Br. 3-4
Br. 3-4
4 RxG
Br. 3-4
Br. 3-4
5 TxE
TX+ (24V) [TV+]
nc
6 TxA
TX- [TV-]
TX [V-]
7 TxK
Br. 7-8
Br. 2-7
8 TxG
Br. 7-8
nc
Current Loop (TTY) port
The CL interface is a serial TTY interface for meters. It is possible by selection of terminal to chose between 2 or 4 wire, and passive and active connection.
CL meter port (8 pole screw connector)
Pin no
Signal
Description/Remarks
1
RxI
24V RX+ (out)
2
RxC
RX+
(out)
3
RxE
RX-
(out)
4
RxG
Signal ground
(GND power)
5
TxE
24V TX+ (out)
6
TxA
TX+
(in)
7
TxK
TX-
(in)
8
TxG
Signal ground
(GND power)
CL/2-Wlre Active
[xx] = IEC1107 symbols
CLM-WIre Active
[xx] = IEC1107 symbols
Rx[V+]
Tx[V-]
Rx+ Rx- Tx+ Tx-[RV+] [RV-] [TV+] [TV-]
Brodersen Controls A/S
Industrivej 3
DK-4000 Roskilde
Denmark
* Tel (+45) 4674 0000
Fax (+45) 4675 7336
6
40068.100 / 48.05
