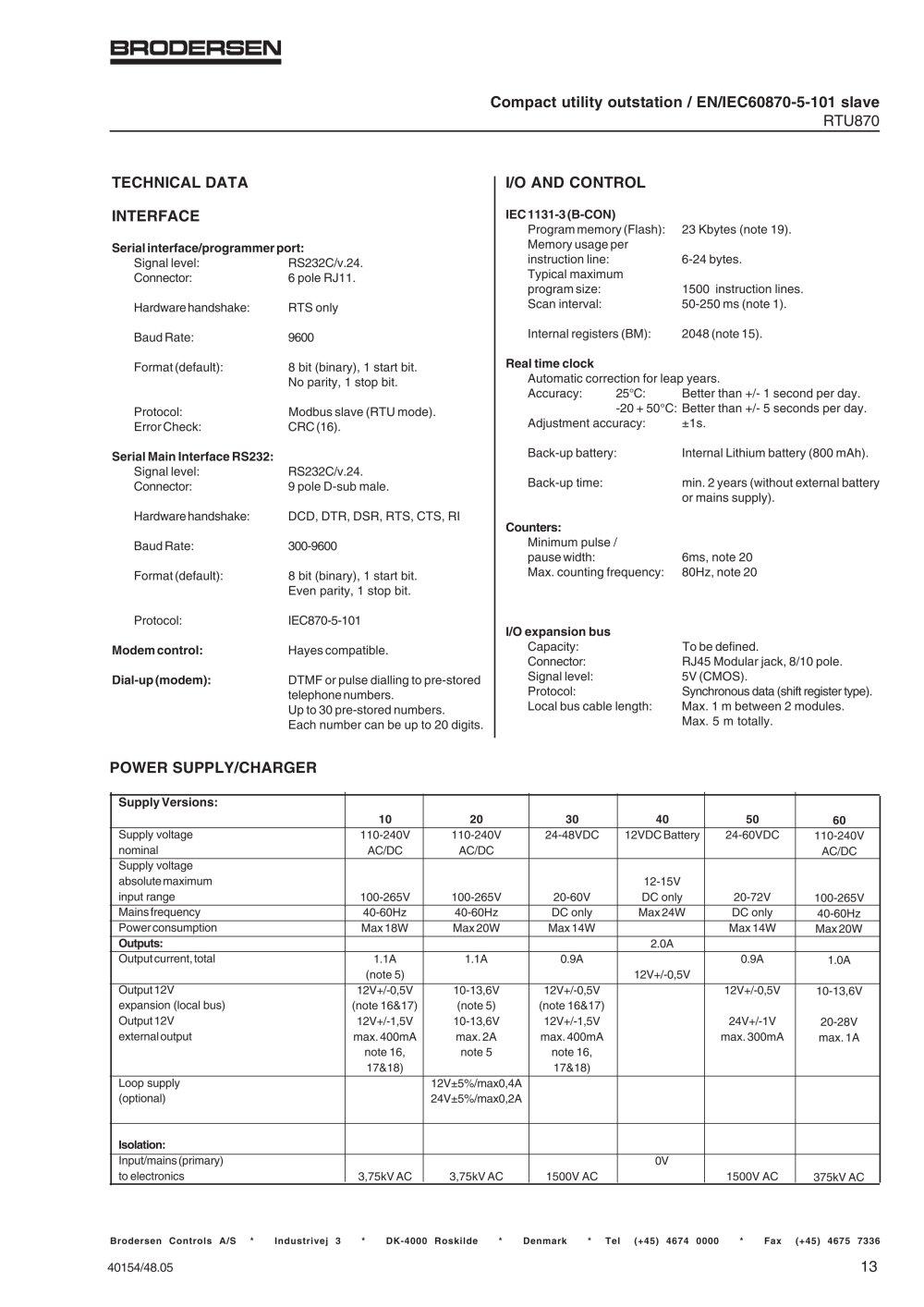

Compact utility outstation / EN/IEC60870-5-101 slave RTU870 TECHNICAL DATAINTERFACE I/O AND CONTROL

IEC 1131-3 (B-CON) Real time clock Program memory (Flash):23 Kbytes (note 19). Memory usage per instruction line:6-24 bytes. Typical maximum program size:1500 instruction lines. Scan interval:50-250 ms (note 1).Internal registers (BM):2048 (note 15). Automatic correction for leap years. Accuracy:25°C:Better than +/- 1 second per day.-20 + 50°C:Better than +/- 5 seconds per day.Adjustment accuracy:±1s.Back-up battery:Internal Lithium battery (800 mAh). Back-up time:min. 2 years (without external batteryor mains supply). Serial interface/programmer port: Signal level:RS232C/v.24.Connector:6 pole RJ11.Hardware handshake:RTS onlyBaud Rate:9600Format (default):8 bit (binary), 1 start bit.No parity, 1 stop bit.Protocol:Modbus slave (RTU mode).Error Check:CRC (16). Counters: Minimum pulse / pause width:6ms, note 20 Max. counting frequency:80Hz, note 20 I/O expansion bus Capacity:To be defined. Connector:RJ45 Modular jack, 8/10 pole.Signal level:5V (CMOS). Protocol:Synchronous data (shift register type).Local bus cable length:Max. 1 m between 2 modules.Max. 5 m totally. Serial Main Interface RS232: Signal level:RS232C/v.24.Connector:9 pole D-sub male.Hardware handshake:DCD, DTR, DSR, RTS, CTS, RIBaud Rate:300-9600Format (default):8 bit (binary), 1 start bit.Even parity, 1 stop bit.Protocol:IEC870-5-101 Modem control: Hayes compatible. Dial-up (modem): DTMF or pulse dialling to pre-storedtelephone numbers. Up to 30 pre-stored numbers. Each number can be up to 20 digits.

POWER SUPPLY/CHARGER

Supply Versions:

10 20 30 40 50 60 Supply voltage 110-240VAC/DC100-265V40-60HzMax 18W1.1A(note 5)12V+/-0,5V(note 16&17)12V+/-1,5Vmax. 400mAnote 16,17&18)3,75kV AC 110-240VAC/DC100-265V40-60HzMax 20W1.1A10-13,6V(note 5)10-13,6Vmax. 2Anote 512V±5%/max0,4A24V±5%/max0,2A3,75kV AC 24-48VDC20-60VDC onlyMax 14W0.9A12V+/-0,5V(note 16&17)12V+/-1,5Vmax. 400mAnote 16,17&18)1500V AC 12VDC Battery12-15VDC onlyMax 24W2.0A12V+/-0,5V 0V 24-60VDC20-72VDC onlyMax 14W0.9A12V+/-0,5V24V+/-1Vmax. 300mA 1500V AC 110-240VAC/DC100-265V40-60HzMax 20W1.0A10-13,6V20-28Vmax. 1A 375kV AC nominalSupply voltageabsolute maximum input range Mains frequency Power consumption Outputs: Output current, total Output 12V expansion (local bus)Output 12V external output Loop supply(optional) Isolation: Input/mains (primary) to electronics
Brodersen Controls A/S * Industrivej 3 * DK-4000 Roskilde * Denmark * Tel (+45) 4674 0000 * Fax (+45) 4675 7336

40154/48.05

13
