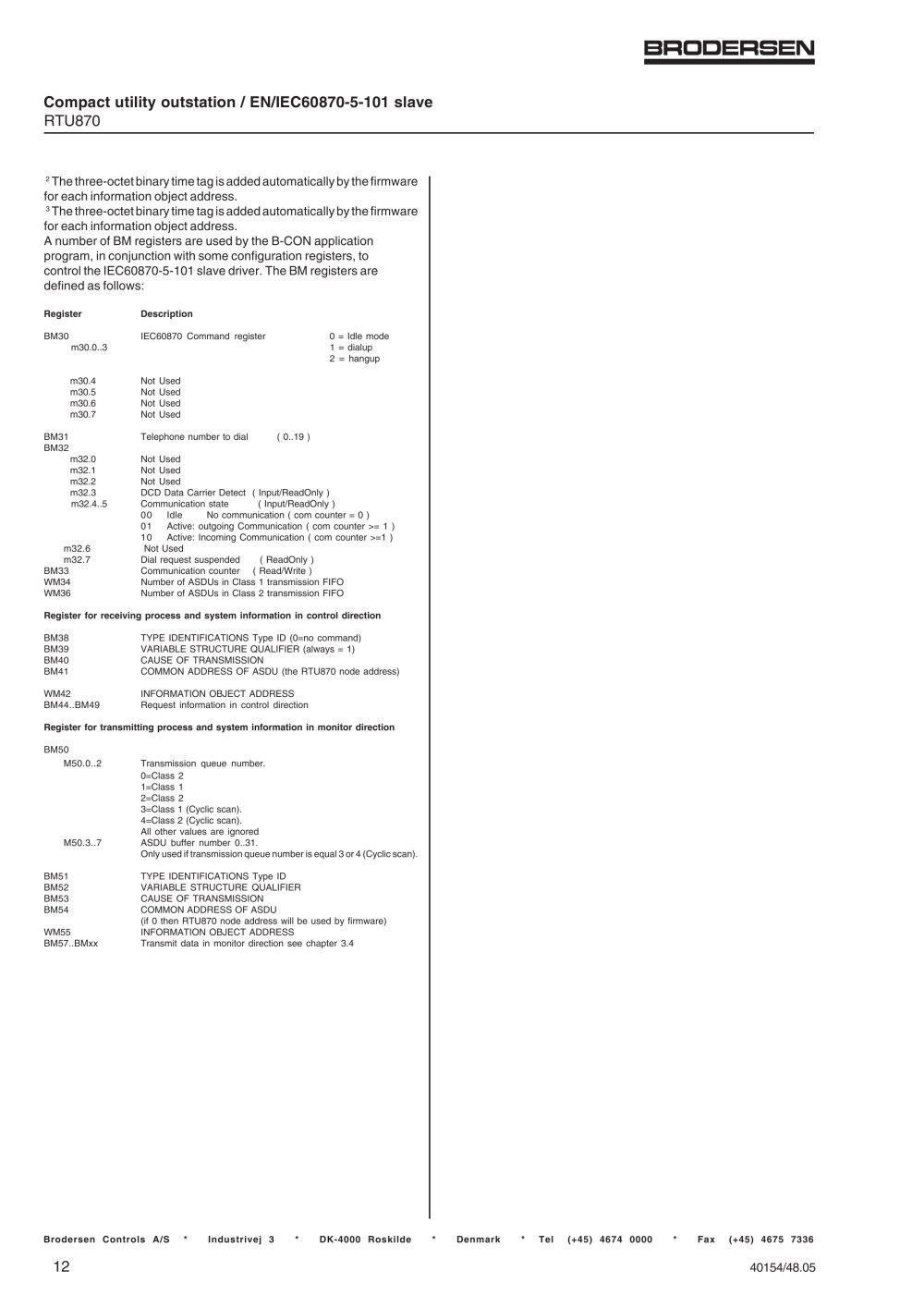

Compact utility outstation / EN/IEC60870-5-101 slave RTU870

The three-octet binary time tag is added automatically by the firmwarefor each information object address.

The three-octet binary time tag is added automatically by the firmwarefor each information object address. A number of BM registers are used by the B-CON application program, in conjunction with some configuration registers, to control the IEC60870-5-101 slave driver. The BM registers are defined as follows:

RegisterDescription BM30IEC60870 Command register0 = Idle mode m30.0..31 = dialup2 = hangup m30.4Not Used m30.5Not Used m30.6Not Used m30.7Not UsedBM31Telephone number to dial ( 0..19 )BM32 m32.0Not Used m32.1Not Used m32.2Not Used m32.3DCD Data Carrier Detect ( Input/ReadOnly ) m32.4..5Communication state ( Input/ReadOnly )00IdleNo communication ( com counter = 0 ) 01Active: outgoing Communication ( com counter >= 1 ) 10Active: Incoming Communication ( com counter >=1 )m32.6 Not Usedm32.7Dial request suspended ( ReadOnly )BM33Communication counter ( Read/Write ) WM34Number of ASDUs in Class 1 transmission FIFO WM36Number of ASDUs in Class 2 transmission FIFO BM38TYPE IDENTIFICATIONS Type ID (0=no command)BM39VARIABLE STRUCTURE QUALIFIER (always = 1) BM40CAUSE OF TRANSMISSION BM41COMMON ADDRESS OF ASDU (the RTU870 node address)WM42INFORMATION OBJECT ADDRESSBM44..BM49Request information in control direction Register for receiving process and system information in control direction BM50M50.0..2Transmission queue number.0=Class 21=Class 1 2=Class 2 3=Class 1 (Cyclic scan). 4=Class 2 (Cyclic scan). All other values are ignoredM50.3..7ASDU buffer number 0..31.Only used if transmission queue number is equal 3 or 4 (Cyclic scan).BM51TYPE IDENTIFICATIONS Type IDBM52VARIABLE STRUCTURE QUALIFIER BM53CAUSE OF TRANSMISSION BM54COMMON ADDRESS OF ASDU(if 0 then RTU870 node address will be used by firmware)WM55INFORMATION OBJECT ADDRESS BM57..BMxxTransmit data in monitor direction see chapter 3.4 Register for transmitting process and system information in monitor direction Brodersen Controls A/S * Industrivej 3 * DK-4000 Roskilde * Denmark * Tel (+45) 4674 0000 * Fax (+45) 4675 7336
