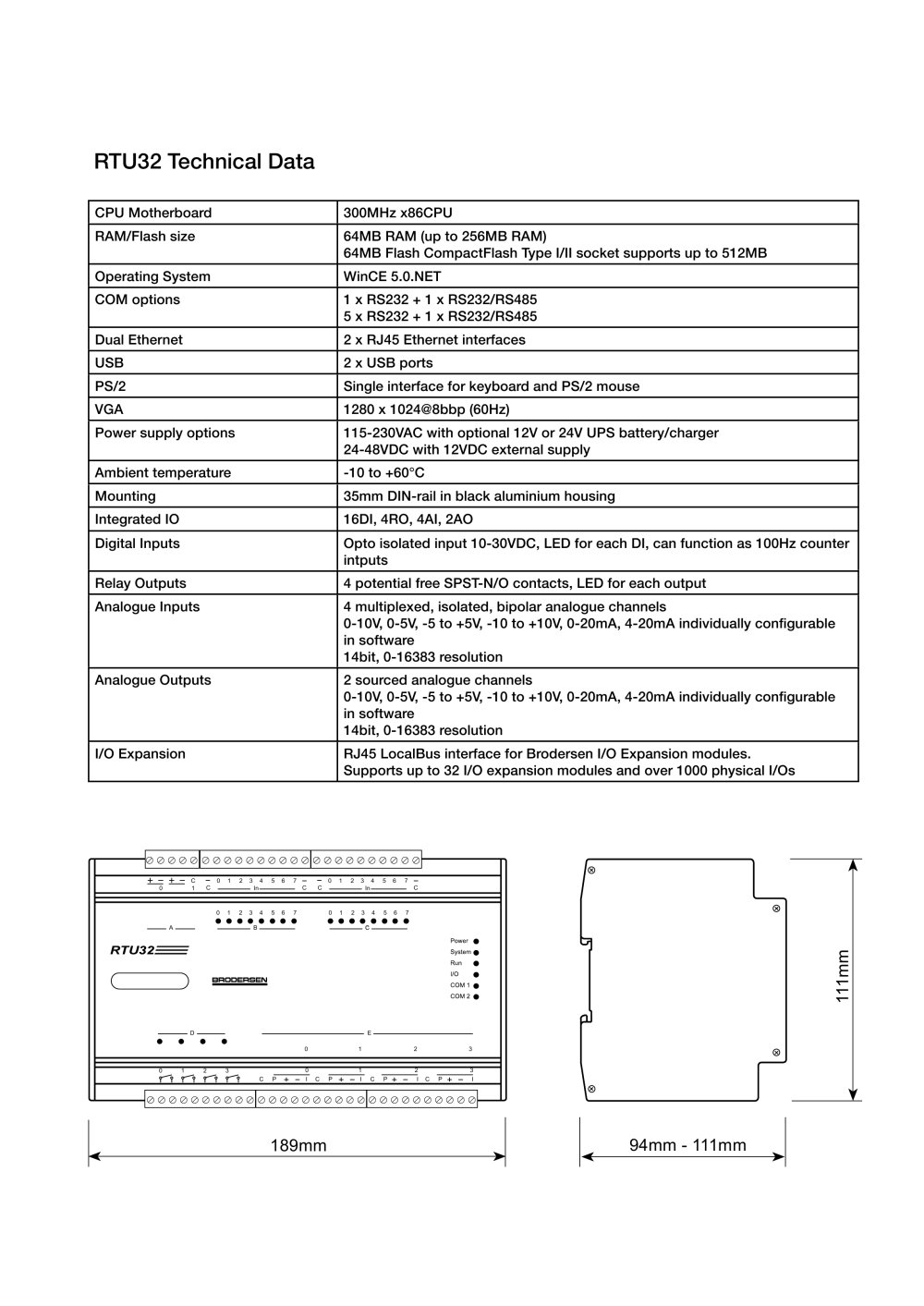

RTU32 Technical Data


	CPU Motherboard	300MHz x86CPU
	RAM/Flash size	64MB RAM (up to 256MB RAM) 64MB Flash CompactFlash Type I/II socket supports up to 512MB
	Operating System	WinCE 5.0.NET
	COM options	1 x RS232 + 1 x RS232/RS485 5 x RS232 + 1 x RS232/RS485
	Dual Ethernet	2 x RJ45 Ethernet interfaces
	USB	2 x USB ports
	PS/2	Single interface for keyboard and PS/2 mouse
	VGA	1280 x 1024@8bbp (60Hz)
	Power supply options	115-230VAC with optional 12V or 24V UPS battery/charger 24-48VDC with 12VDC external supply
	Ambient temperature	-10 to +60°C
	Mounting	35mm DIN-rail in black aluminium housing
	Integrated IO	16DI, 4RO, 4AI, 2AO
	Digital Inputs	Opto isolated input 10-30VDC, LED for each DI, can function as 100Hz counter intputs
	Relay Outputs	4 potential free SPST-N/O contacts, LED for each output
	Analogue Inputs	4 multiplexed, isolated, bipolar analogue channels 0-10V, 0-5V, -5 to +5V, -10 to +10V, 0-20mA, 4-20mA individually configurable in software 14bit, 0-16383 resolution
	Analogue Outputs	2 sourced analogue channels 0-10V, 0-5V, -5 to +5V, -10 to +10V, 0-20mA, 4-20mA individually configurable in software 14bit, 0-16383 resolution
	I/O Expansion	RJ45 LocalBus interface for Brodersen I/O Expansion modules. Supports up to 32 I/O expansion modules and over 1000 physical I/Os

-000006

00000000 0 0 00000000 01-

+ — + — C - 01 234 56 7 - - 01 234 56 7-Ö" 1 C _ In_ C C _ In_ C

01234567 01234567

RTU32=

System % Run i

E E

COM1 i COM2 i

0 12 3

r-T r-_? y-,

C P+-I c p + -| c P+ - IC P+ - I

H0 00000000 0 0 00000000 0 0 00000000 0k

94mm - 111mm

189mm
