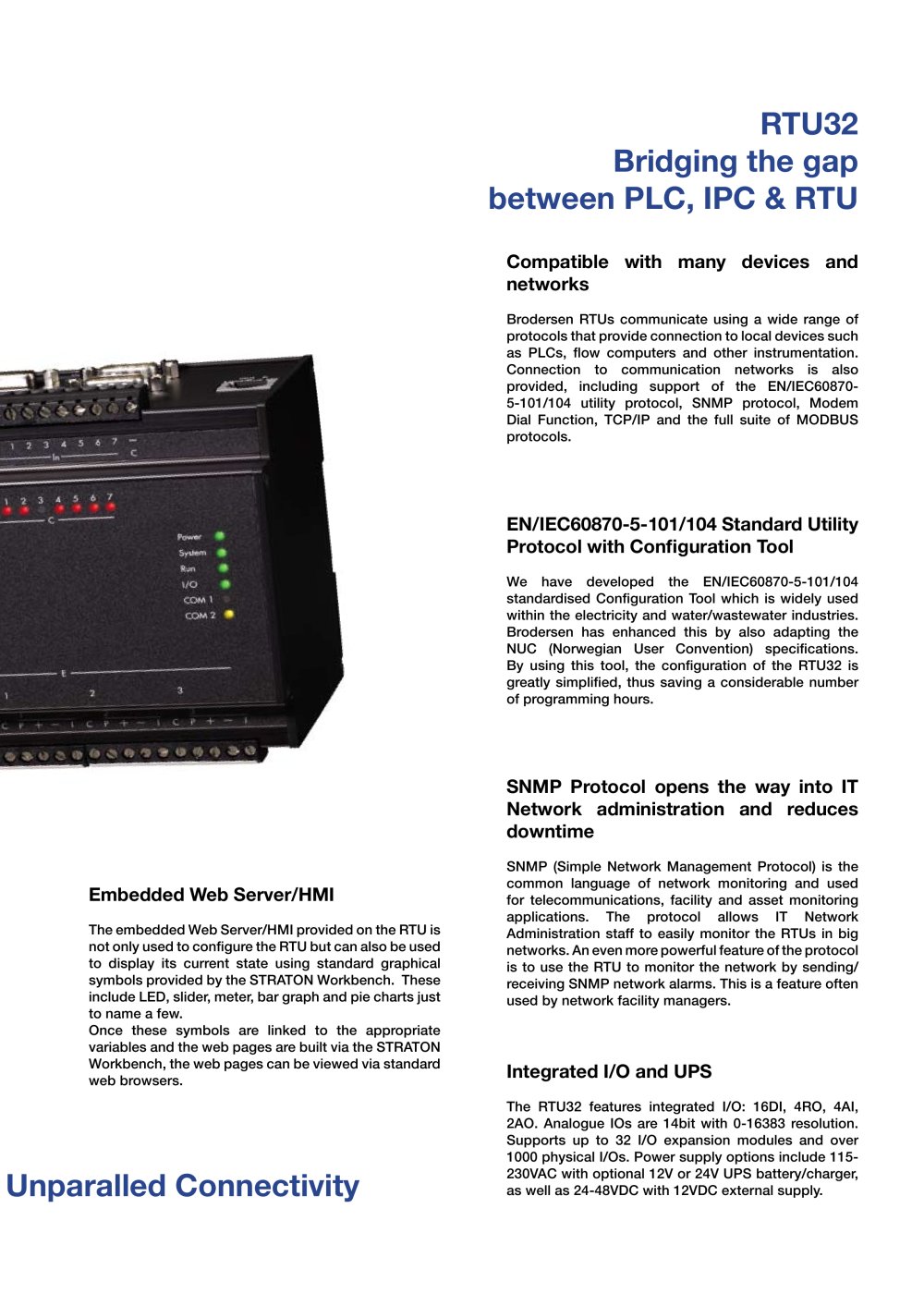

RTU32Bridging the gap between PLC, IPC & RTU Unparalled Connectivity

Compatible with many devices and networks

Brodersen RTUs communicate using a wide range of protocols that provide connection to local devices such as Industrial plcs, flow computers and other instrumentation. Connection to communication networks is also provided, including support of the EN/IEC60870- 5-101/104 utility protocol, SNMP protocol, Modem Dial Function, TCP/IP and the full suite of MODBUS protocols.

EN/IEC60870-5-101/104 Standard Utility Protocol with Configuration Tool

We have developed the EN/IEC60870-5-101/104 standardised Configuration Tool which is widely used within the electricity and water/wastewater industries. Brodersen has enhanced this by also adapting the NUC (Norwegian User Convention) specifications. By using this tool, the configuration of the RTU32 is greatly simplified, thus saving a considerable number of programming hours.

SNMP Protocol opens the way into IT Network administration and reduces downtime

SNMP (Simple Network Management Protocol) is the common language of network monitoring and used for telecommunications, facility and asset monitoring applications. The protocol allows IT Network Administration staff to easily monitor the RTUs in big networks. An even more powerful feature of the protocol is to use the RTU to monitor the network by sending/ receiving SNMP network alarms. This is a feature often used by network facility managers.

Embedded Web Server/HMI

The embedded Web Server/HMI provided on the RTU is not only used to configure the RTU but can also be used to display its current state using standard graphical symbols provided by the STRATON Industrial workbench. These include LED, slider, meter, bar graph and pie charts just to name a few. Once these symbols are linked to the appropriate variables and the web pages are built via the STRATON Workbench, the web pages can be viewed via standard web browsers.

Integrated I/O and UPS

The RTU32 features integrated I/O: 16DI, 4RO, 4AI, 2AO. Analogue IOs are 14bit with 0-16383 resolution. Supports up to 32 I/O expansion modules and over 1000 physical I/Os. Power supply options include 115- 230VAC with optional 12V or 24V UPS battery/charger, as well as 24-48VDC with 12VDC external supply.
