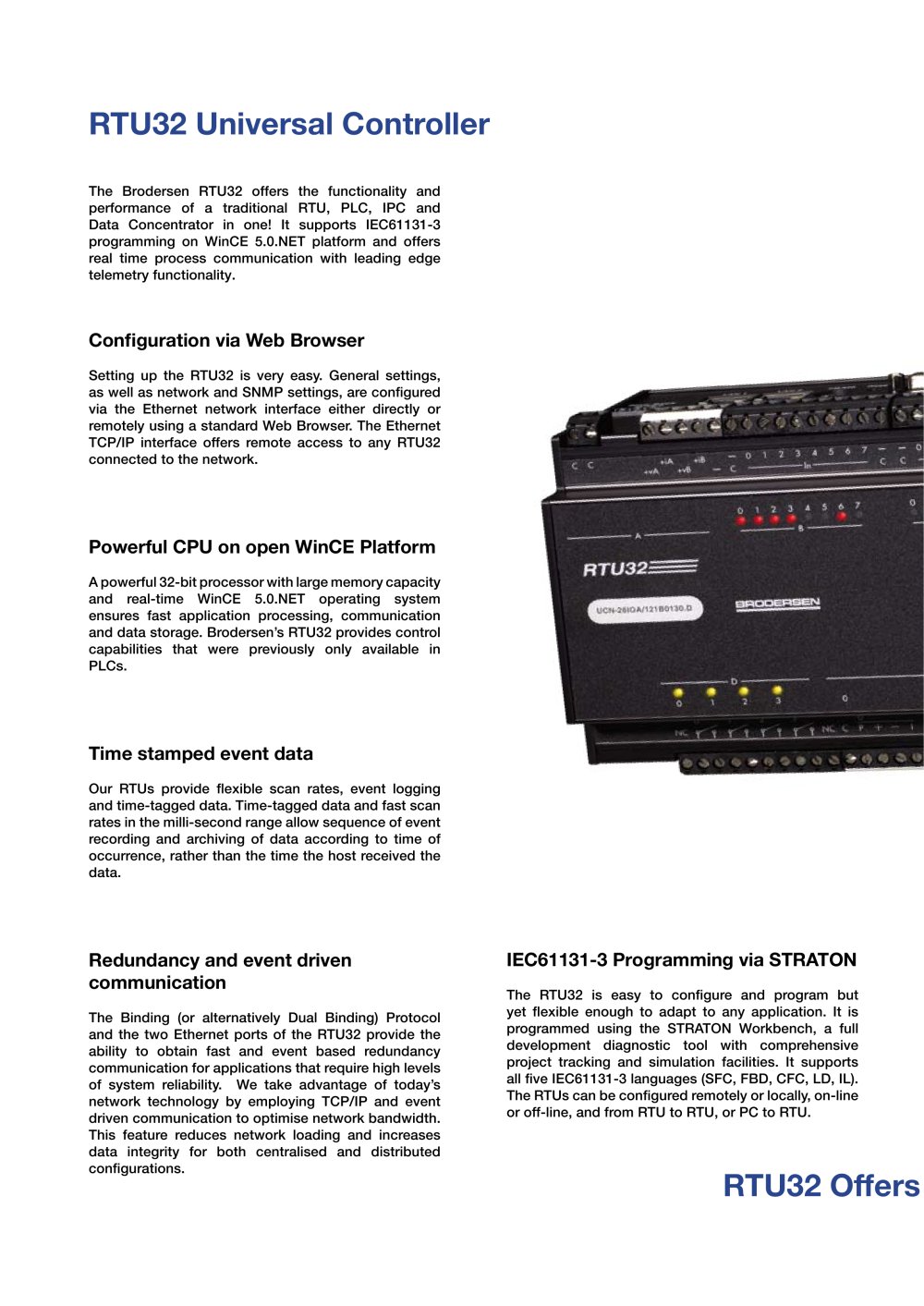

RTU32 Universal Controller

The Brodersen RTU32 offers the functionality and performance of a traditional RTU, PLC, IPC and Data Concentrator in one! It supports IEC61131-3 programming on WinCE 5.0.NET platform and offers real time process communication with leading edge telemetry functionality.

Configuration via Web Browser

Setting up the RTU32 is very easy. General settings, as well as network and SNMP settings, are configured via the Ethernet network interface either directly or remotely using a standard Web Browser. The Ethernet TCP/IP interface offers remote access to any RTU32 connected to the network.

Powerful CPU on open WinCE Platform

A powerful 32-bit processor with large memory capacity and real-time WinCE 5.0.NET operating system ensures fast application processing, communication and data storage. Brodersen’s RTU32 provides control capabilities that were previously only available in Plcs.

Time stamped event data

Our RTUs provide flexible scan rates, event logging and time-tagged data. Time-tagged data and fast scan rates in the milli-second range allow sequence of event recording and archiving of data according to time of occurrence, rather than the time the host received the data.

Redundancy and event driven communication IEC61131-3 Programming via STRATON

The RTU32 is easy to configure and program but yet flexible enough to adapt to any application. It is programmed using the STRATON Industrial workbench, a full development diagnostic tool with comprehensive project tracking and simulation facilities. It supports all five IEC61131-3 languages (SFC, FBD, CFC, LD, IL). The RTUs can be configured remotely or locally, on-line or off-line, and from RTU to RTU, or PC to RTU. The Binding (or alternatively Dual Binding) Protocol and the two Ethernet ports of the RTU32 provide the ability to obtain fast and event based redundancy communication for applications that require high levels of system reliability. We take advantage of today’s network technology by employing TCP/IP and event driven communication to optimise network bandwidth. This feature reduces network loading and increases data integrity for both centralised and distributed configurations.

RTU32 Offers
